VP-439 - Using the Embedded Web Pages

6.3 The Device Settings Page

The device Settings window (Figure 8) lets you upgrade the firmware and set the

Ethernet parameters.

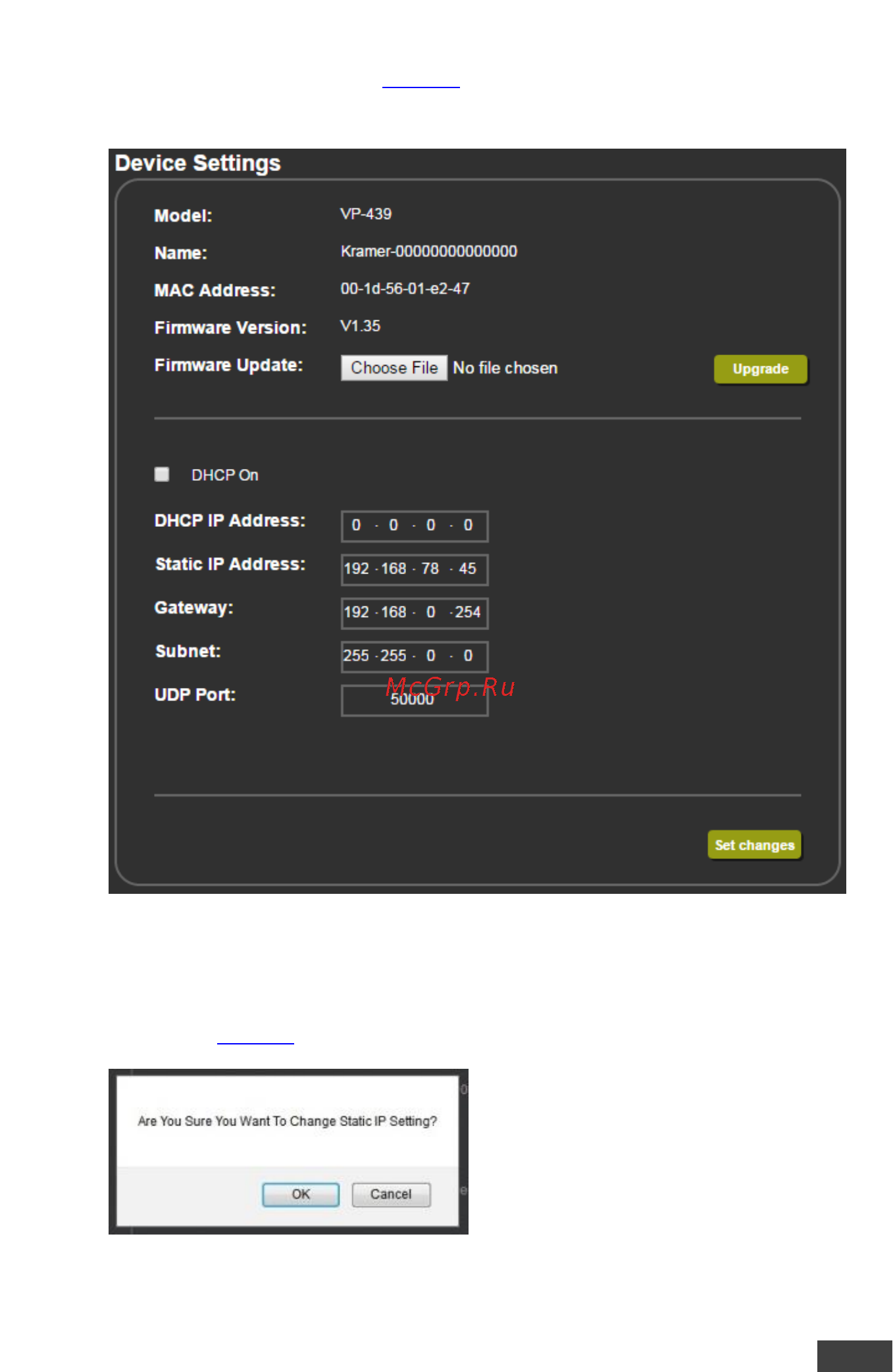

Figure 8: The Device Settings Page

Any change in the device settings requires confirmation, as illustrated in the

example in Figure 9.

Figure 9: The Device Settings Page – Static IP Confirmation
