VP-439 - Using the Embedded Web Pages

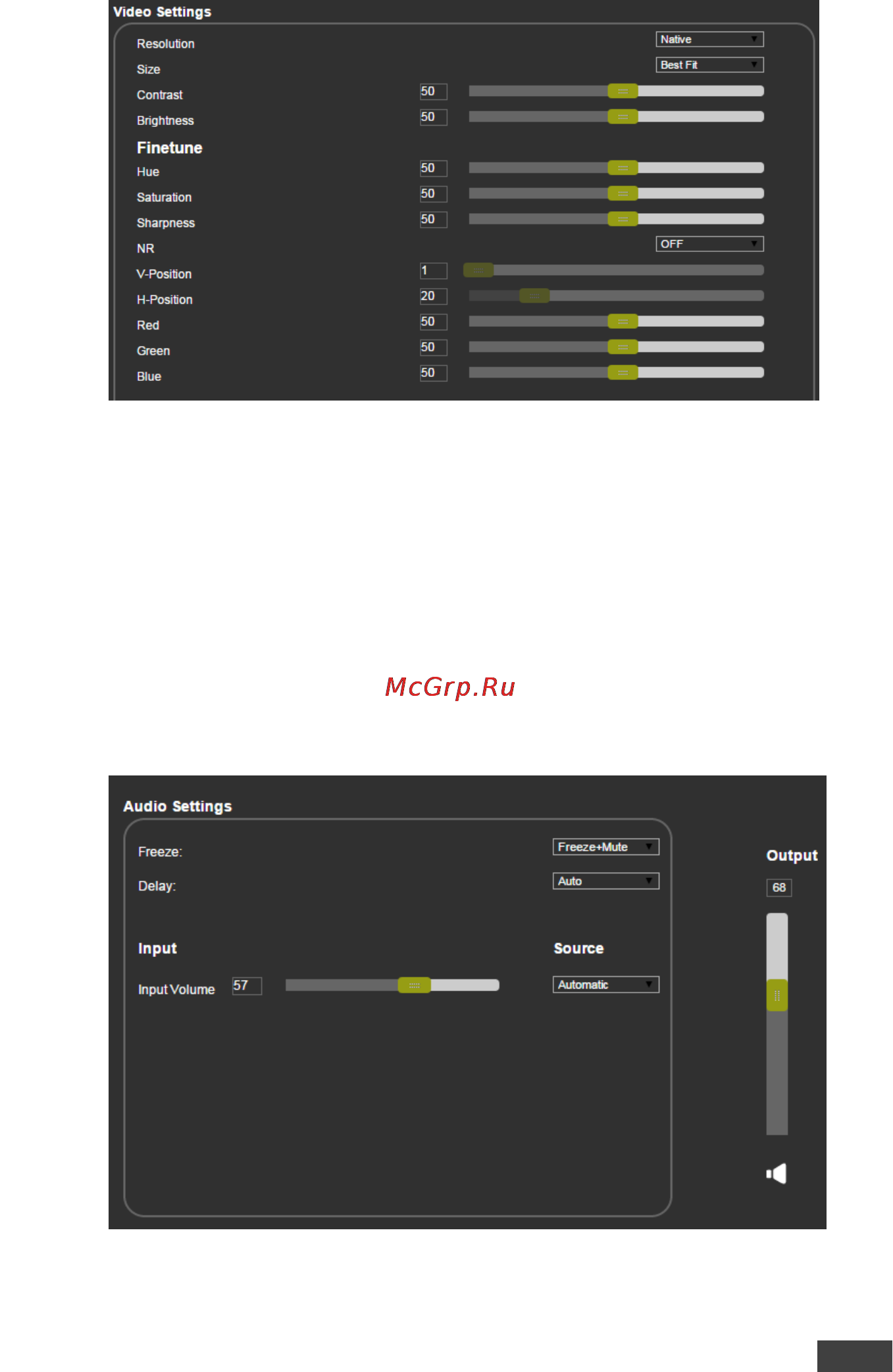

Figure 14: The Video Settings Page

The output settings, include the Resolution and Size, the Finetune items (which

are enabled for VGA inputs), and the picture settings.

6.5 The Audio Settings Page

The audio settings page lets you define the input audio level separately for each

input and the output level, you can set the Freeze state, the Delay and for the

HDMI input set the audio source (automatic, analog or embedded).

Figure 15: The Audio Settings Page
