Kramer VP-439 [23/52] The input select page

VP-439 - Using the Embedded Web Pages

6.2 The Input Select Page

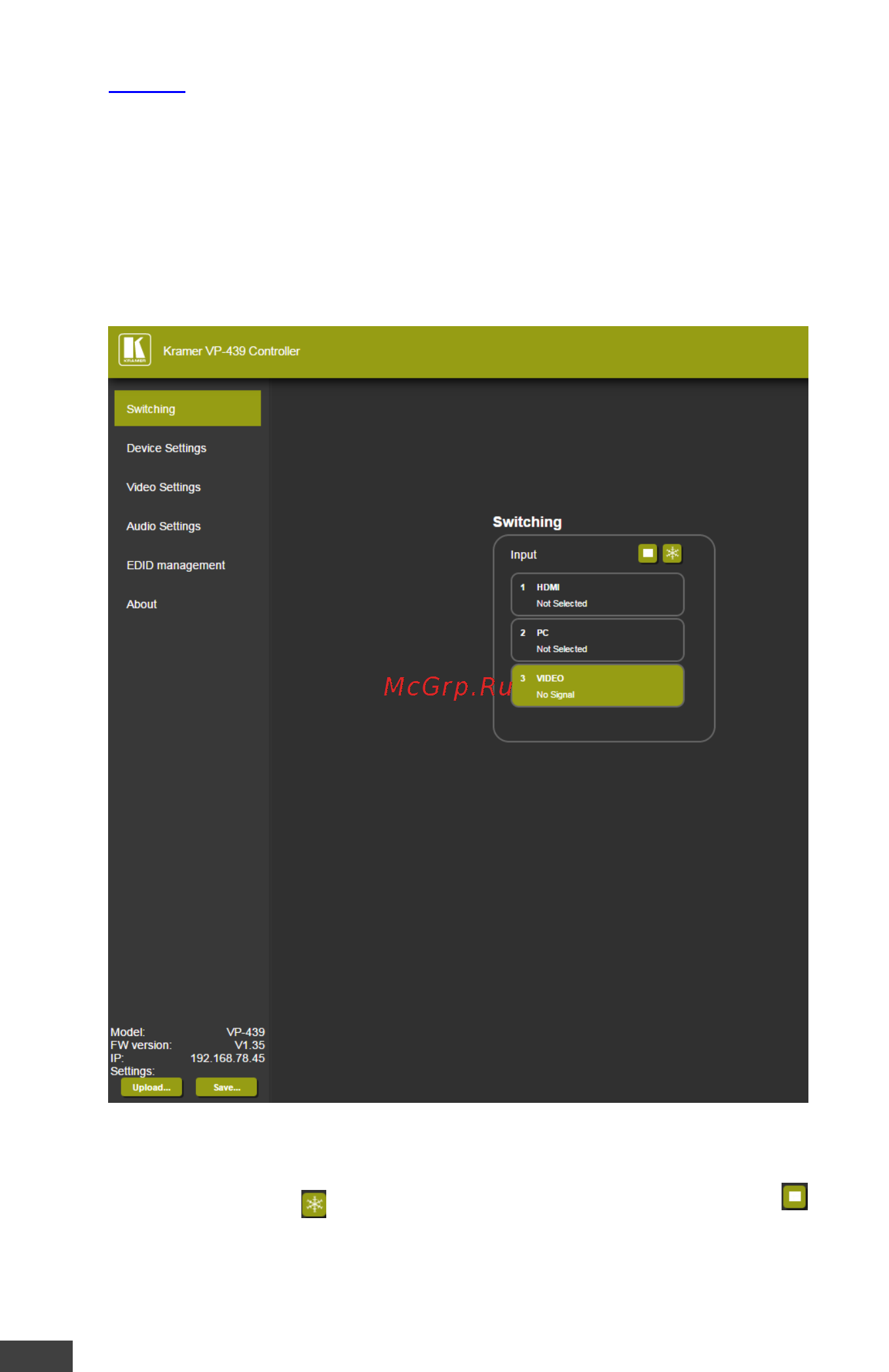

Figure 7 shows the Input Select page that is also the first Web page. The column

on the left shows the Input Select page selected and below a list of all the other

available Web pages.

The model name, FW version and IP number appear on the lower left side of the

main page. The lower part of the screen lets you save the settings and upload a

saved setting.

Figure 7: The Input Select Page

Use the freeze icon ( ) to freeze a selected input and the blank button ( ). Use
