Kramer VP-439 [20/52] Connecting the ethernet port via a network hub or switch

VP-439 - Operating and Controlling the VP-439

6. Select Use the following IP Address for static IP addressing and fill in the

details as shown in Figure 6.

For TCP/IPv4 you can use any IP address in the range 192.168.1.1 to

192.168.1.255 (excluding 192.168.1.39) that is provided by your IT

department.

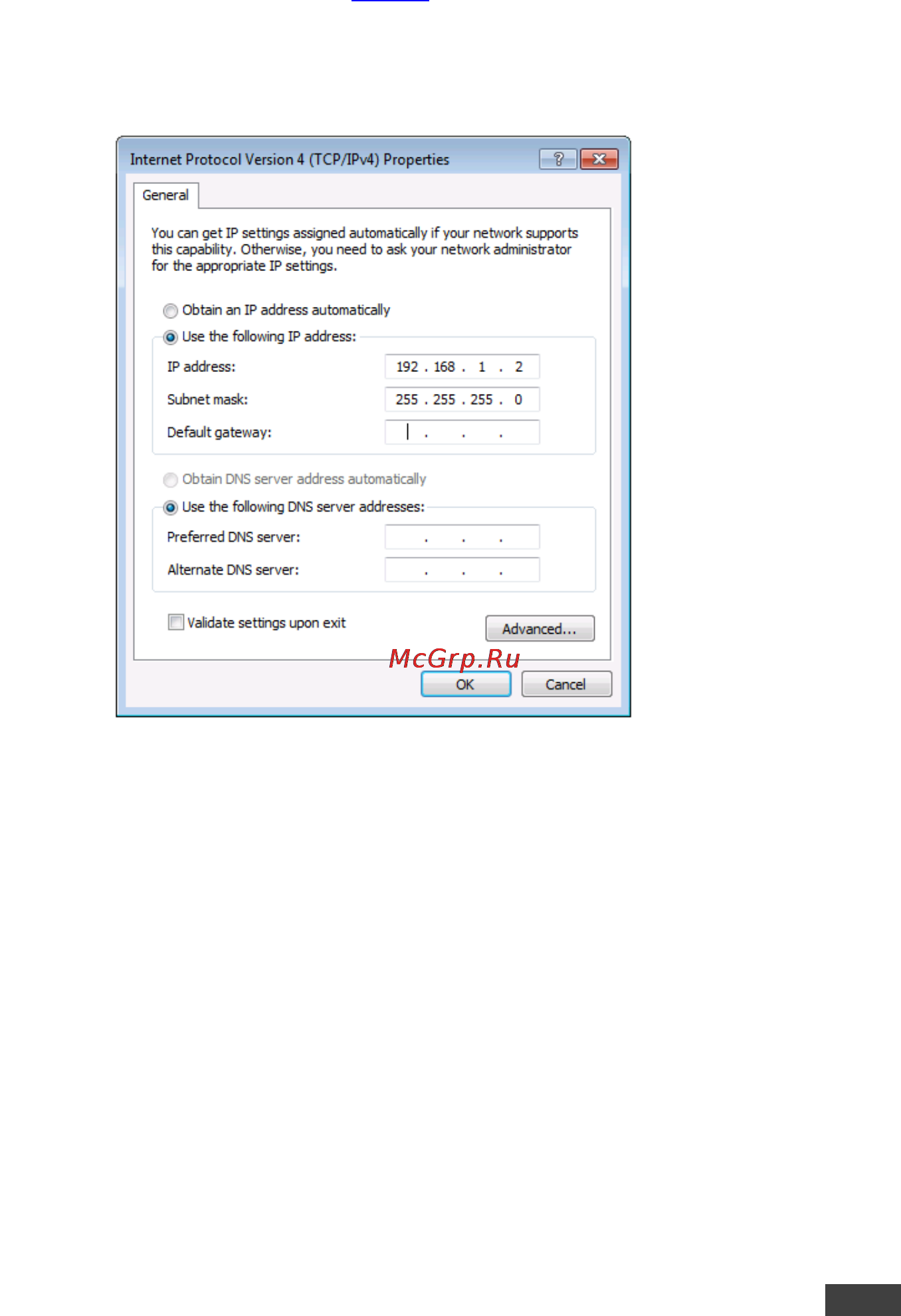

Figure 6: Internet Protocol Properties Window

7. Click OK.

8. Click Close.

5.4.2 Connecting the Ethernet Port via a Network Hub or Switch

You can connect the Ethernet port of the VP-439 to the Ethernet port on a

network hub or using a straight-through cable with RJ-45 connectors.

5.4.3 Configuring the Ethernet Port

You can set the Ethernet parameters via the embedded Web pages.
