VP-439 - Using the Embedded Web Pages

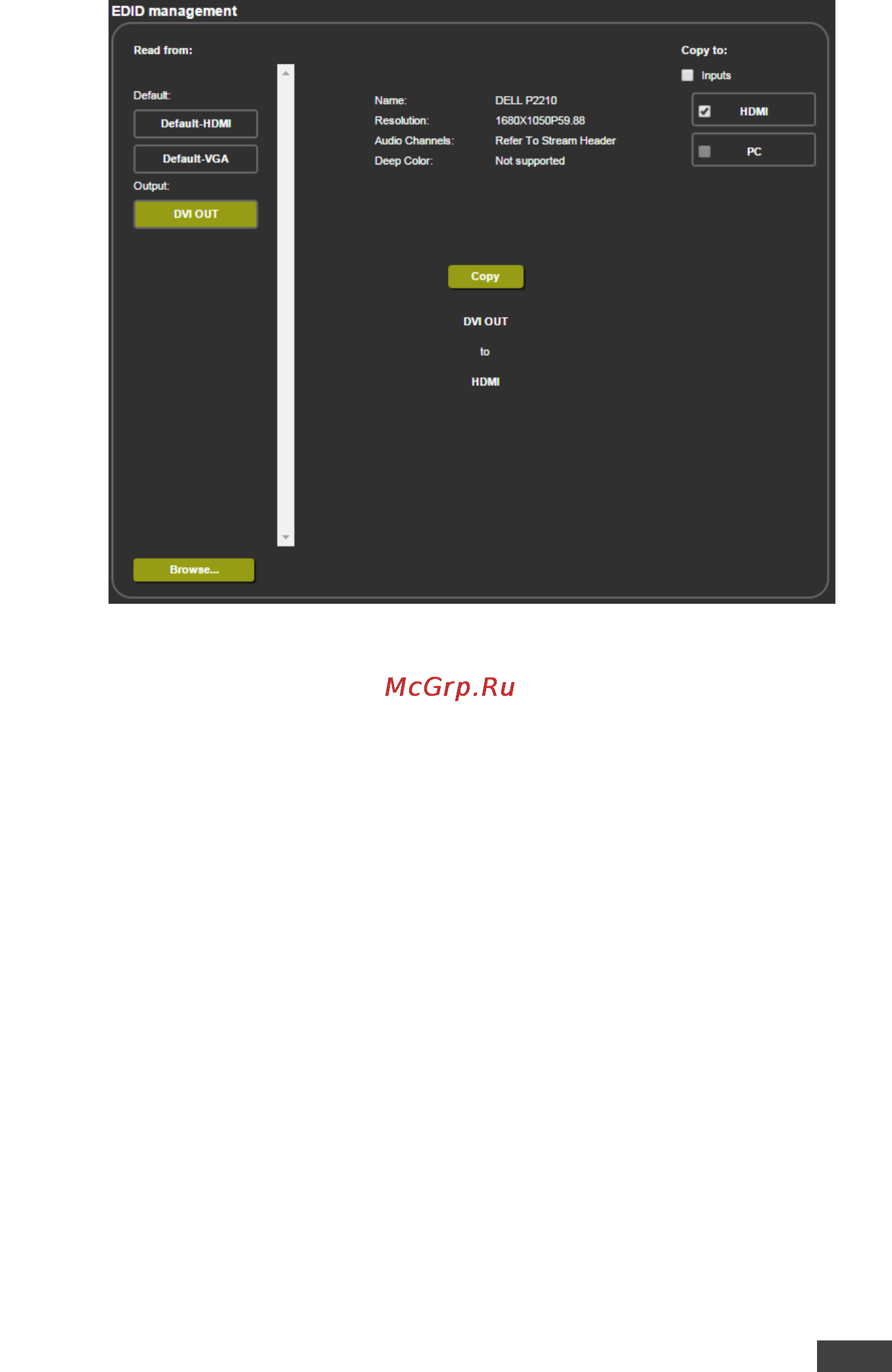

Figure 17: The EDID Page – Copying the Output

The EDID page displays the machine name, selected resolution, the audio

channels and deep color support.

After clicking the Copy button, the EDID page shows the copy EDID results:
