VP-440 - Controlling the VP-440
17
17
The Local Area Connection Properties window for the selected network
adapter appears as shown in Figure 8.

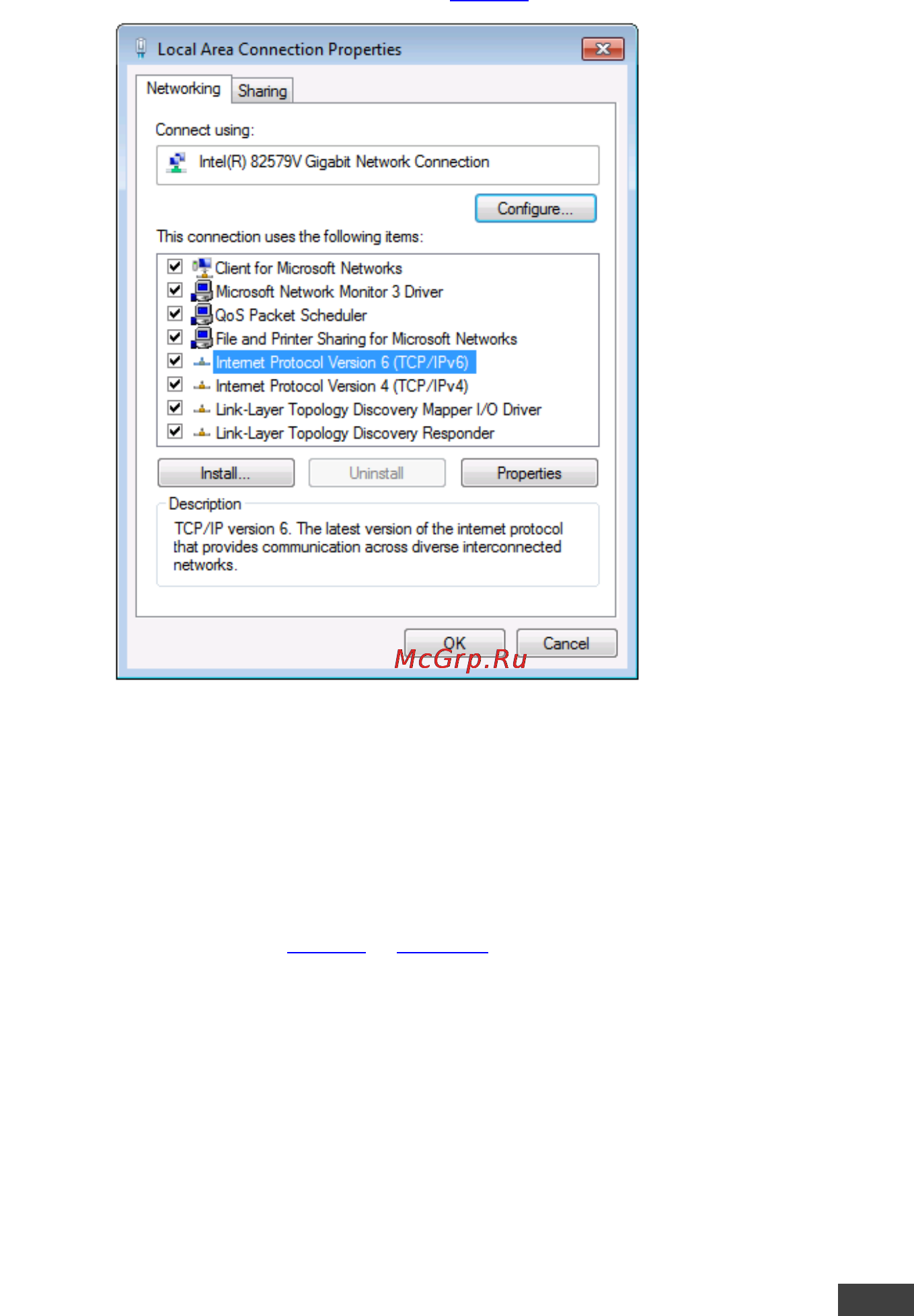

Figure 8: Local Area Connection Properties Window
4. Highlight either Internet Protocol Version 6 (TCP/IPv6) or Internet Protocol
Version 4 (TCP/IPv4) depending on the requirements of your IT system.
5. Click Properties.
The Internet Protocol Properties window relevant to your IT system appears
as shown in Figure 9 or Figure 10.
