4. Using the Viewer

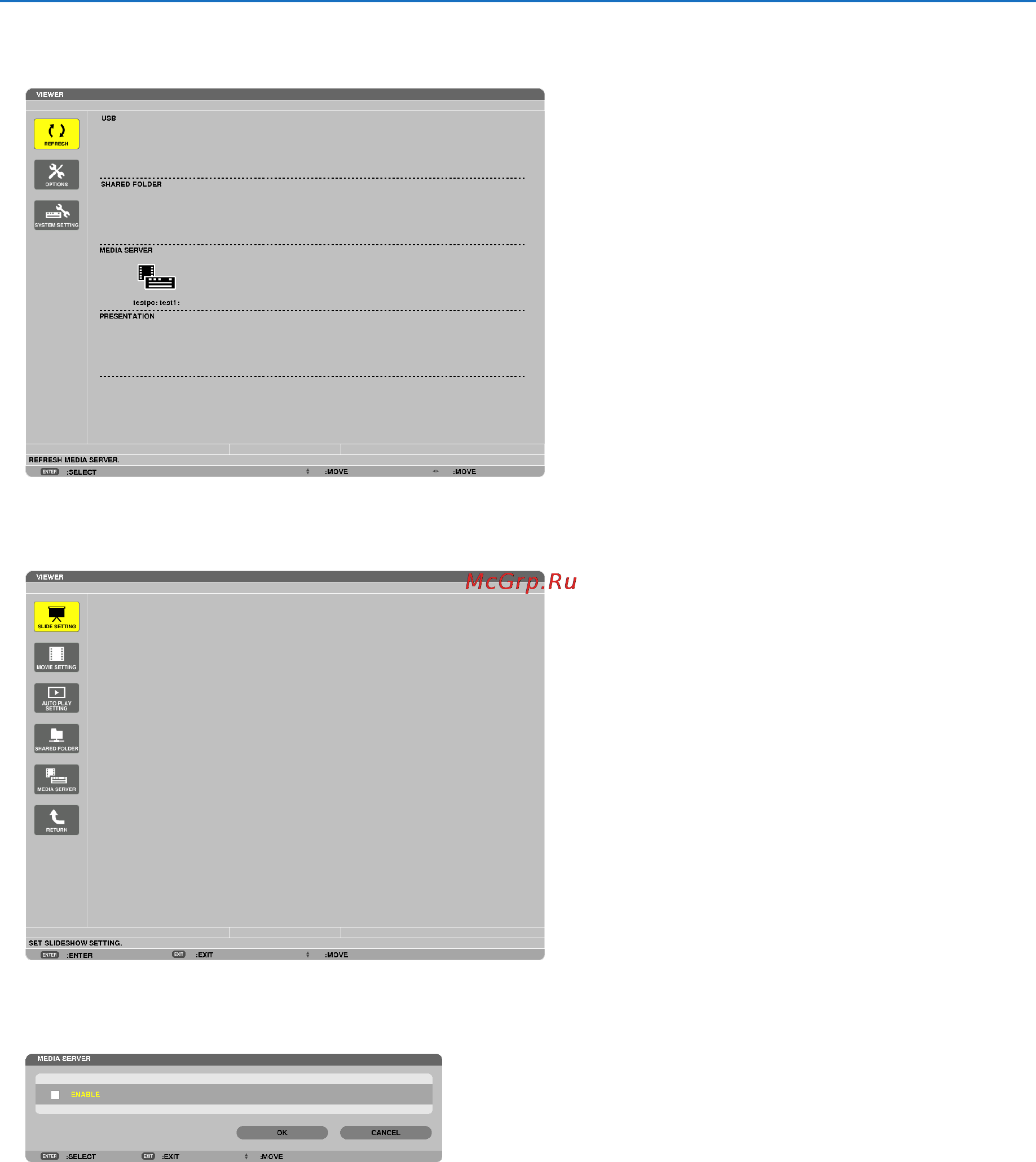

Disconnecting the projector from the media server
1. DisplaytheOPTIONSmenu.
Press the ▼buttontoselectthe[OPTIONS]iconandselecttheENTERbutton.
2. DisplaytheMEDIASERVERsettingscreen.
Press the ▼buttontoselecttheMEDIASERVERiconandpresstheENTERbutton.
3. Disabletheconnection.
PresstheENTERbuttontoclearthecheckmarktodisabletheconnection.
Press the ▼buttontoselect[OK]andpresstheENTERbuttontoclosetheMEDIASERVERsettingscreen.
