Nec PH1000U [33/244] Projecting an image basic operation
![Nec PH1000U [33/244] Projecting an image basic operation](/views2/1015907/page33/bg21.png)
19
2. Projecting an Image (Basic Operation)

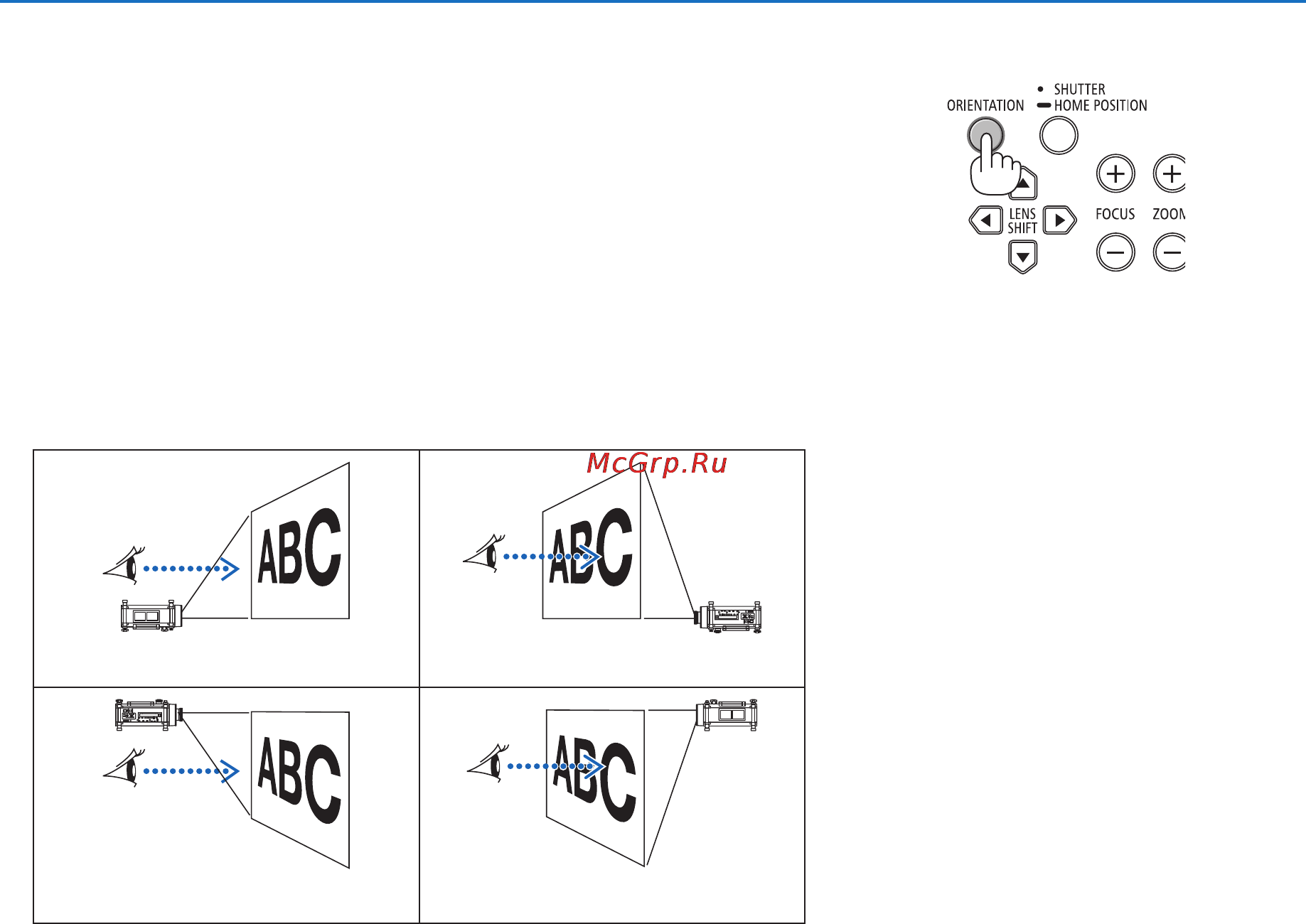

If the projected image is inverted or upside down
1 PresstheORIENTATIONbutton.
The[ORIENTATION]screenwillbedisplayed.
2 Pressagaintoselectacorrectorientation.
EachtimetheORIENTATIONbuttonispressed,thechoiceyouhighlight
willbechanged.
DESKTOPFRONT DESKTOPREAR
CEILINGFRONT CEILINGREAR
3 StoppressingtheORIENTATIONbutton.
Themenuwillbeclosedandtheprojectedimagewillbedisplayedin
thecorrectorientationyouselect.
