61
3. Convenient Features
ProjectingtheImagewithNetworkProjector
1. Click[Start]fromthedesktopofWindows7.
2. Click[AllPrograms].
3. Click[Accessories].
4. Click[ConnecttoaNetworkProjector].
Whenthe[PermissionConnecttoaNetworkProjector]windowappears,click[Yes.].

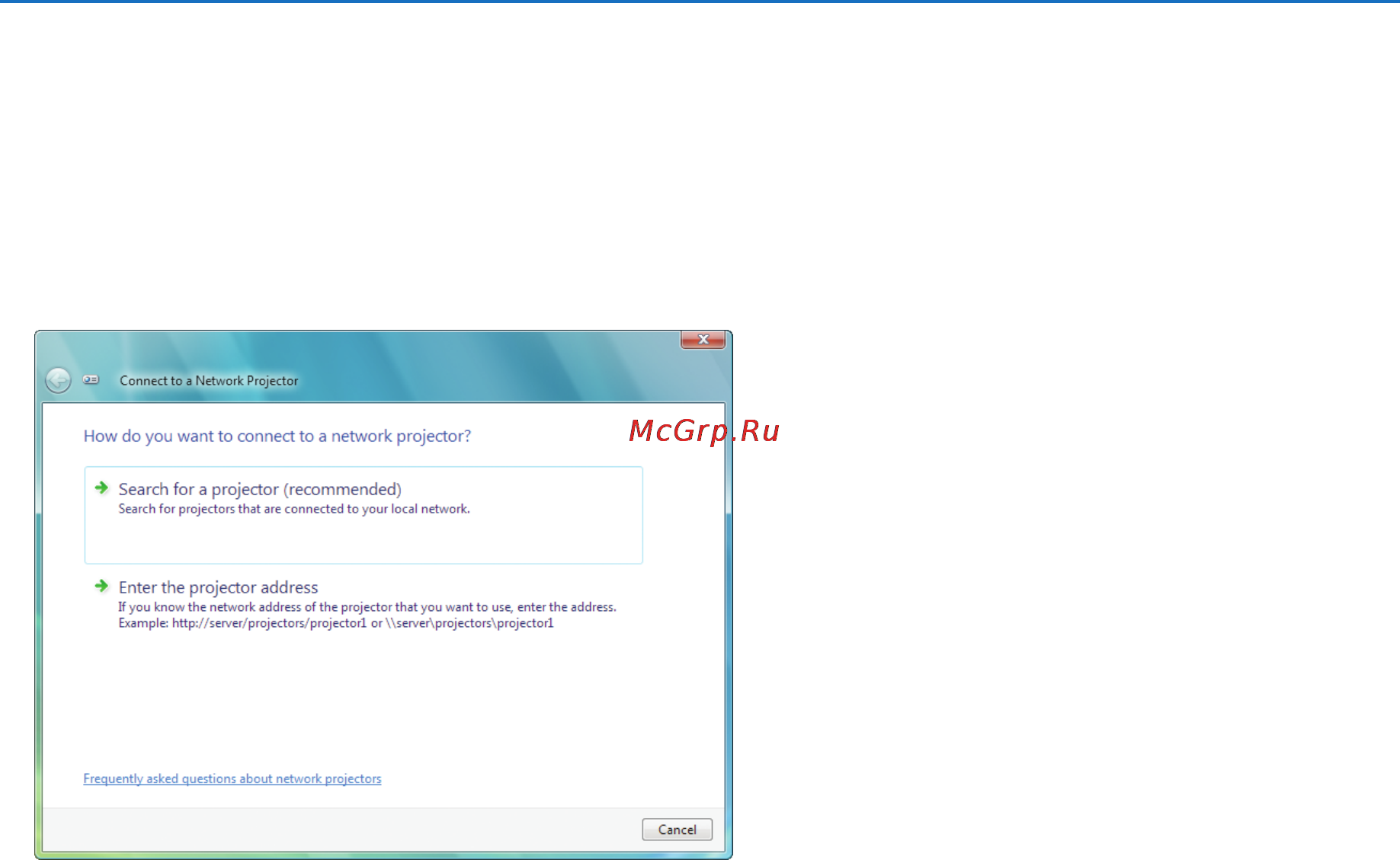

The“ConnecttoaNetworkProjector”windowappears.
5. Click[→Searchforaprojector(recommended)].
Inthe“Availableprojectors”box,“PH1000Series”isdisplayed.
6. Click[PH1000Series].
Themessage“Enterthepasswordfortheprojectorthatyouselected.”isdisplayedatthebottomofthewindow.
