180
7. Maintenance

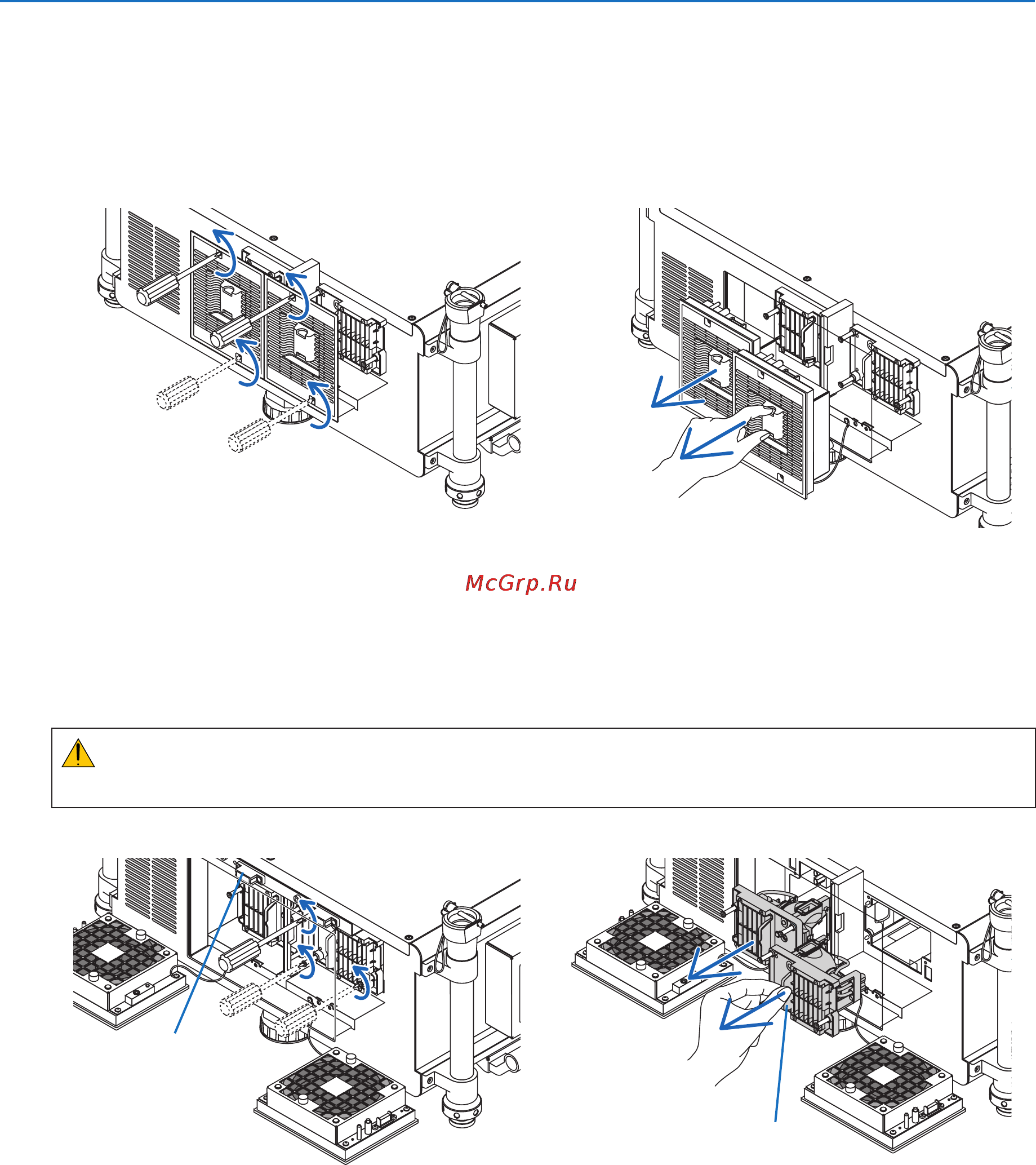

To replace the lamp:
1. Removethelampcover.
(1)Loosenthetwolampcoverscrews.
•Thelampcoverscrewisnotremovable.
(2)Pullthelampcovertowardsyouandremoveit.
2. Removethelamphousing.
(1)Loosenthethreescrewssecuringthelamphousinguntilthephillipsscrewdrivergoesintoafreewheelingcondi-
tion.
•Thethreescrewsarenotremovable.
•Donottouchtheexhaustfanpowerconnectors.
(2)Removethelamphousingbyholdingit.
CAUTION:
Makesurethatthelamphousingiscoolenoughtohandlebeforeremovingit.
Exhaust fan power
connector
Handle
