2. Projecting an Image (Basic Operation)

Focus

Applicablelens:NP26ZL/NP27ZL/NP28ZL/NP29ZL

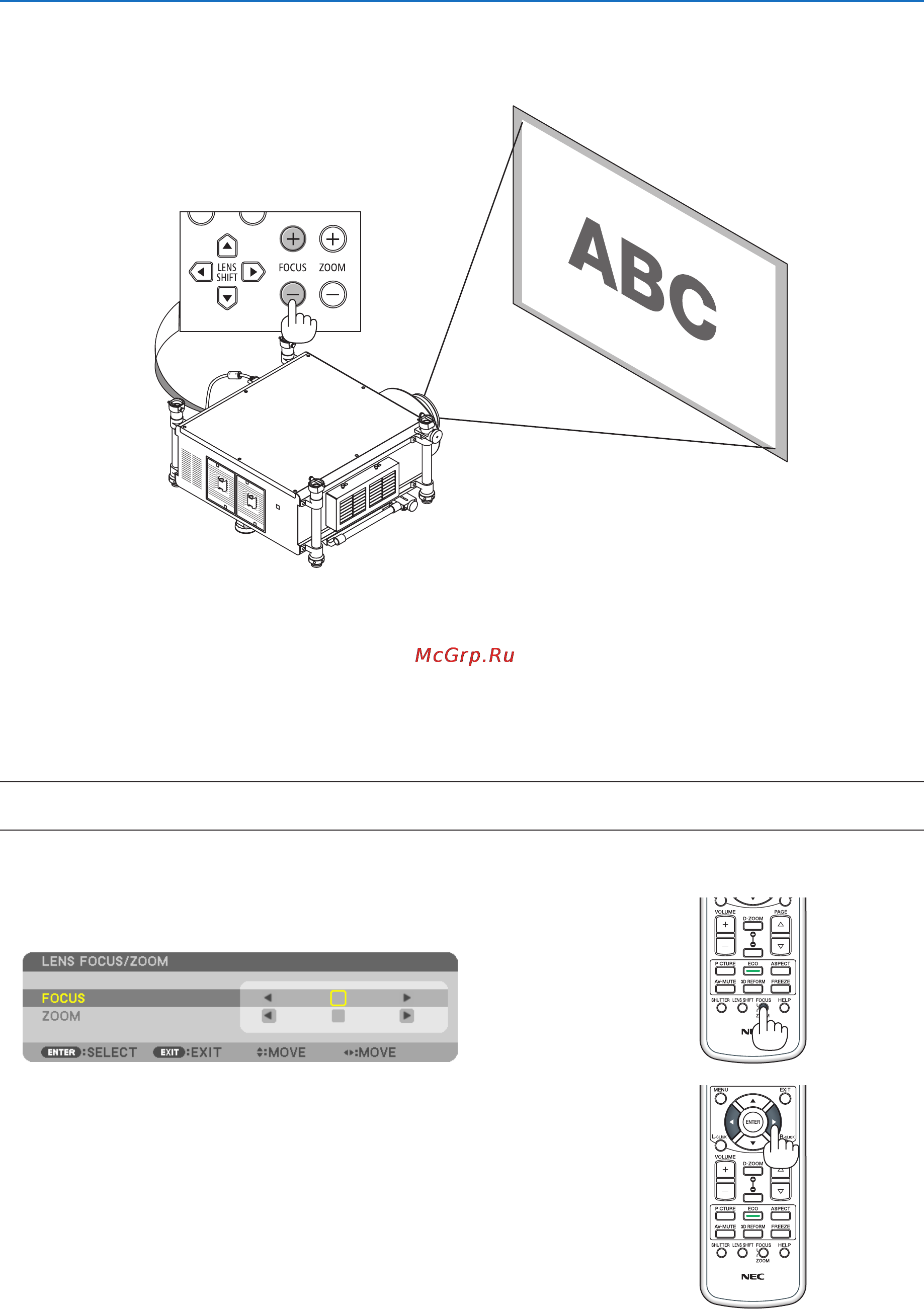

UsetheFOCUS(+)or(−)buttonontheprojectorcabinettoobtainthebestfocus.

TIP:Toobtainthebestfocus,performthefollowing(forxedinstallation)

Preparation:Warmuptheprojectorforonehour.

1.UsetheFOCUS+/−buttonstomakesureyouobtainthebestfocus.Ifyoudonot,movetheprojectorbackandforth.

2.Selectthe[TESTPATTERN]fromthemenuanddisplaythetestpattern.(→ page 100)

3.KeeppressingtheFOCUS−buttonuntilthegridofthetextpatternismadeinvisible.

4.KeeppressingtheFOCUS+buttonuntilyouobtainthebestfocus.

If you adjust beyond the best focal point, go back to step 3 and repeat the procedures.

NOTE:

• UsethefocusringtoobtainthebestfocusontheNP25FLlens.

Adjusting with buttons on the remote control

1. PresstheFOCUS/ZOOMbuttontodisplaytheadjustmentwin-

dow.

2. Usethe◀ or ▶buttontoadjustthefocus.

3. Press the FOCUS/ZOOM buttonagain to closethe adjustment

window.
