3. Convenient Features
Prepareacommerciallyavailablewirelesskeyboard(USlayoutversion).

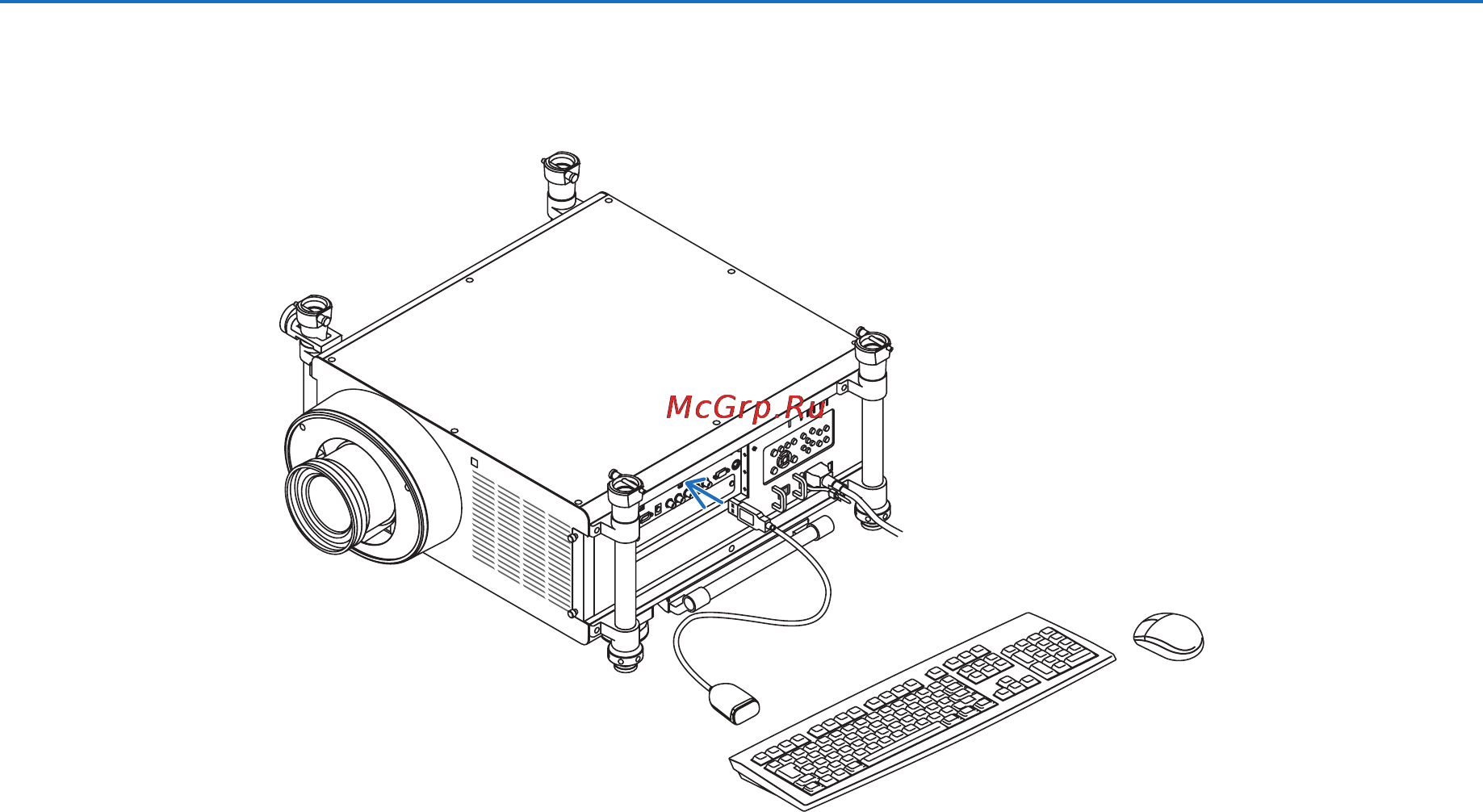

ConnecttheUSBwirelessreceivertotheUSBport(TypeA)oftheprojector.Makeallnecessarysettingsforyour
wirelesskeyboardandmouse.
