Asus rog rampage iv black edition/ac4 [116/222] Chapter 3

3-26

Chapter 3: BIOS setup

Chapter 3

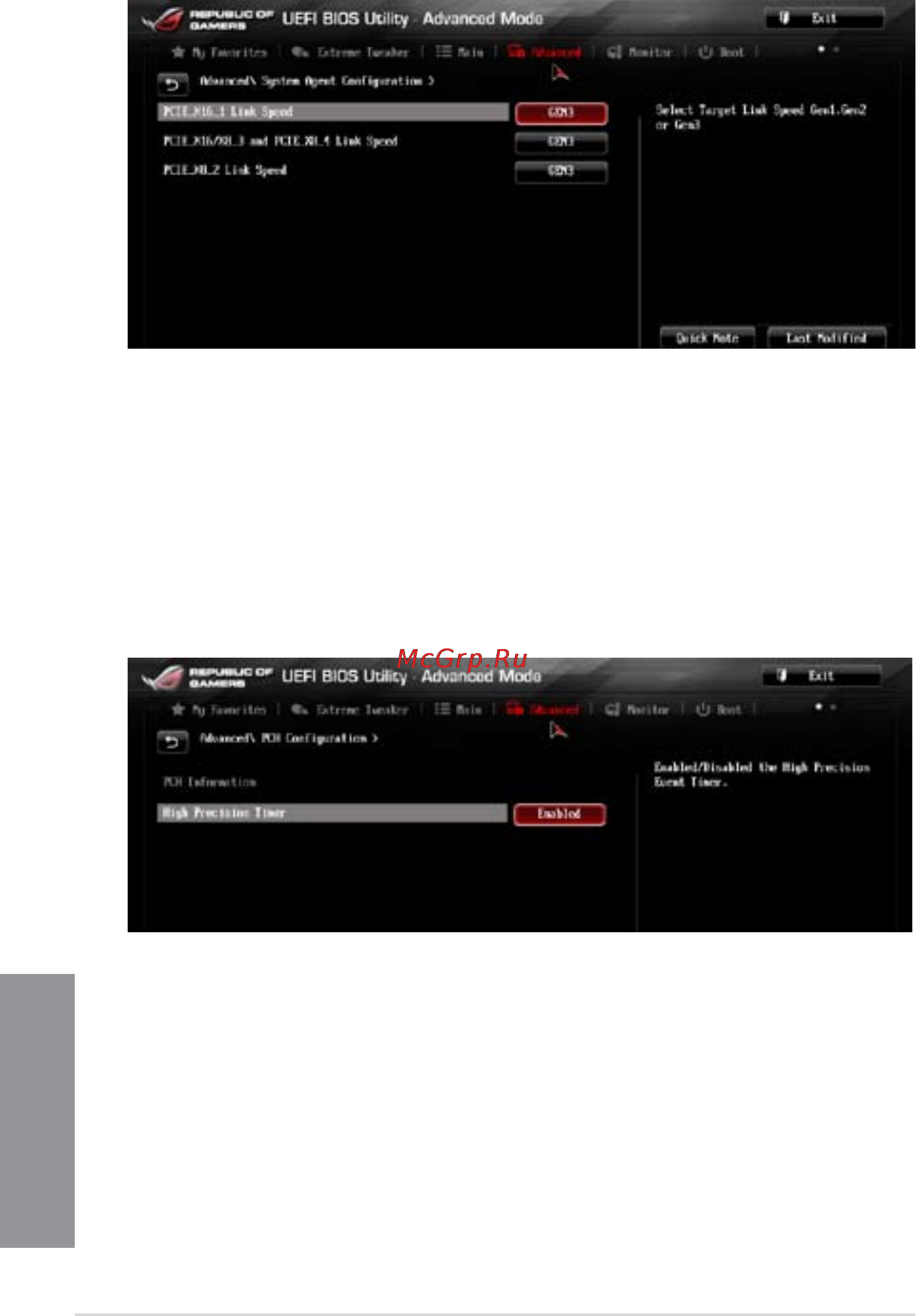

3.6.2 System Agent Conguration

PCIE_X16_1 / PCIE_X16/8_3 and PCIE_X8_4 / PCIE_X8_2 Link Speed [GEN3]

Allows you to select the target link speed.

Conguration options: [Auto] [Gen1] [Gen2] [Gen3]

3.6.3 PCH Conguration

High Precision Timer [Enabled]

Allows you to enable or disable the High Precision Event Timer.

Conguration options: [Disabled] [Enabled]
