ASUS RAMPAGE IV BLACK EDITION
4-15
Chapter 4

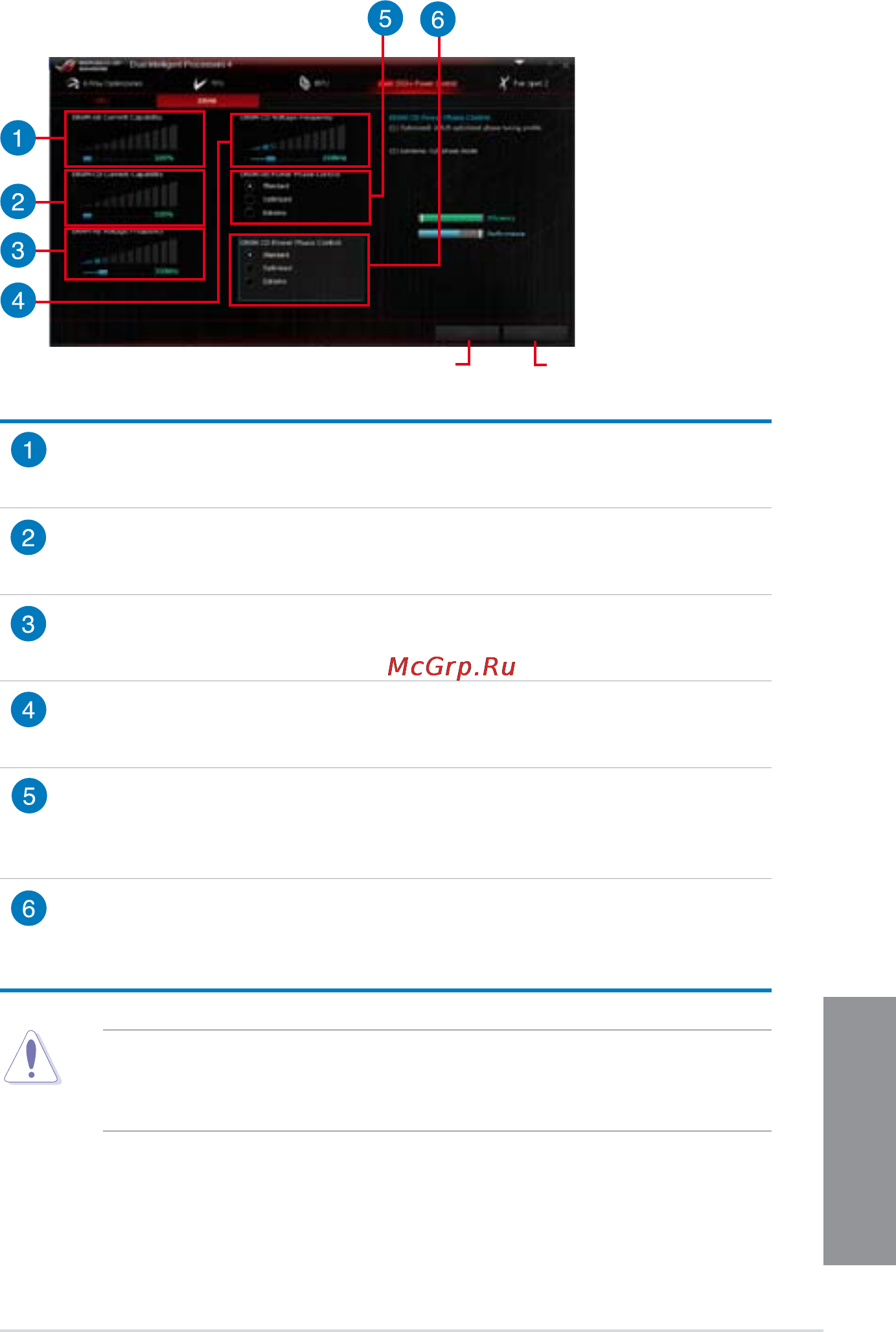

Adjusting the DRAM Power
DRAM-AB Current Capability
Higher value to DRAM slots A and B brings a wider total power range and extends
the overclocking frequency range simultaneously.
DRAM-CD Current Capability
Higher value to DRAM slots C and D brings a wider total power range and extends
the overclocking frequency range simultaneously.
DRAM-AB Voltage Frequency
Allows you to adjust the DRAM switching frequency of DRAM slots A and B to
stabilize the system or to increase the overclocking range.
DRAM-CD Voltage Frequency
Allows you to adjust the DRAM switching frequency of DRAM slots C and D to
stabilize the system or to increase the overclocking range.
DRAM-AB Power Phase Control
For DRAM slots A or B, select Extreme for full phase mode to increase system
performance or select Optimized for ASUS optimized phase tuning prole to
increase the DRAM power efciency.
DRAM-CD Power Phase Control
For DRAM slots C or D, select Extreme for full phase mode to increase system
performance or select Optimized for ASUS optimized phase tuning prole to
increase the DRAM power efciency.
Click or tap to
apply the changes
Click or tap to undo
the changes
• The actual performance boost may vary depending on your CPU specication.
• Ensure that the cooling modules are properly installed in your motherboard to monitor
the thermal conditions.
