4-4
Chapter 4: Software support
Chapter 4
4.3 Software information
Most of the applications in the support DVD have wizards that will conveniently guide you
through the installation. View the online help or readme le that came with the software
application for more information.
4.4 AI Suite 3
AI Suite 3 is an all-in-one interface that integrates several ASUS utilities and allows you to
launch and operate these utilities simultaneously.
Installing AI Suite 3
• Ensure that you have an Administrator account before installing AI Suite 3 in
Windows
®
7 or Windows
®
8 / 8.1 OS.
• To install the Wi-Fi-enabled features of AI Suite 3, ensure that you install the Wi-Fi
module and its latest driver from the bundled support DVD. To do this, go to Drivers
tab > ASUS Bluetooth 4.0 Wi-Fi Driver and follow the succeeding onscreen
instructions.
To install AI Suite 3 on your computer:
Windows
®
7 OS
1. Place the Support DVD into the optical drive.

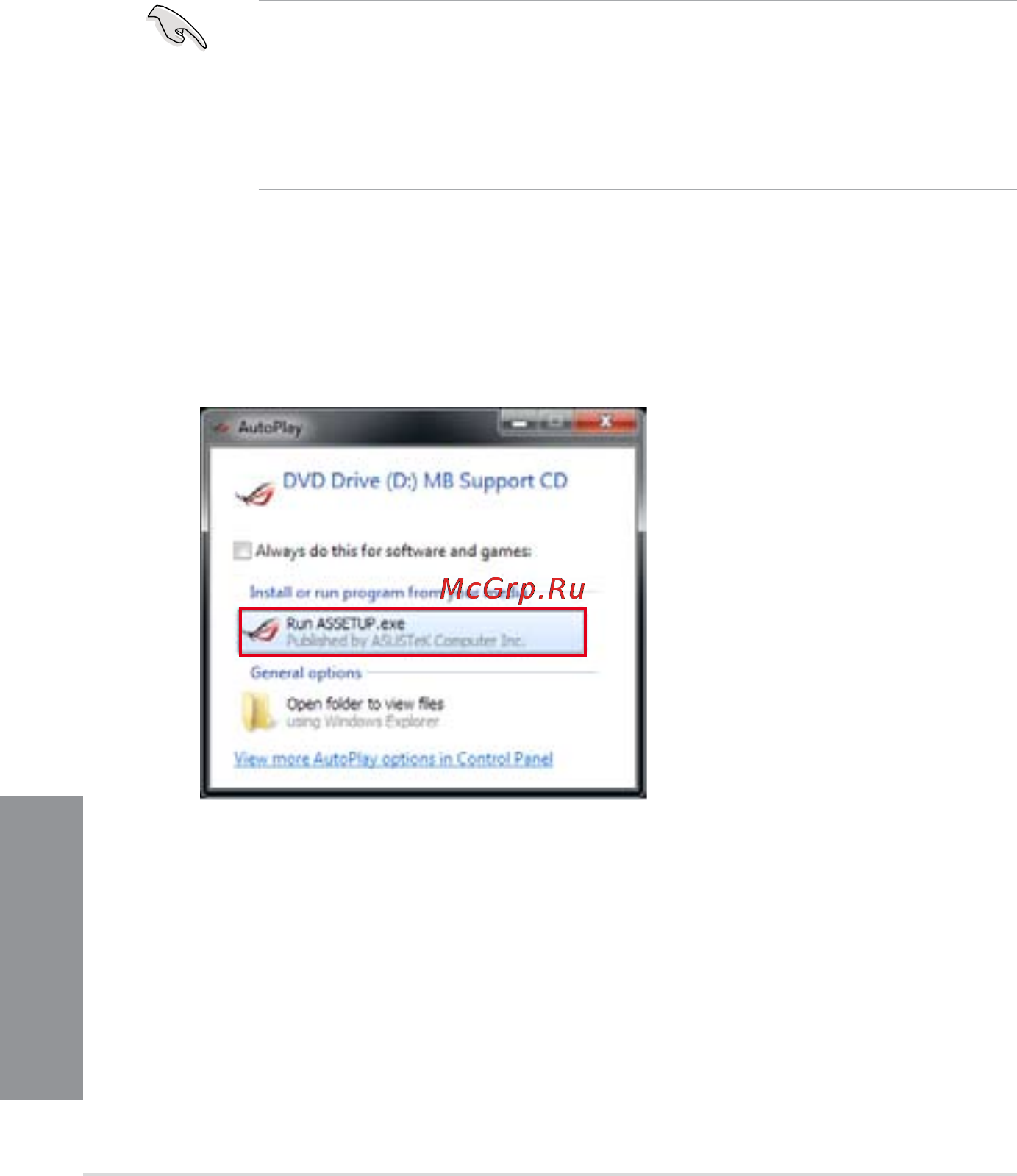

2. In the
AutoPlay dialog box, click Run ASSETUP.exe then select the Utilities tab.
3. From the Utilities tab, click AI Suite 3 then follow the succeeding onscreen
instructions.
