Asus rog rampage iv black edition/ac4 [46/222] Chapter 1

1-30

Chapter 1: Product introduction

Chapter 1

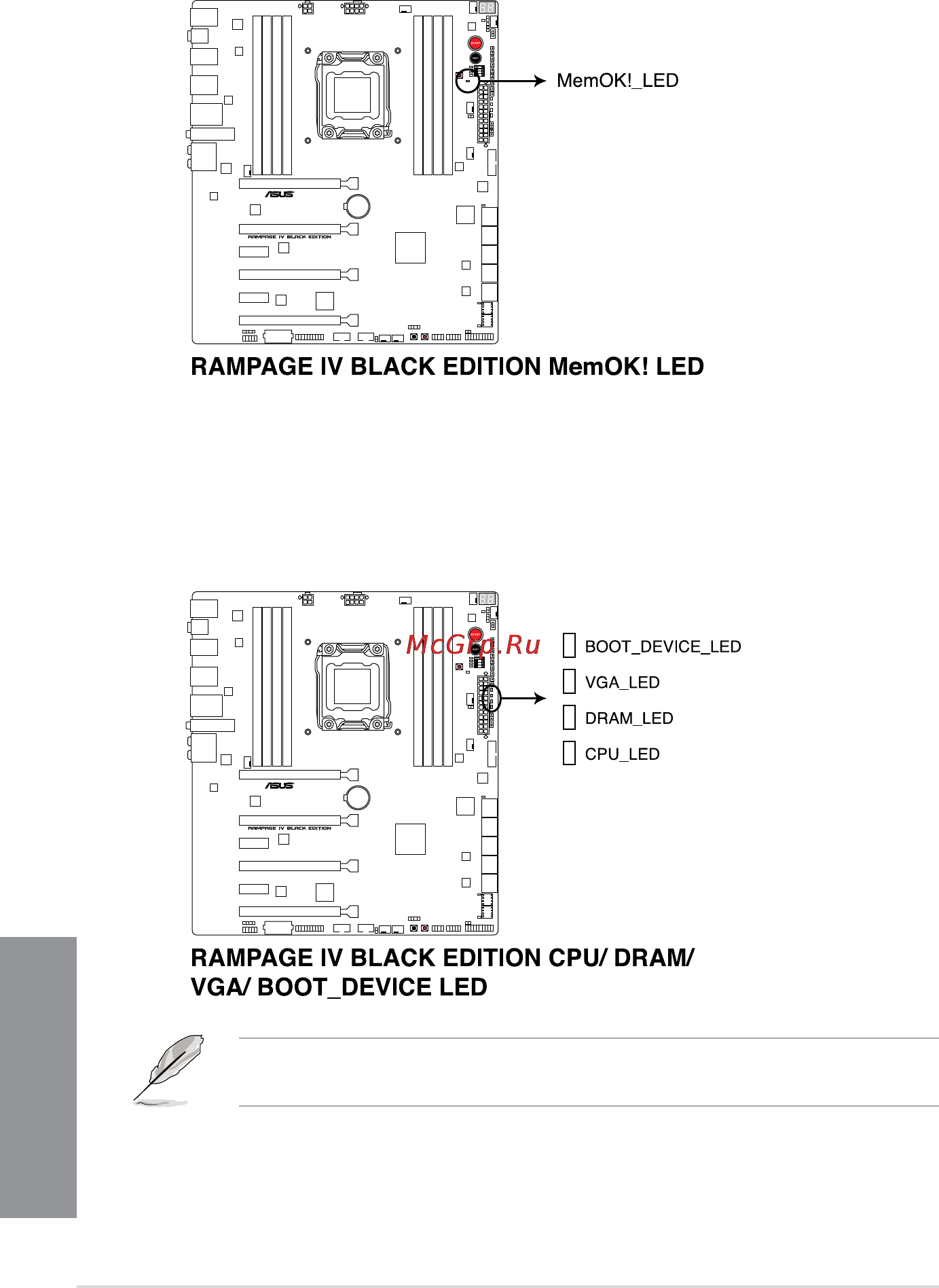

3. MemOK! LED

Blinking: Indicates that MemOK! is enabled before POST.

4. Q LED

Q LEDs check key components (CPU, DRAM, VGA card, and booting devices) in

sequence during motherboard booting process. If an error is found , the corresponding

LED will continue lighting until the problem is solved. This user-friendly design provides

an intuitive way to locate the root problem within seconds.

For more information about the MEMOK_LED and DRAM_LED, see the MemOK! button on

section 1.2.6 Onboard buttons and switches.
