Asus rog rampage iv black edition/ac4 [59/222] Chapter 1

ASUS RAMPAGE IV BLACK EDITION

1-43

Chapter 1

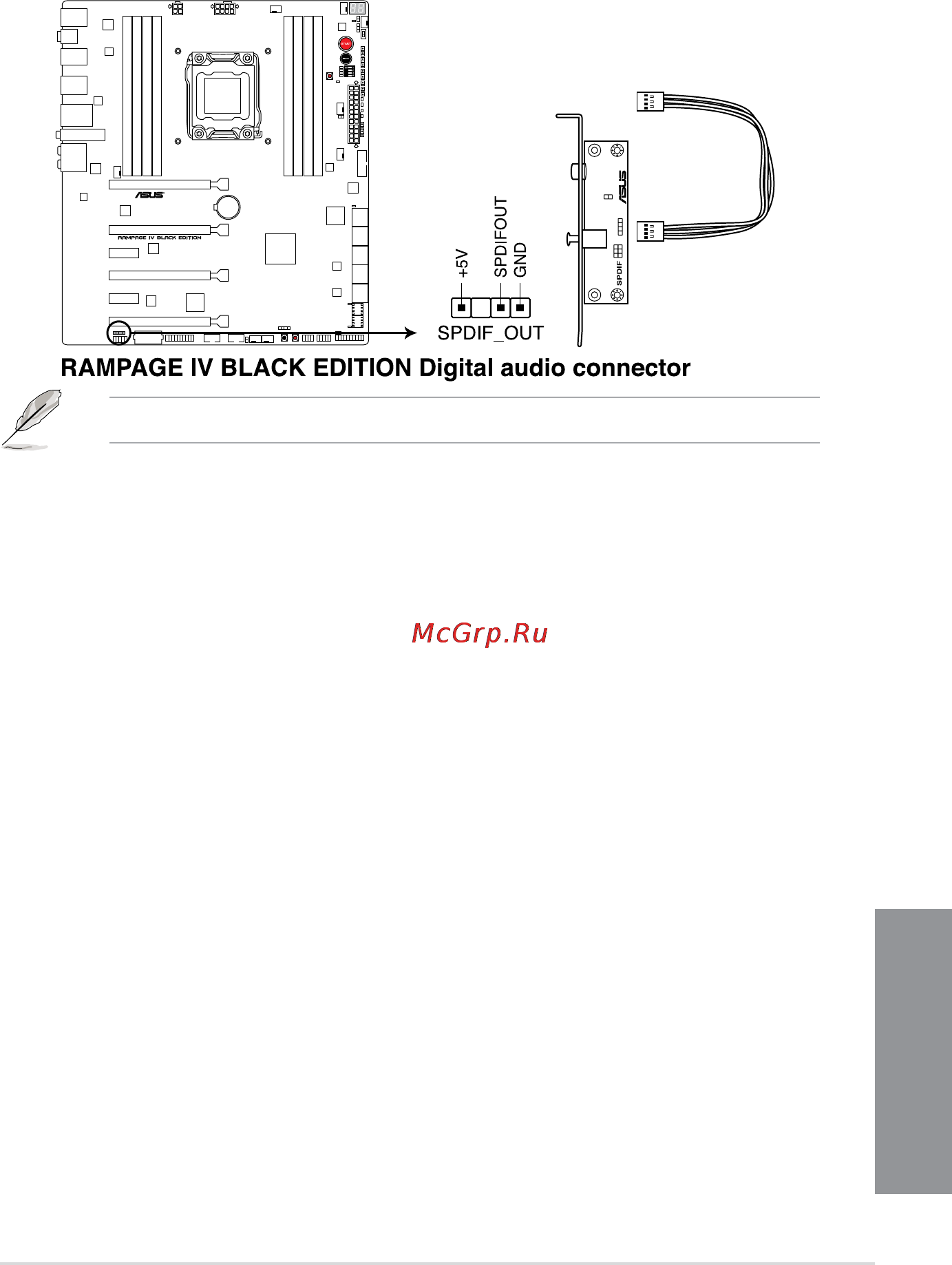

7. Digital audio connector (4-1 pin SPDIF_OUT)

This connector is for an additional Sony/Philips Digital Interface (S/PDIF) port(s).

Connect the S/PDIF Out module cable to this connector, then install the module to a

slot opening at the back of the system chassis.

The S/PDIF module is purchased separately.
