Asus rog rampage iv black edition/ac4 [72/222] Chapter 2

2-6

Chapter 2: Basic Installation

Chapter 2

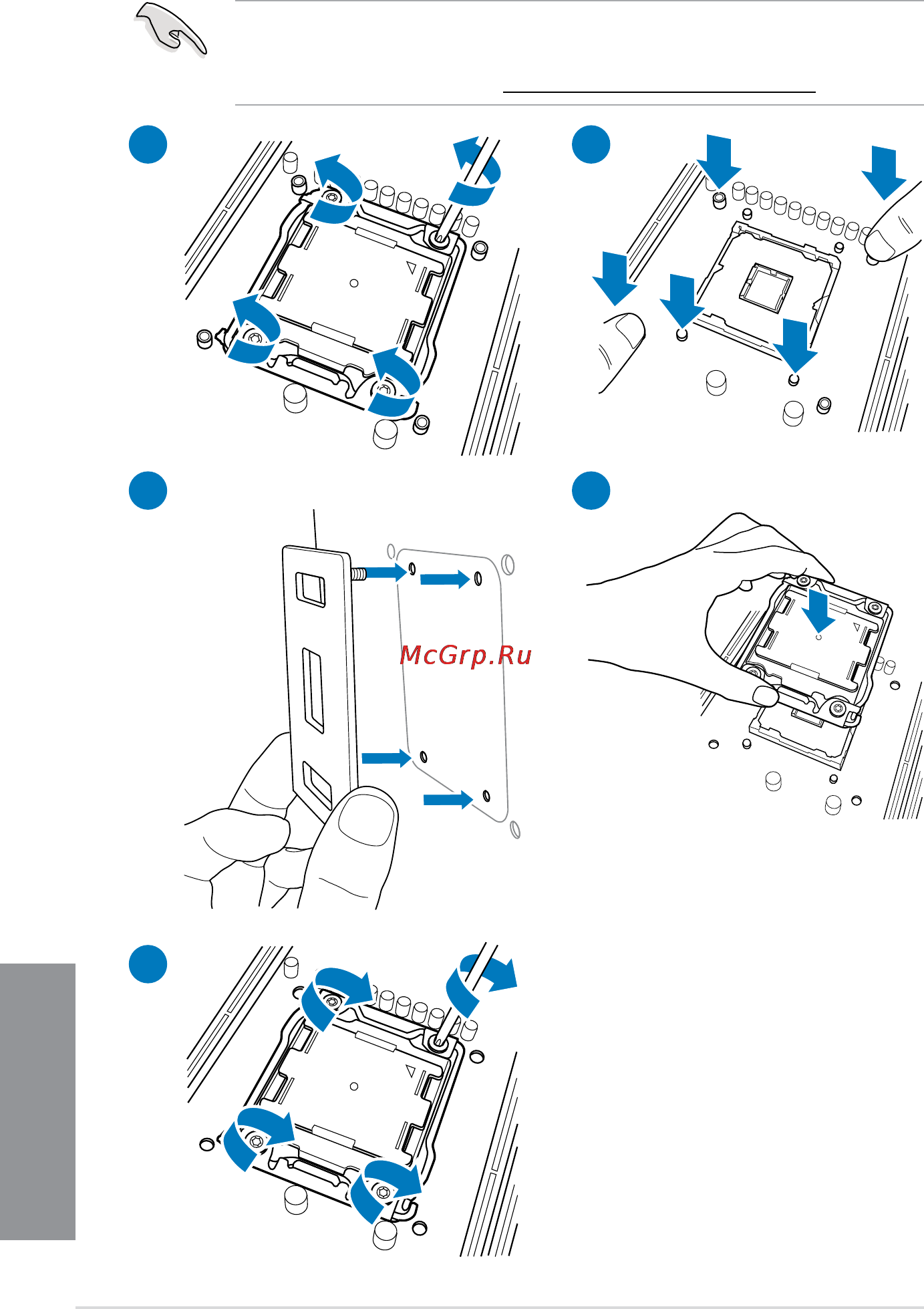

To replace the LGA2011 CPU pad (X-Socket)

• The X-Socket is a unique ROG feature that allows user to use their LGA 1366 cooler

on the LGA 2011 motherboard.

• For the detailed QVL list, visit

http://event.asus.com/2011/rog/X-Socket/.

1 2

3 4
