3-30
Chapter 3: BIOS setup
Chapter 3

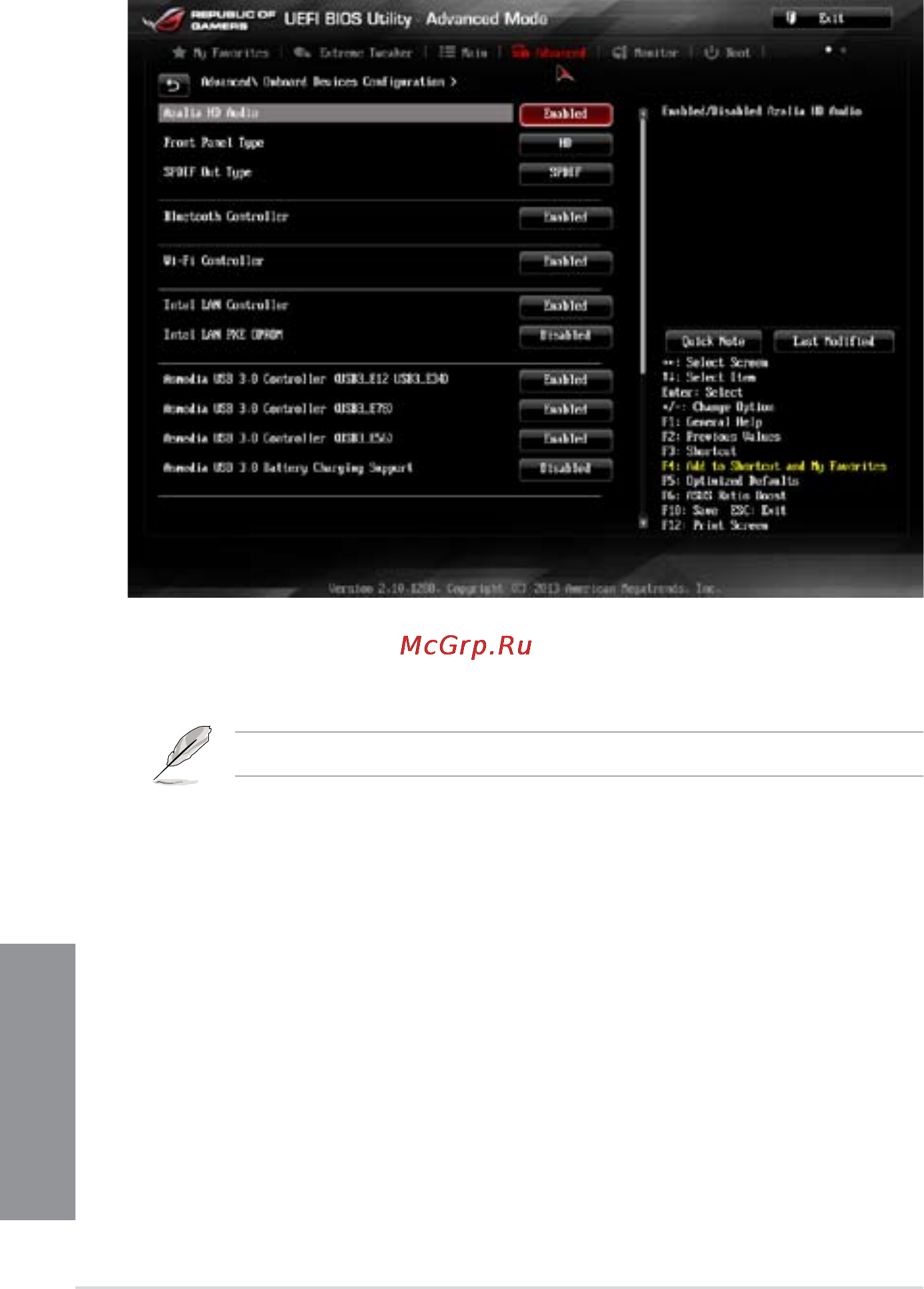

3.6.6 Onboard Devices Conguration
Scroll down to view the other BIOS items.
Azalia HD Audio [Enabled]
[Disabled] Disables the controller.
[Enabled] Enables the High Denition Audio Controller.
The following two items appear only when you set the Azalia HD Audio item to [Enabled].
Front Panel Type [HD]
Allows you to set the front panel audio connector (AAFP) mode to legacy AC97 or high-
denition audio depending on the audio standard that the front panel audio module
supports.
[HD] Sets the front panel audio connector (AAFP) mode to high
denition audio.
[AC97] Sets the front panel audio connector (AAFP) mode to legacy
AC97
SPDIF Out Type [SPDIF]
[SPDIF] Sets to [SPDIF] for SPDIF audio output.
[HDMI] Sets to [HDMI] for HDMI audio output.
•
•
