Asus rog rampage iv black edition/ac4 [193/222] Chapter 4

ASUS RAMPAGE IV BLACK EDITION

4-47

Chapter 4

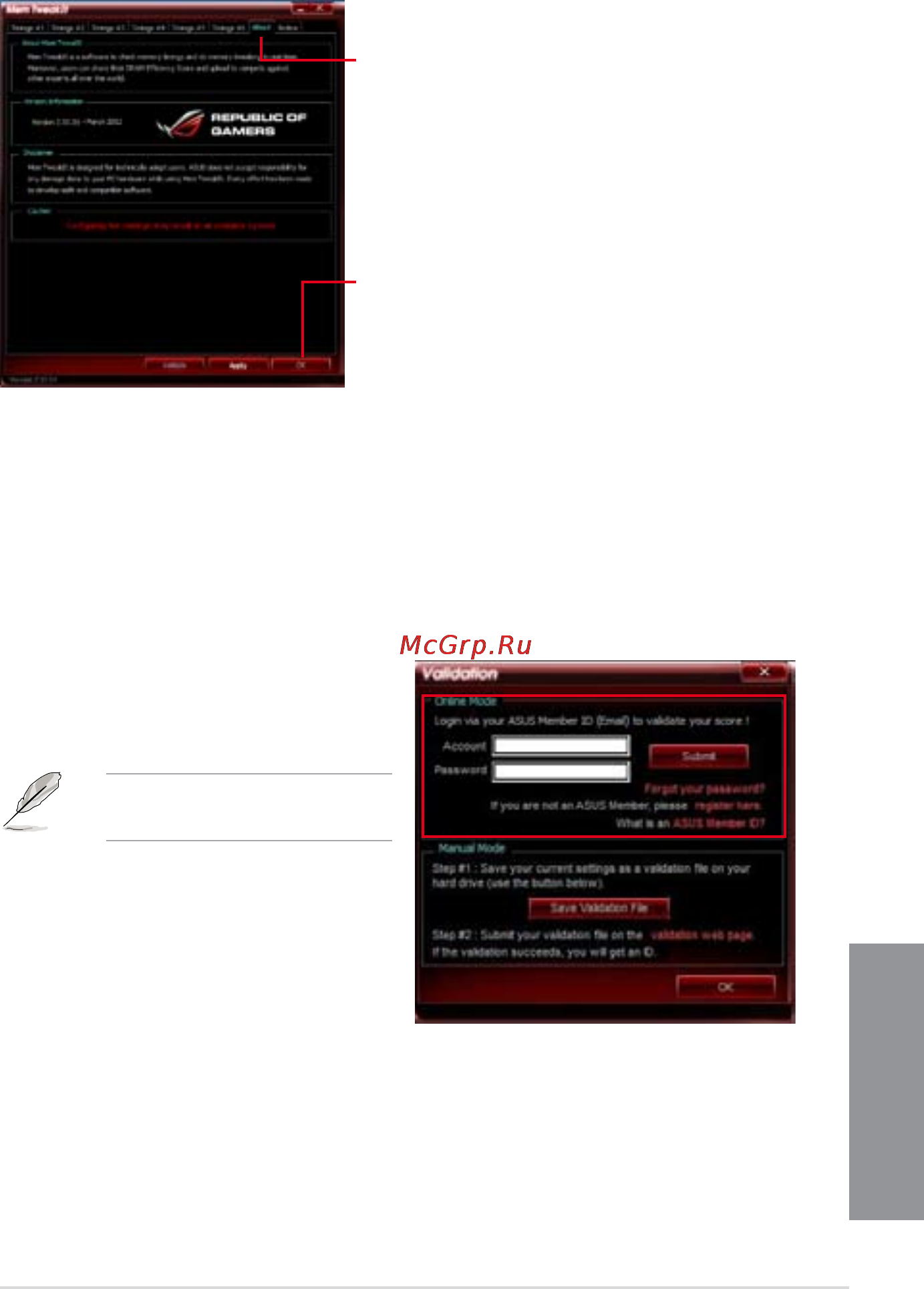

4. Click About tab and click REPUBLIC OF GAMERS to access ROG ofcial website.

5. Click

OK to exit MemTweakIt.

Validating and saving your MemTweakIt settings

To validate and save your conguration online:

1. Launch MemTweakIt and click

Validate.

2. In

Online Mode, key in your ASUS

account ID and password, and click

Submit.

Your conguration will be displayed

in MemTweakIt webpage.

3. Click OK to close the Validation

window.

Click About tab and click REPUBLIC

OF GAMERS to access ROG ofcial

website.

Click

OK to exit MemTweakIt.
