ASUS RAMPAGE IV BLACK EDITION
3-33
Chapter 3

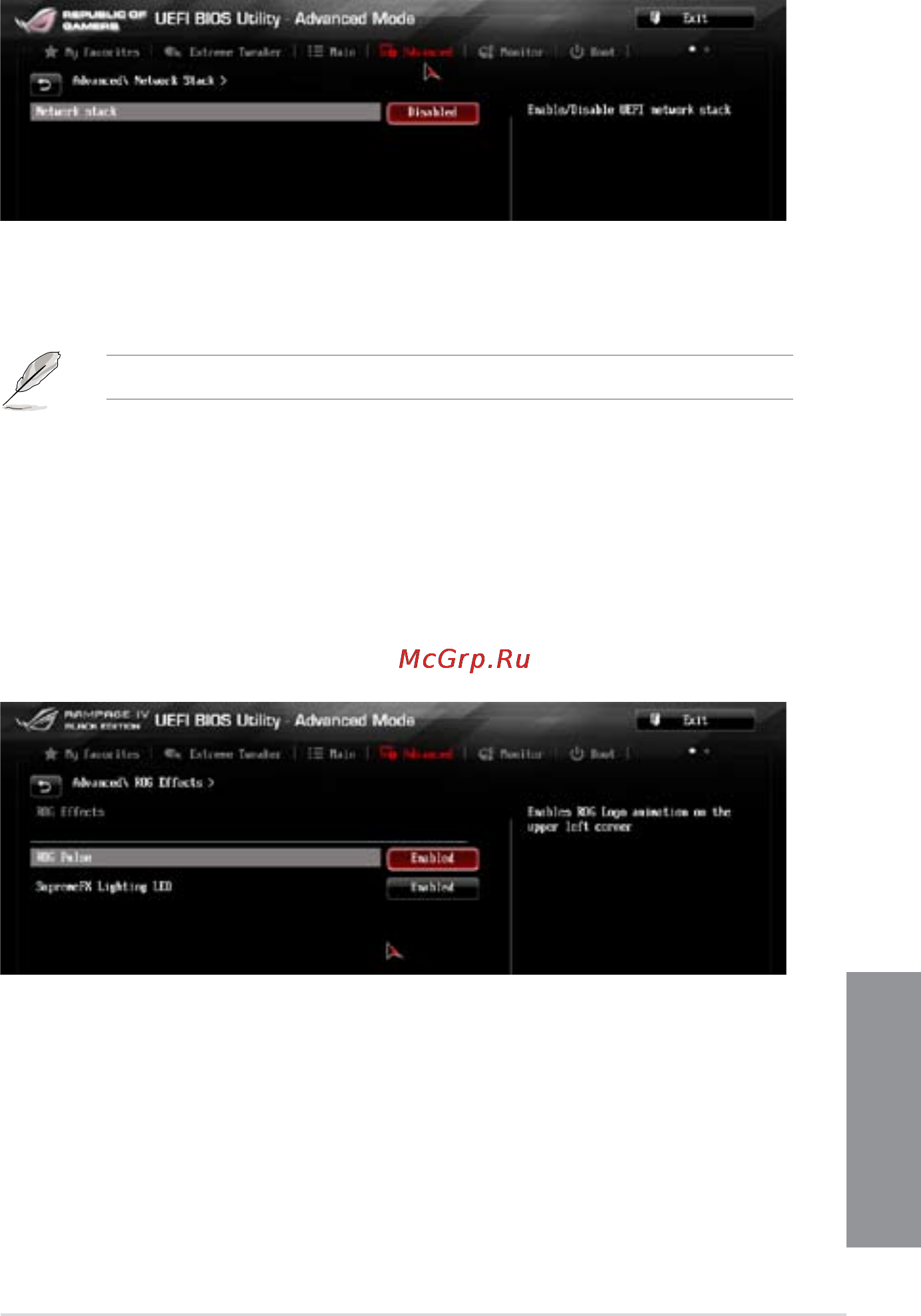

3.6.8 Network Stack
Network Stack [Disabled]
This item allows you to disable or enable the UEFI network stack.
Conguration options: [Disabled] [Enabled]
The following items appear only when you set the Network Stack to [Enabled].
Ipv4 / Ipv6 PXE Support [Enabled]
Allows you to enable or disable the Ipv4/Ipv6 PXE boot option.
Conguration options: [Disabled] [Enabled]
PXE boot wait time [0]
This item allows you to specify the wait time to press ESC key to abort the PXE boot.
3.6.9 ROG Effects
ROG Pulse [Enabled]
This item allows the animation of the ROG Logo on the upper left corner of the BIOS UEFI
screen when set to [Enabled].
Conguration options: [Disabled] [Enabled]
SupremeFX Lighting LED [Enabled]
Allows you to enable ot disable the LED for SupremeFX application.
Conguration options: [Disabled] [Enabled]
