Asus rog rampage iv black edition/ac4 [76/222] Chapter 2

2-10

Chapter 2: Basic Installation

Chapter 2

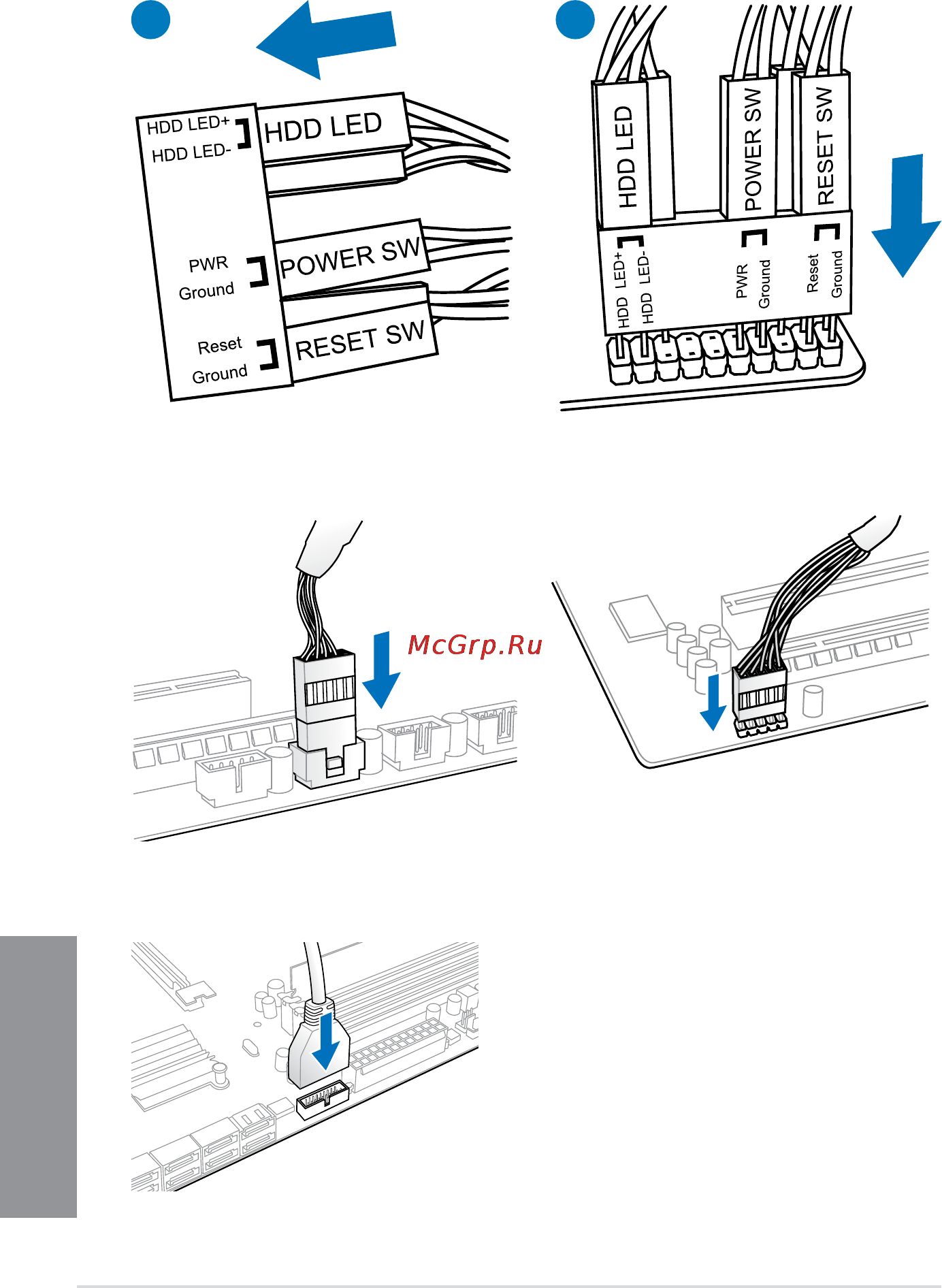

2.1.7 Front I/O Connector

To install ASUS Q-Connector

USB 2.0

To install USB 2.0 connector To install front panel audio connector

USB 3.0

To install USB 3.0 connector

AAFP
