MPC-2150 Hardware Hardware Connection Description
3-11

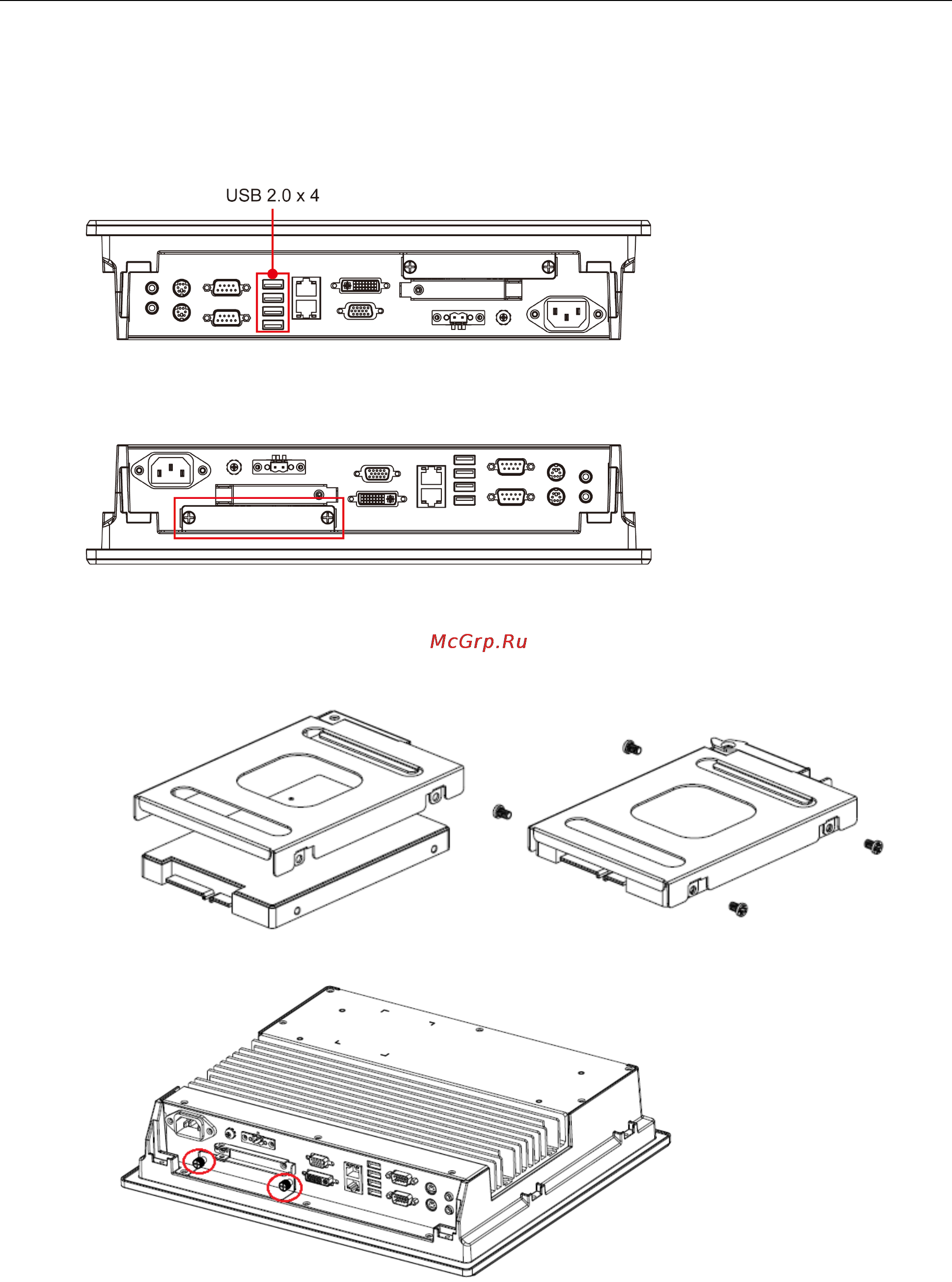

Connecting to USB Devices
The MPC-2150 comes with 4 USB 2.0 ports on the computer. The ports can be used for an external flash disk
or hard drive for data storage expansion. You can also use these USB ports to connect to a keyboard or a
mouse.
Installing a SATA HDD or SSD
The MPC-2150 comes with an HDD/SSD installation kit accessory. To install the 2.5-inch SATA storage, follow
these instructions. For better system reliability, we suggest using a solid state disk (SSD). A list of compatible
SSD models is available on Moxa’s website.
1. Use 4 screws to fasten the HDD/SSD to the HDD/SSD bracket.
2. Remove the 2 screws holding the HDD/SSD cover to the MPC-2150.
