MPC-2150 Hardware Configure Serial Interface
C-2
Overview
The MPC-2150 supports the following serial modes: RS-232, RS-422, 2-wire RS-485, and 4-wire RS-485.
These modes can be configured on COM1 and COM2.
Installing the SerialInterface Utility

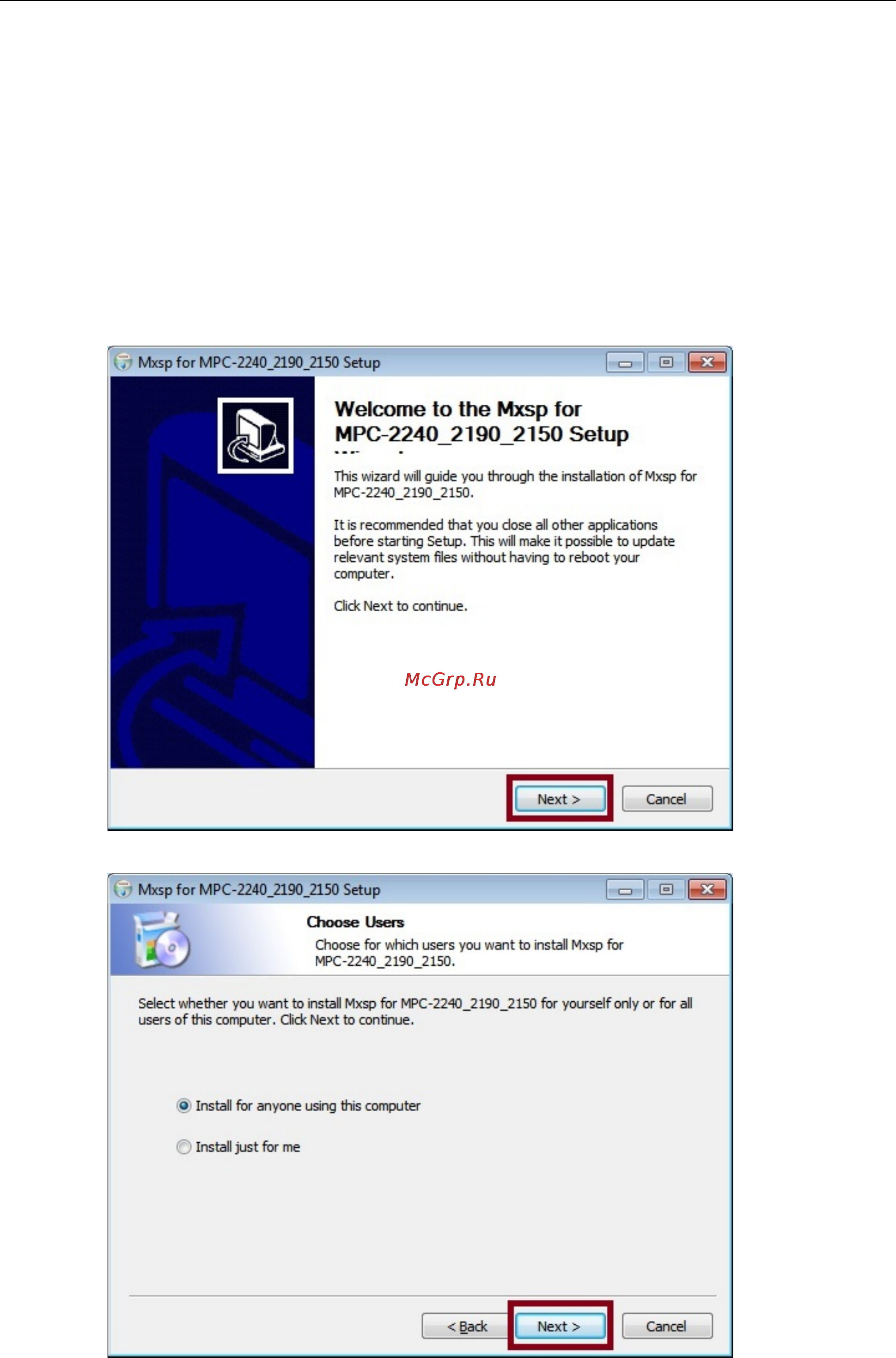

Complete the following steps to install the SerialInterface utility:
1. The SerialInterface setup *.exe file can be found on the product DVD: <Software
DVD>\utility\SerialInterface\x64 to. Execute "Mxsp_MPC-2240_2190_2150_1.0_x64_Setup.exe" and
when the application program launches, click Next to continue, and then click Next again.
