MPC-2150 Hardware Hardware Connection Description
3-12

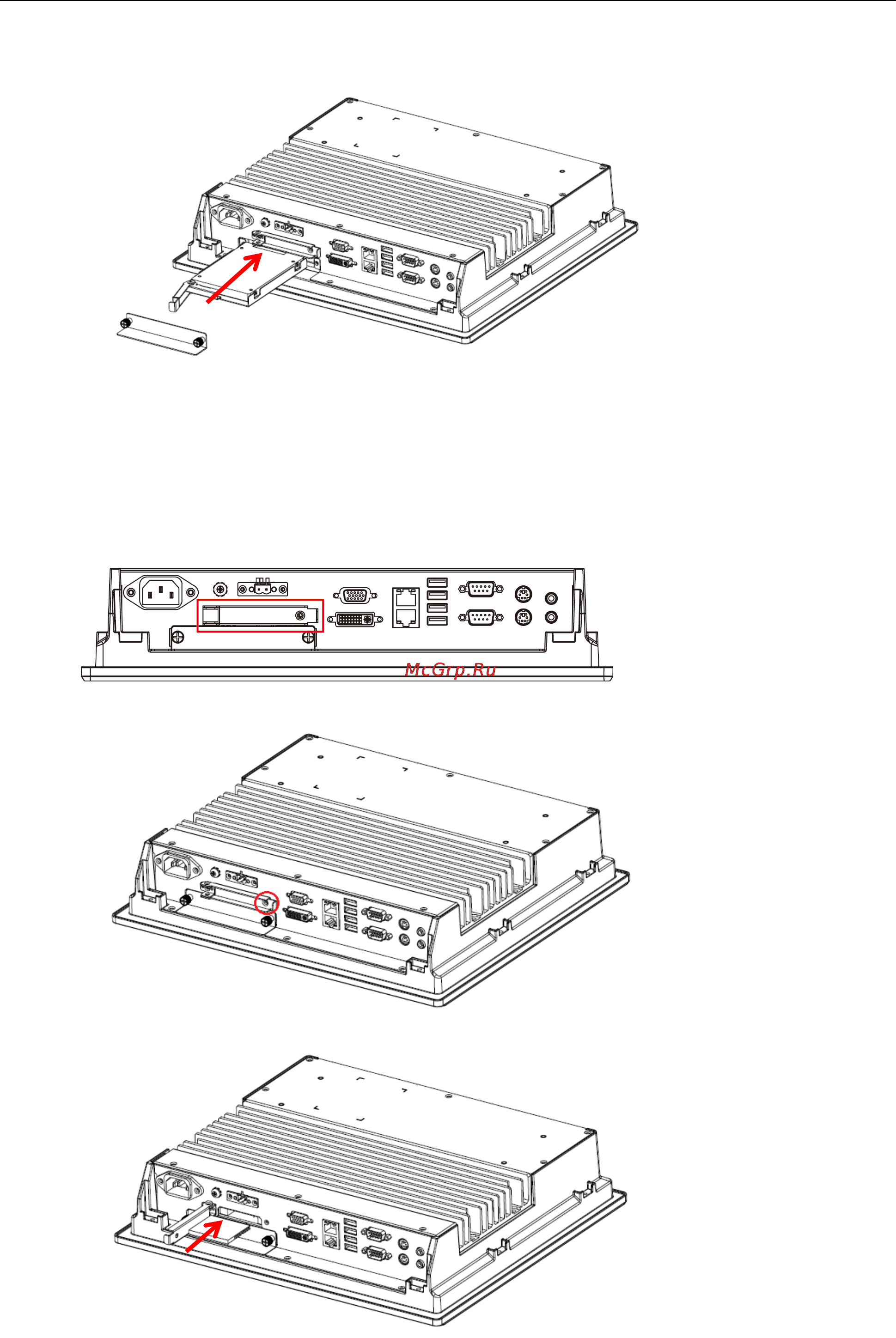

3. Insert the HDD/SSD (with the bracket) into the HDD/SDD slot. Noted that the latch on HDD/SSD bracket
should be released when pushing the HDD/SSD into the slot.
4. Reattach the HDD/SSD cover and fix it to the front panel with the 2 screws.
Installing a CFast Card
The MPC-2150 has a CFast slot that can be used to install a standard CFast card using a push-push mechanism.
A list of compatible CFast cards can be found on Moxa’s website.
1. Loosen the screws connecting the HDD/SSD cover to the MPC-2150.
2. Insert the CFast card into the slot using the push-push mechanism.
3. Reattach the CFast cover.
