MPC-2150 Hardware BIOS Setup
5-4

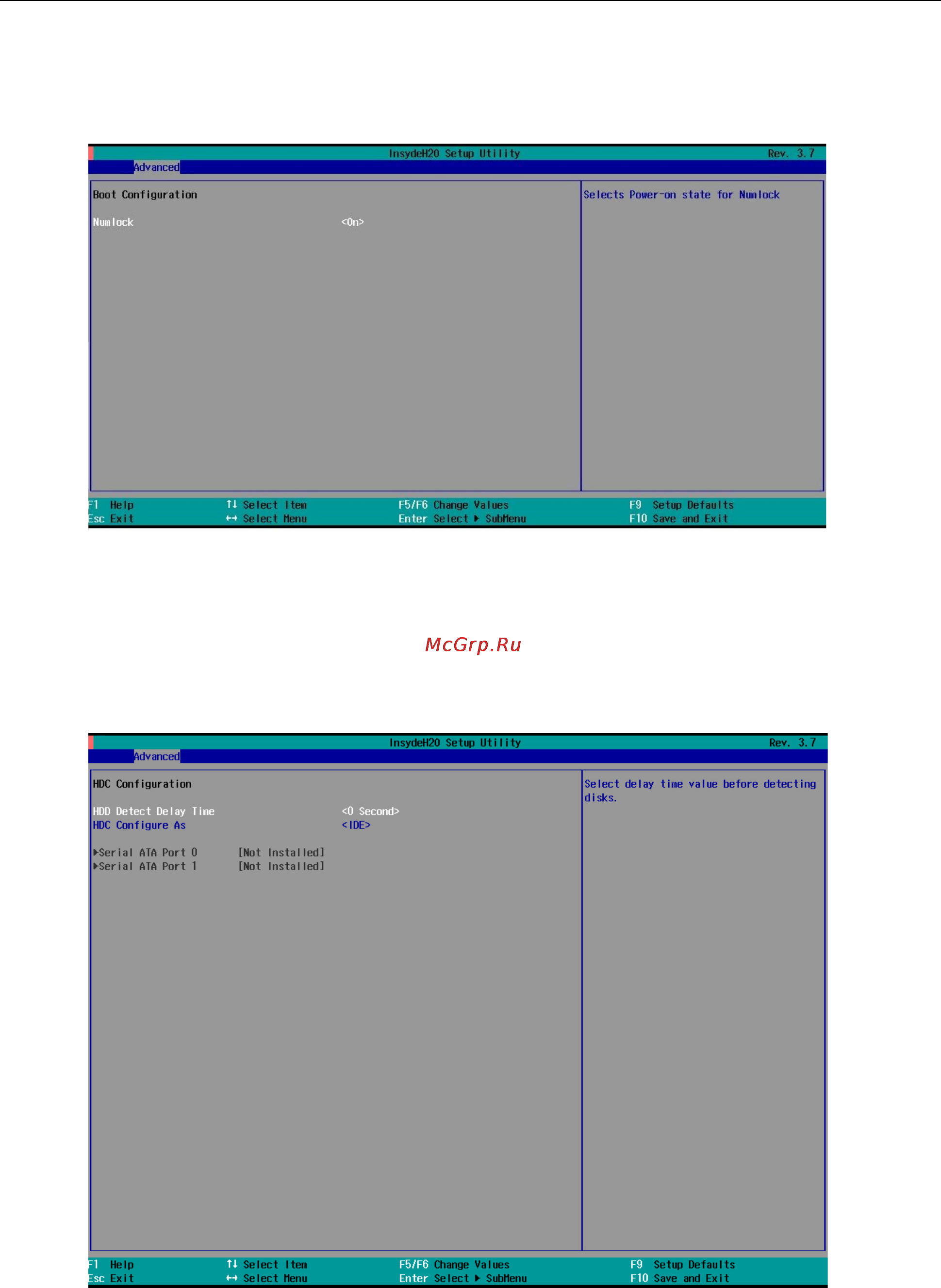

Boot Configuration
This item allows users to configure the default value of Numlock.
Option: On (default), Off
HDC Configuration
The host drive controller may be configured for IDE (legacy default), or AHCI mode.
When the legacy IDE mode is selected, the following screen will appear.
HDD Detect Delay Time
This setting allows you to configure the delaying time value before detecting the hard disks.
Option: 0 (default), 1, 2, 3 seconds.
