MPC-2150 Hardware Configure Serial Interface
C-3

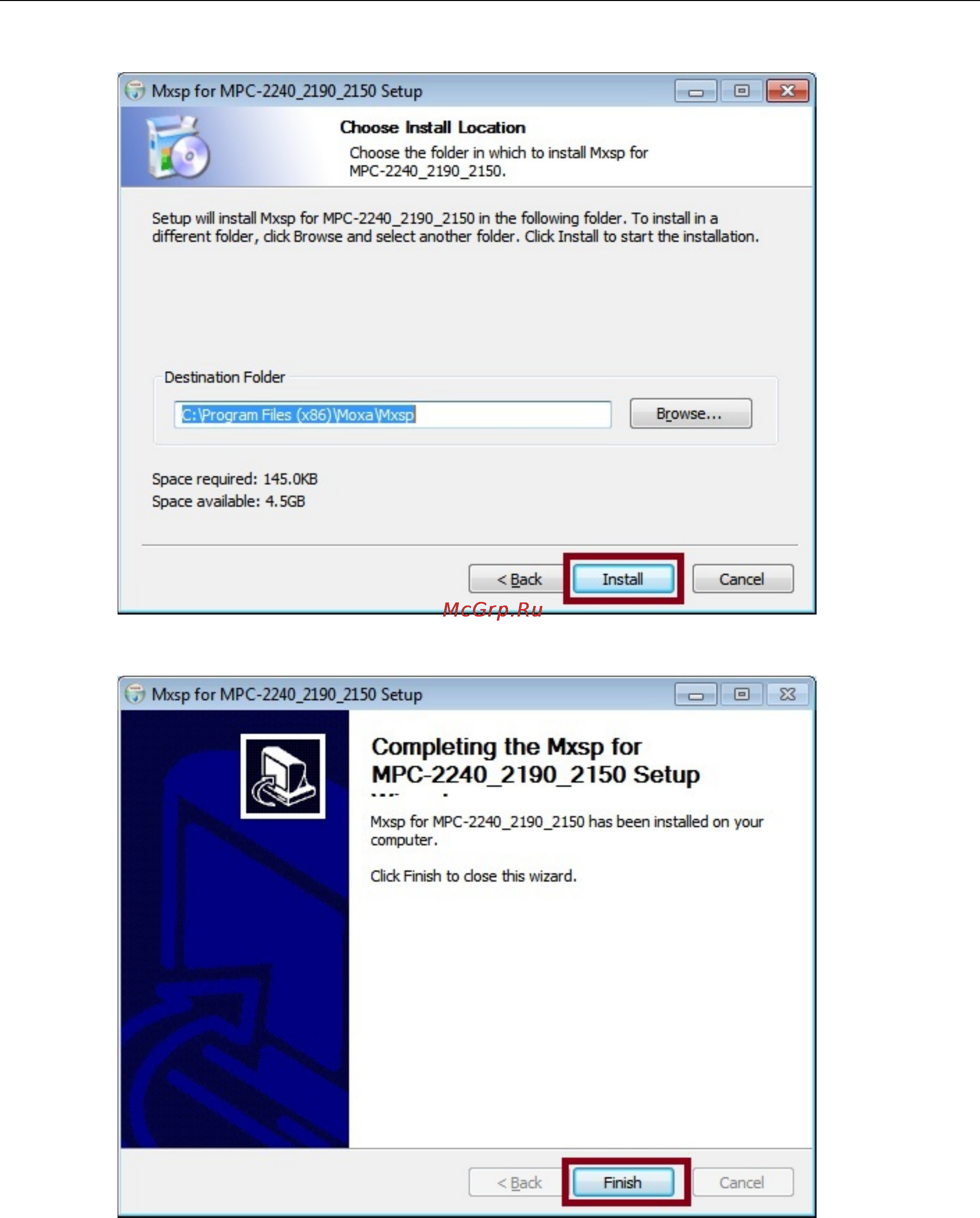

3. The default destination folder is C:\Program Files(x86)\Moxa\Mxsp; click Install to continue.
4. Click Finish to complete installation.
