MPC-2150 Hardware Configure Serial Interface
C-4
Configuring the Serial Interface Mode

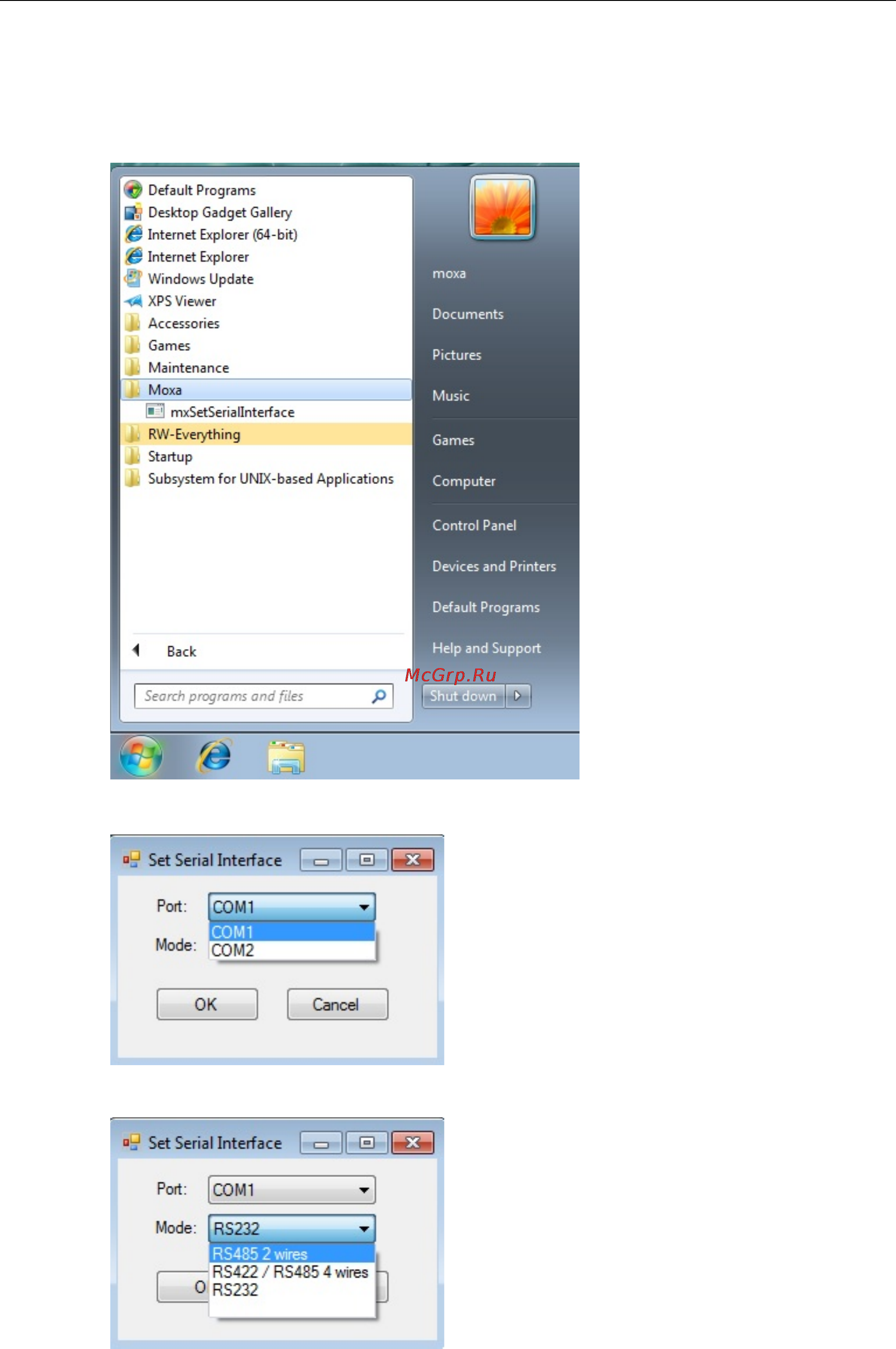

Complete the following steps to configure the interface mode:
1. From the Start menu, Click All Programs
Moxa
mxSetSerialInterface.
2. Select a port (COM1 or COM2).
3. Select the mode that you want to use for the port selected in the previous step.
