MPC-2150 Hardware Display Resolution
4-7

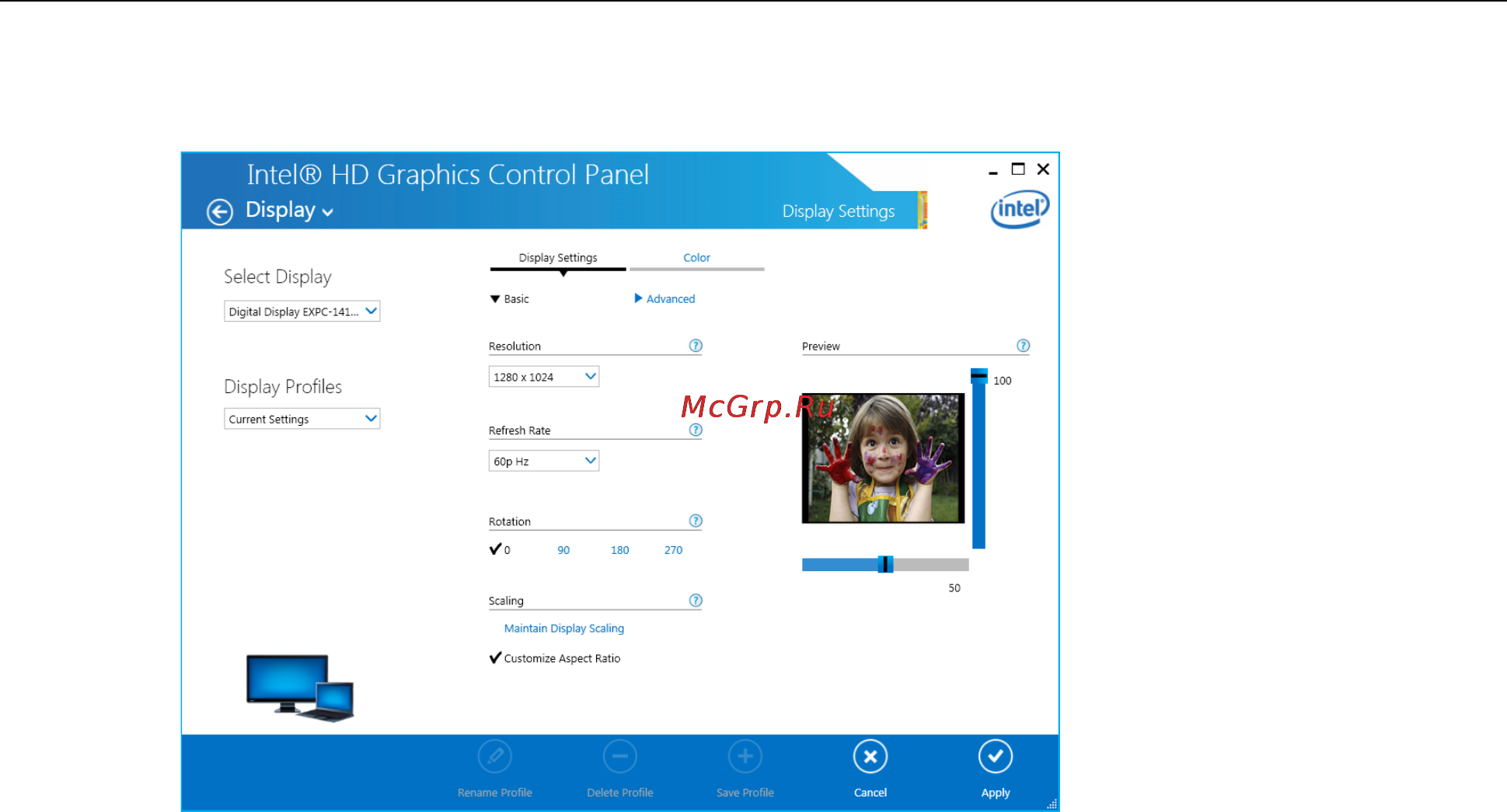

4. If you want to adjust the display size, select Customize Aspect Ratio, and adjust by pulling the bars on
the right.
5. Click Apply when finished.
