Moxa MPC-2150Z-T [30/65] Mpc 2150 hardware display resolution
![Moxa MPC-2150Z-T [30/65] Mpc 2150 hardware display resolution](/views2/1200597/page30/bg1e.png)
MPC-2150 Hardware Display Resolution
4-5

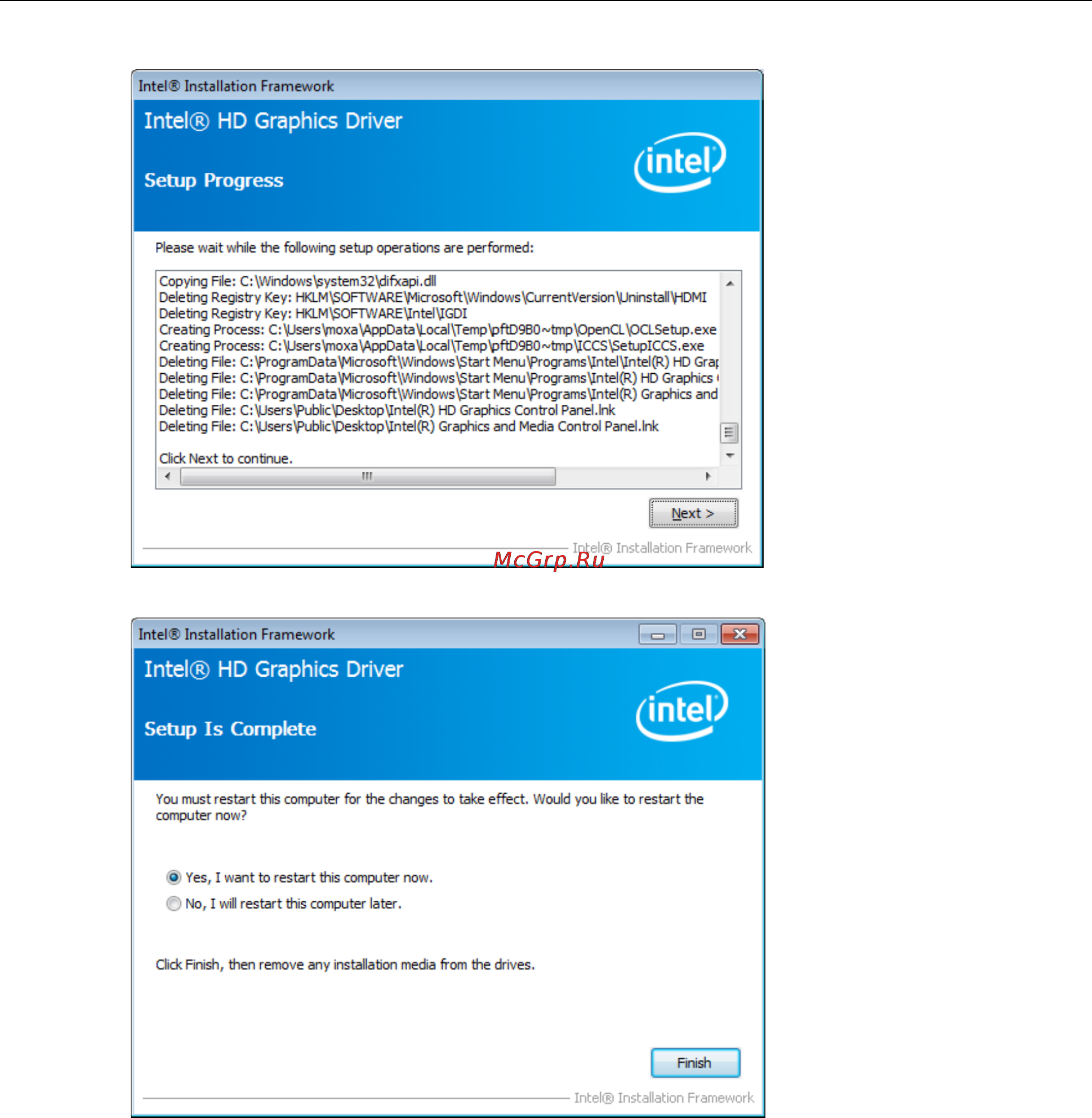

8. Click Next to continue.
9. Select Yes, and then click Finish to complete the VGA driver installation.
10. The MPC-2150 will restart, and you may now adjust the display resolution with the tool provided by Intel.
