MPC-2150 Hardware Display Resolution
4-3

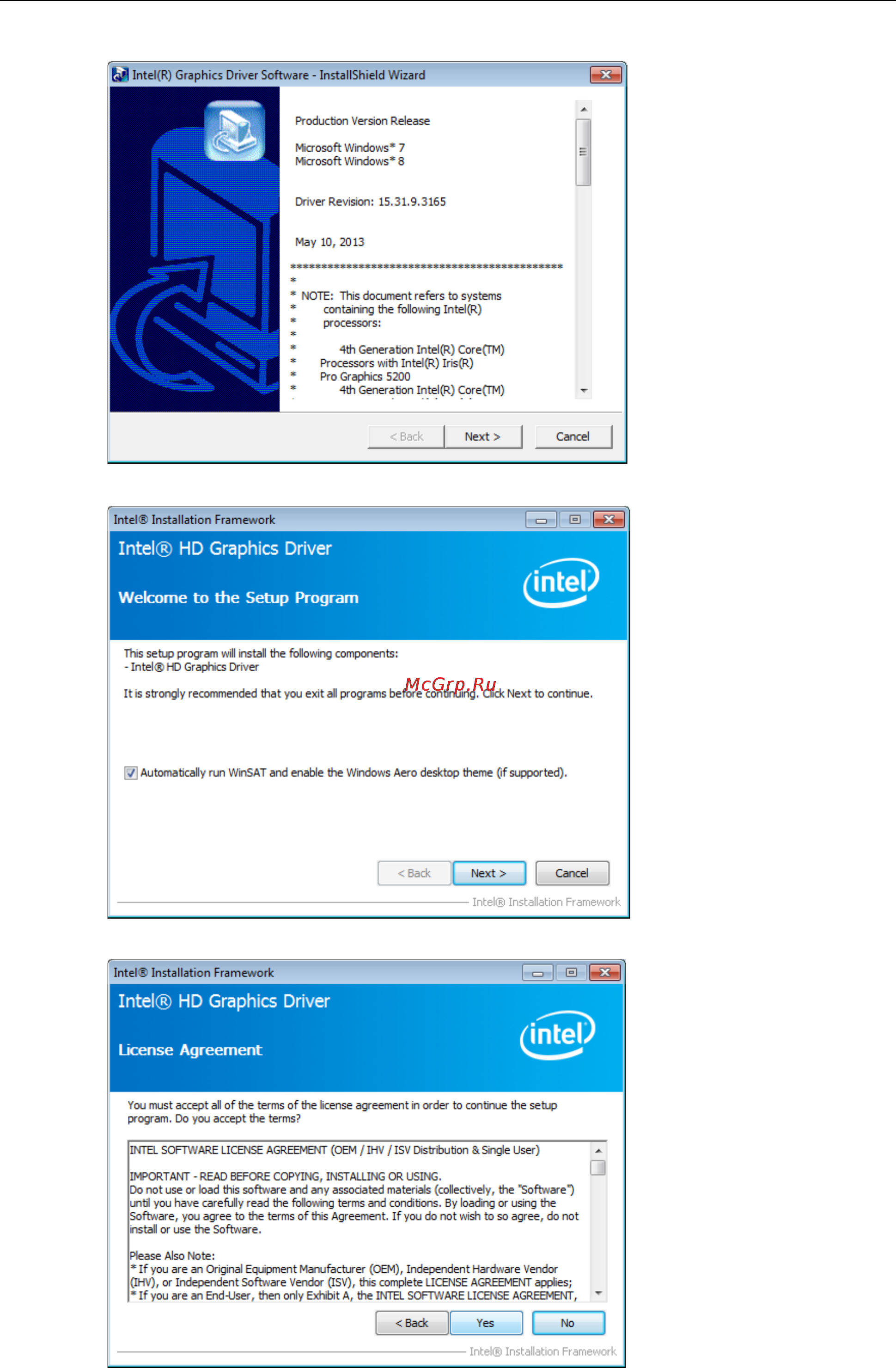

3. The installation wizard will be launched; click Next to continue.
4. Click Next to start the installation.
5. Click Yes to accept the license agreement.
