MPC-2150 Hardware Display Resolution
4-2
Installing the VGA Driver
The MPC-2150 comes with a stock VGA driver for Windows Embedded Standard 7. Follow these steps to install.

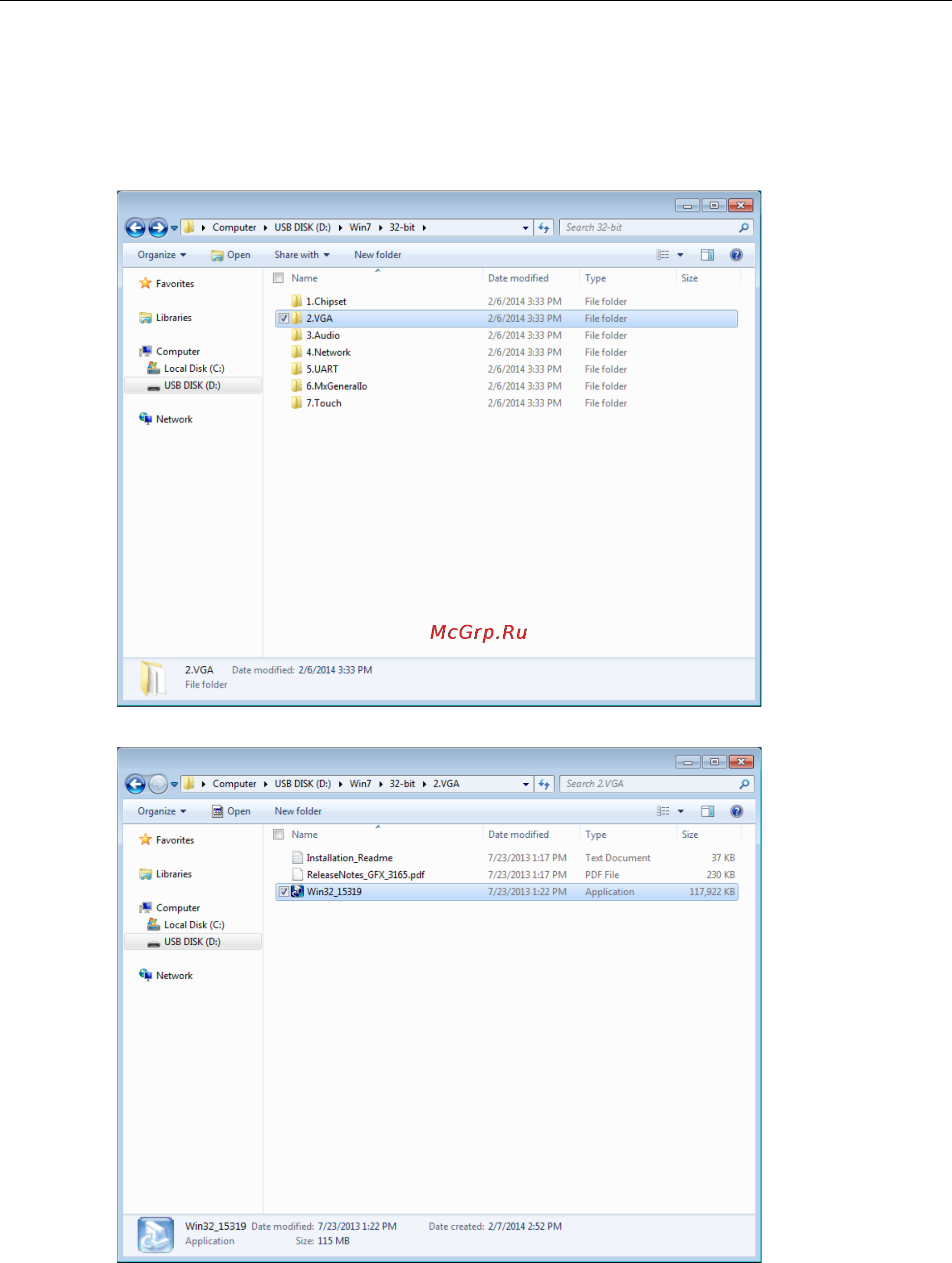

1. On the product CD go to the Driver folder and select Win7. Select either 32-bit or 64-bit, according to
your platform, then select 2.VGA folder.
2. Double-click Win32_15319 to continue.
