FG080 –EPSILON 07-12 RAC
11
7.0 CLEANING INSTRUCTIONS
NOTE:
- Cleaning must be carried out by fully trained personnel only.
- Isolate machine from mains supply before carrying out any cleaning.
- Do not steam clean or use a jet of water.
-Do not use any form of caustic detergent or abrasive cleaners.-
All the outer surfaces of the machine should be wiped over daily with warm soapy water.
DOUGH HOPPERS
BETWEEN PRODUCT MIX CHANGES
The feed hopper, pump assembly, template, nozzles etc. should be removed from
the machine and dismantled for thorough cleaning between product mix changes.
1. Open top safety guard (lift front and unhook the back edge) and remove excess
mixture remaining in the feed hopper.
2. Slacken template clamp strip nuts and remove fitted template from pump assembly
by sliding out while supporting it to avoid damage.
NOTE.
Thumbscrews only need to be released slightly to allow the template to slide away
from the pump assembly. If loosened too much, the template will have to be supported.

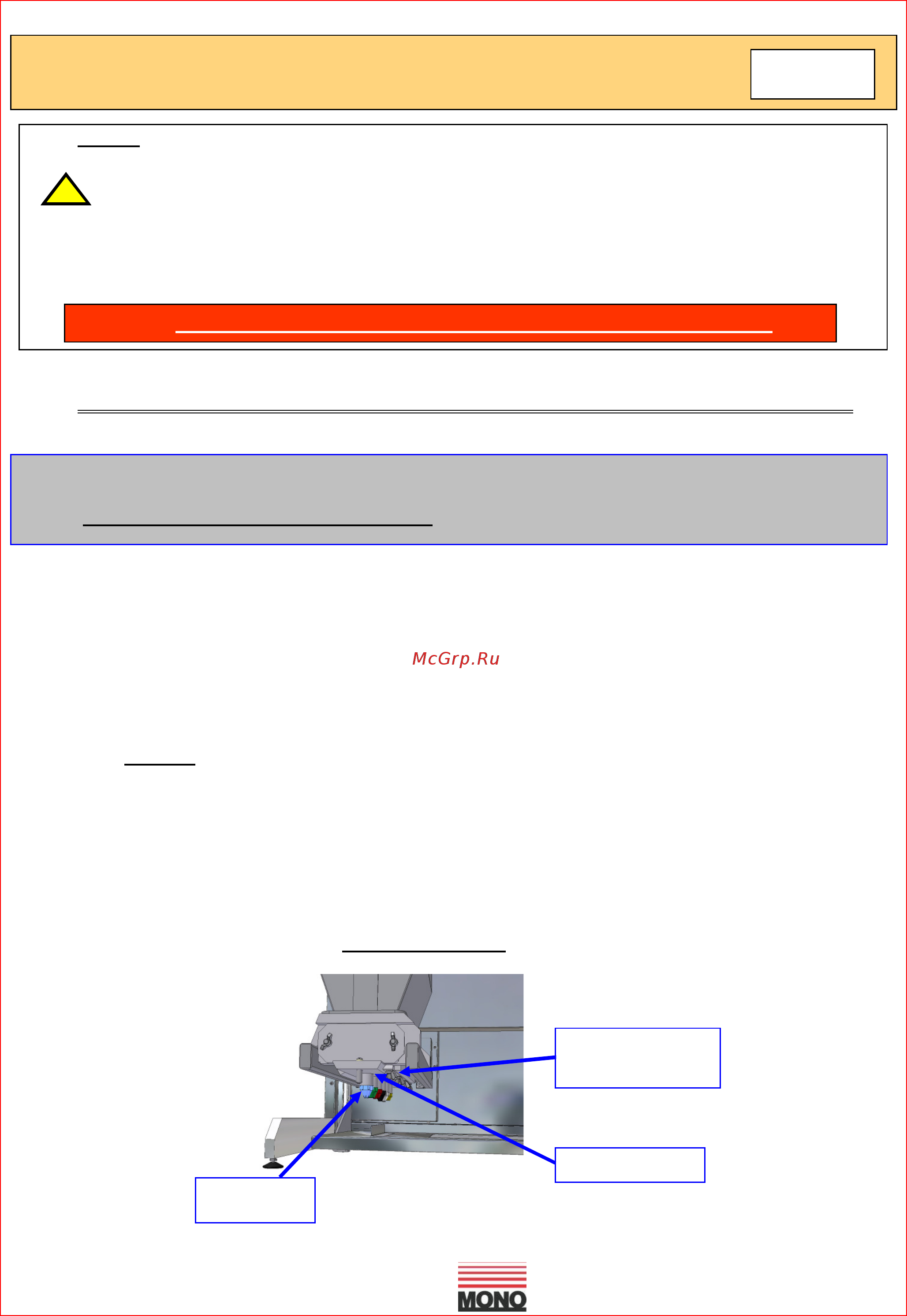

TEMPLATE
DOUGH HOPPER
EPSILON
CLAMP STRIP
AND NUTS
NOZZLES
