Mono Epsilon 400 [13/53] Dough hopper

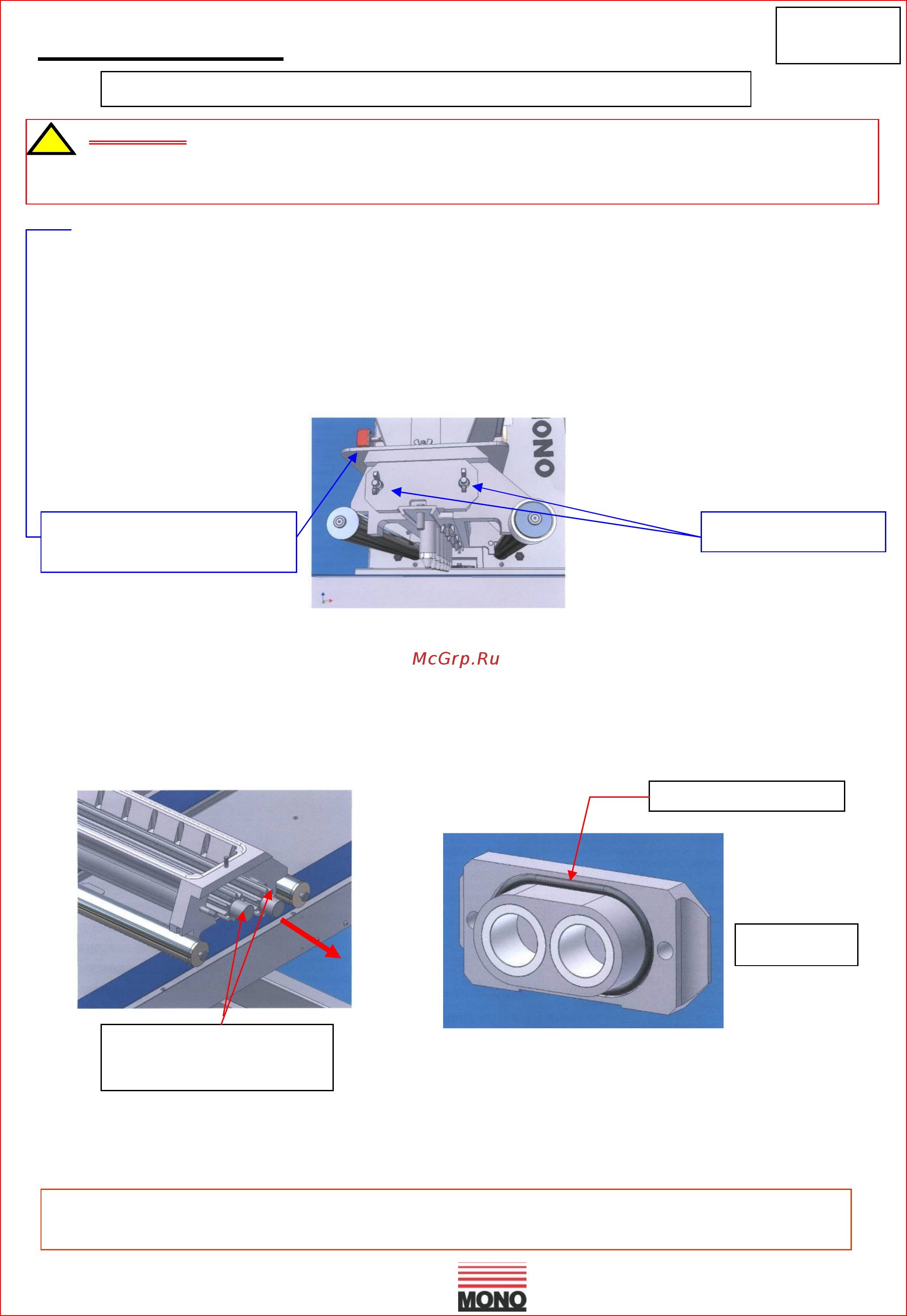

![Mono Epsilon 400 [13/53] Dough hopper](/views2/1334011/page13/bgd.png)
FG080 –EPSILON 07-12 RAC
13
CAUTION:
The feed hopper and pump assembly can exceed 25kg and will need to be lifted off
by two people, or dismantled into smaller components while still on the machine.
Take care to avoid damage to the sealing surface of the feed hopper during removal,
cleaning, assembly and storage.
1. After removing the feed hopper, check condition of feed hopper seal.
2. Unscrew the end cap retaining nuts from the accessible side of the pump assembly.
Ensure that the nuts are placed where they will not be lost.
3. Withdraw the end-cap with the pump gears.
Ensure that the ‘O’ sealing ring on the inside of the end-cap is not damaged during cleaning.
4. To fully dismantle pump assembly components for cleaning, remove remainder of
pump assembly from the machine and remove remaining end-cap.
ENDCAP NUTS
END CAP
‘O’ RING IN GROOVE
FEED HOPPER
SEALING SURFACE
DOUGH HOPPER
PUMP GEARS
REMOVE WITH END CAP
(NOT SHOWN)
PICTORIAL VIEWS SHOWN COULD BE DIFFERENT TO THE MACHINE BEING
WORKED ON BUT THE INSTRUCTIONS ARE THE SAME FOR ALL MODELS.
EPSILON
NOTE: THIS MACHINE IS FOR USE WITH SOFT DOUGH ONLY
