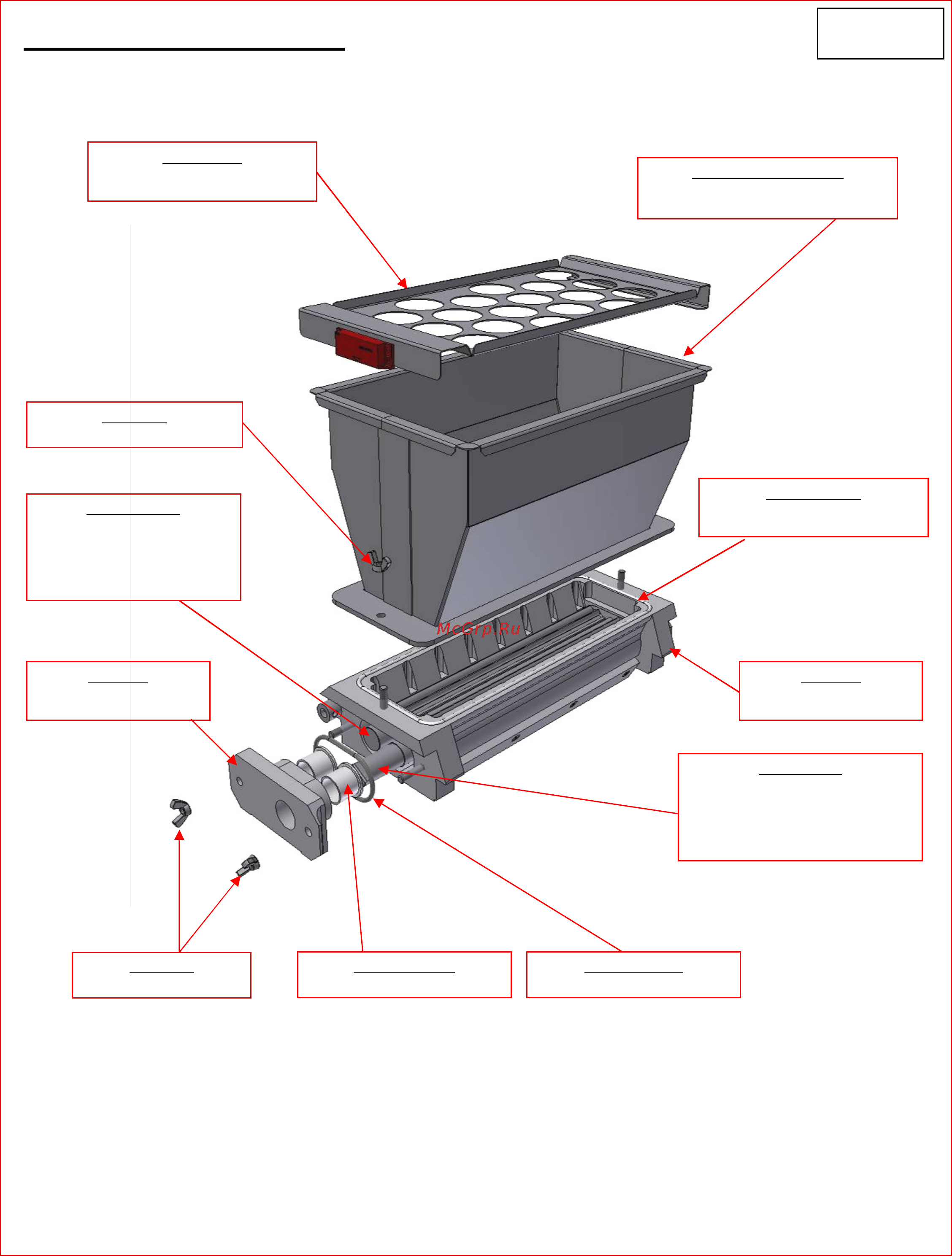

DOUGH HOPPER PARTS
EPSILON
WINGNUT
A900-04-147
END CAP
M073-KMX001
HOPPER FABRICATION
400mm -- M080-09-00008
450mm -- M080-09-00011
WINGNUT
A900-04-147
HOPPER SEAL
400mm -- A900-12-083
450mm
--
A900
-
12
-
084
TOP COVER
400mm -- M080-09-00010
450mm
--
M080
-
09
-
00014
END CAP BUSH
M073-09-00600
END CAP SEAL
A900-12-074
DRIVE GEAR
M073-09-00700 (400mm)
M073-09-01600 (450mm)
DRIVEN GEAR
M073-09-00702 (400mm)
M073-09-01602 (450mm)
END CAP
M073-KMX002
