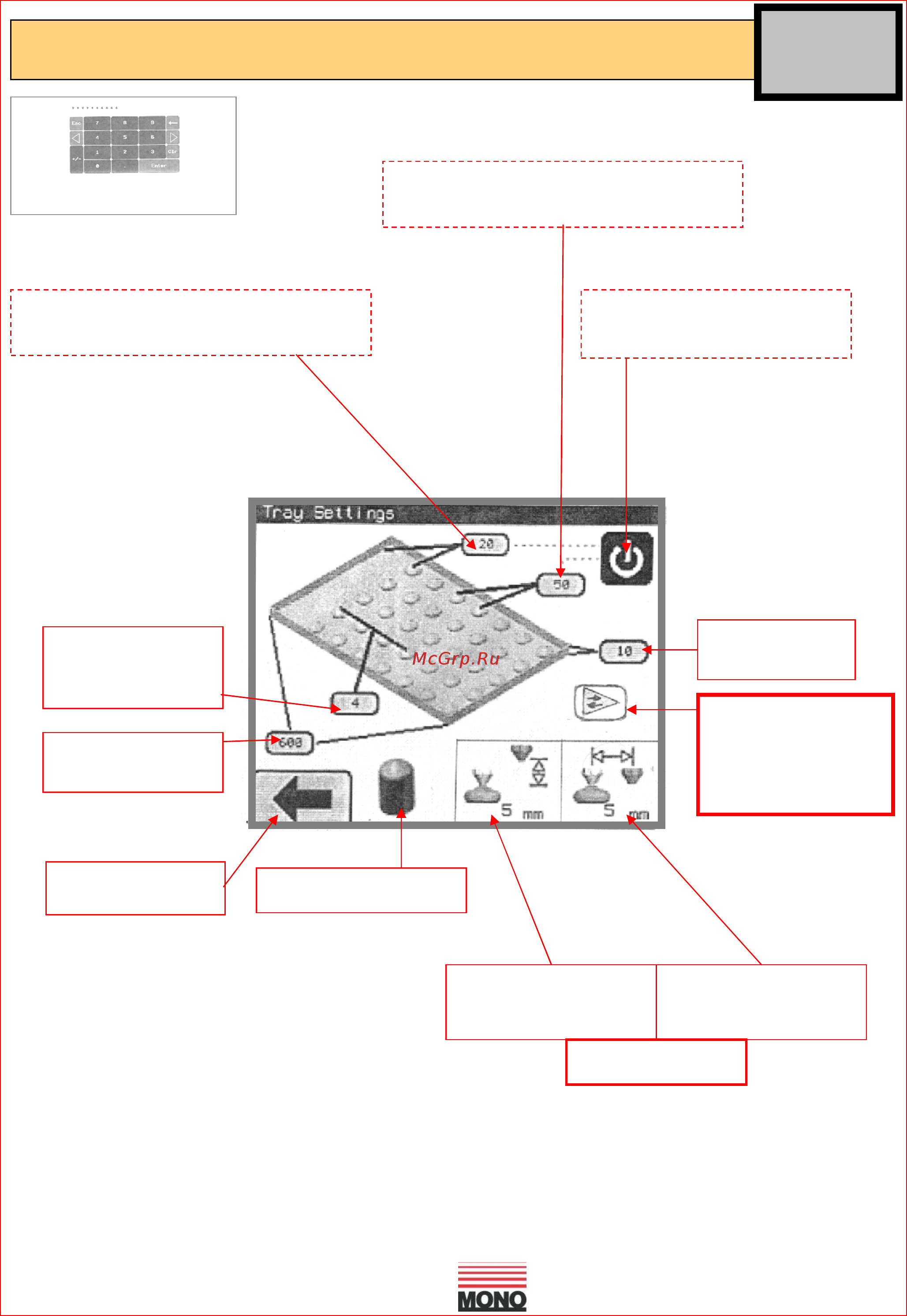

Mono Epsilon 400 [28/53] Tray setup
![Mono Epsilon 400 [28/53] Tray setup](/views2/1334011/page28/bg1c.png)
FG080 –EPSILON 07-12 RAC
28
TRAY SETUP
4A
DISTANCE (mm) TO 1
ST
ROW
ON TRAY
(WHEN USING MANUAL OVER-RIDE)
DISTANCE (mm) BETWEEN ROWS
(WHEN USING MANUAL OVER-RIDE)
MANUAL OVER
-
RIDE
FOR
ROW SPACING
ON/OFF
TRAY
EDGE
HEIGHT (mm)
HORIZONTAL DISTANCE
MOVED BY HOPPER AFTER
DEPOSIT
PRODUCT TYPE
TO PREVIOUS
SCREEN
NUMBER OF
ROWS PER
TRAY
TRAY LENGTH
(mm)
PRESS WINDOWS AND ENTER
VALUES VIA KEYPAD
VERTICAL DISTANCE
MOVED BY HOPPER AFTER
DEPOSIT
WIPE BACK
DEPOSIT
DIRECTION
TOGGLES BETWEEN
TWO WAY (DEFAULT) OR
ONE WAY
