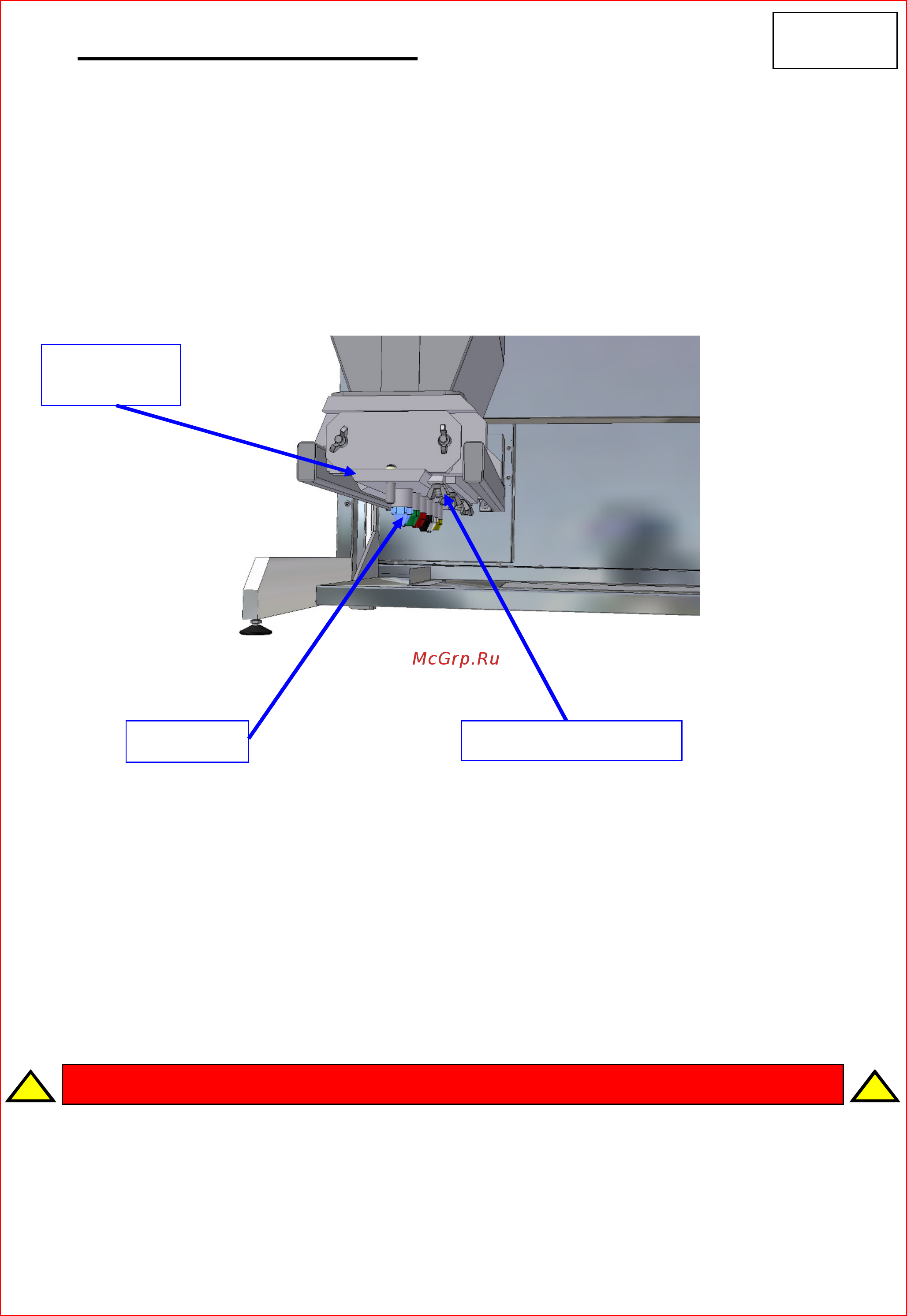

9b FITTING A TEMPLATE
1 Select template and nozzles required.
(Nozzles are not required for sheeting, staggered or stub templates)
2 Attach nozzles to template body:
3 Slide template into matching recess at base of pump assembly until the stop is in
position.
4 Tighten nuts on clamp strip (on underside of pump assembly) to secure template.
NOTE. If the nuts are not securely tightened,
leakage of mix will occur, affecting deposit weights.
TEMPLATE
BODY
NOZZLES CLAMP STRIP NUTS
DO NOT OPERATE MACHI
NE WITHOUT TEMPLATE FITTED
EPSILON
