FG080 –EPSILON 07-12 RAC
23

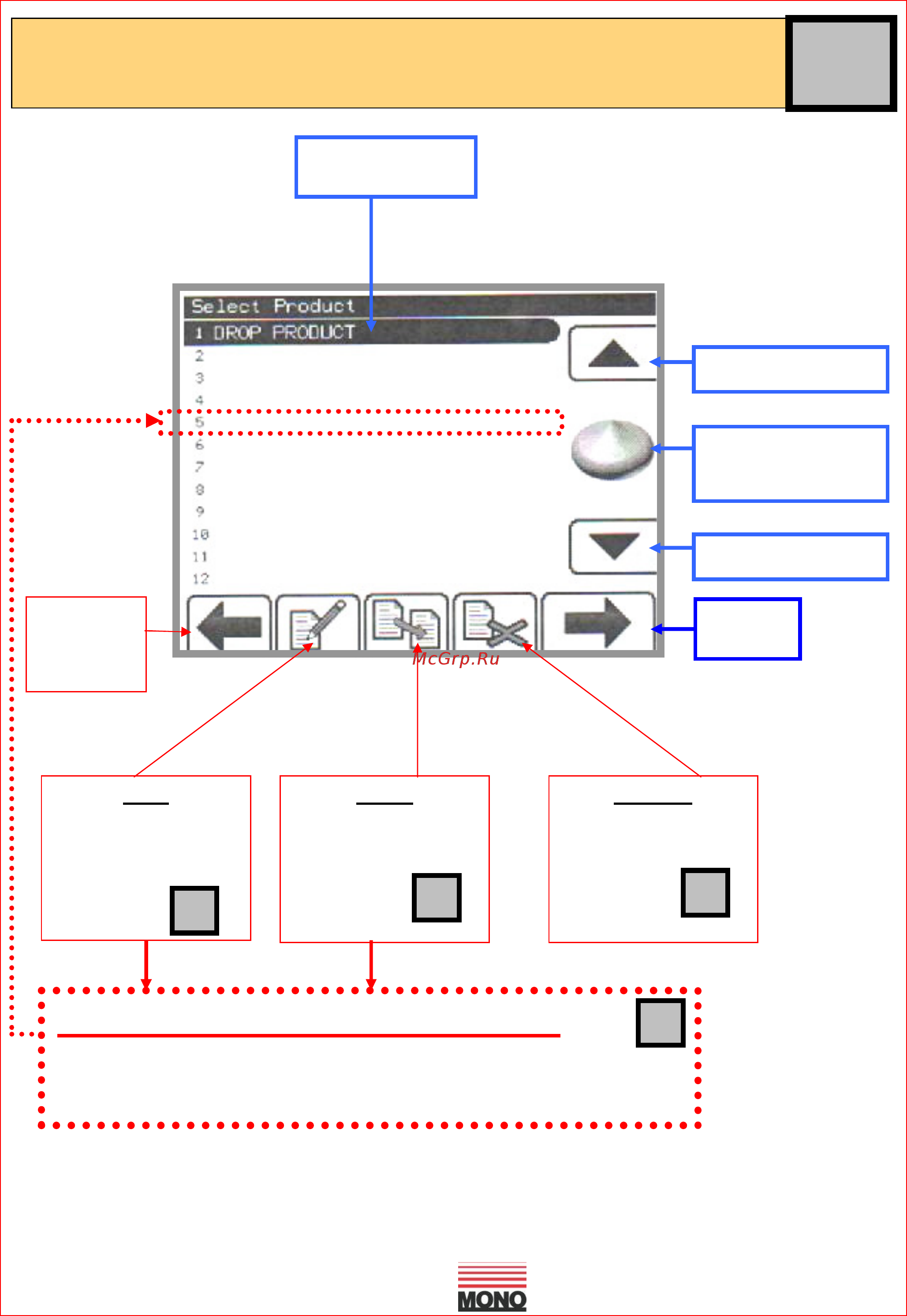

SELECT SAVED PRODUCT TYPE
OR CHOOSE EMPTY SLOT TO CREATE A NEW PROGRAM
MOVE UP LIST
TYPE OF PRODUCT
THIS SCREEN
APPLIES TO
MOVE DOWN LIST
COPY
ALLOWS COPYING OF
SELECTED PROGRAM
GO TO PART
TO NEXT
SCREEN
EDIT
GOES TO EDIT
SCREEN TO ADJUST
PROGRAM OF
SELECTED PRODUCT
GO TO PART
DELETE
ALLOWS DELETION
OF SELECTED
PROGRAM
GO TO PART
PROGRAM NAME
(USER DEFINED)
4
5
6
2
EMPTY SLOT USED TO CREATE NEW PROGRAM
RETURN
TO
PREVIOUS
SCREEN
TO CREATE A NEW PROGRAM.
MOVE TO AND EDIT AN EMPTY PROGRAM SLOT (BLANK).
STANDARD DEFAULTS WILL BE APPLIED AS A STARTING POINT
4
PART
