SELECT PRODUCT TYPE
SELECT PRODUCT TO DEPOSIT OR TO CREATE NEW PROGRAM
STRIP
SHEETING
DROP
CHOOSE
LANGUAGE
MACHINE SETUP
PRODUCT
EDITING
COPYING
DELETING
PROGRESS TO
NEXT SCREEN
PASSWORDS ARE REQUIRED FOR
THESE FUNCTIONS. SEE PART 7
TO LAST
SCREEN
TOWER
1

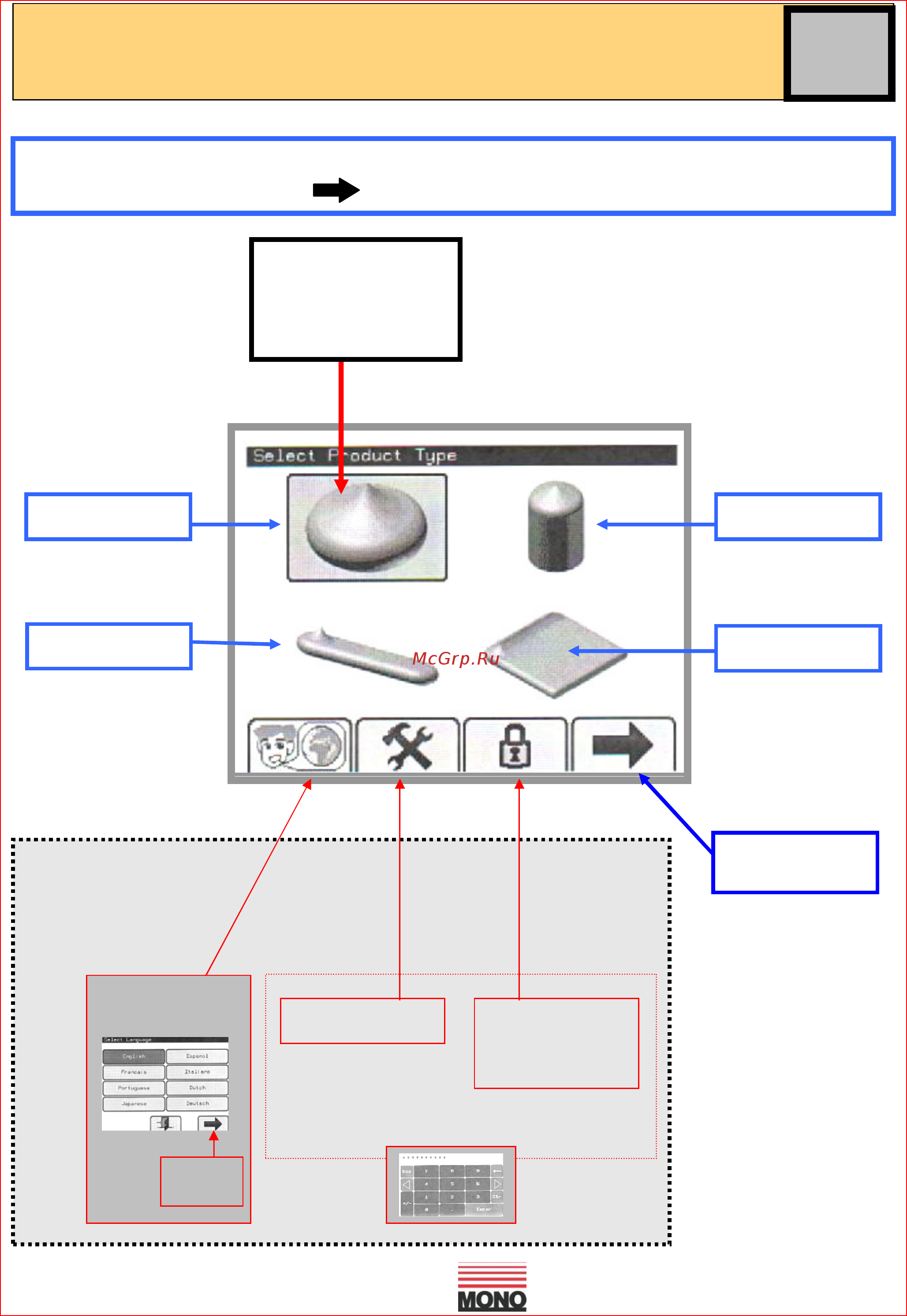

TOUCH THE SCREEN FOR THE TYPE OF PRODUCT REQUIRED
THEN TOUCH
TO MOVE TO THE NEXT SCREEN
HIGHLIGHT BOX
APPEARS TO SHOW
SELECTED PRODUCT
WHEN SCREEN IS
TOUCHED
THESE BUTTONS
CONTROL CHANGES
TO THE MACHINE
PART
