FG080 –EPSILON 07-12 RAC
25

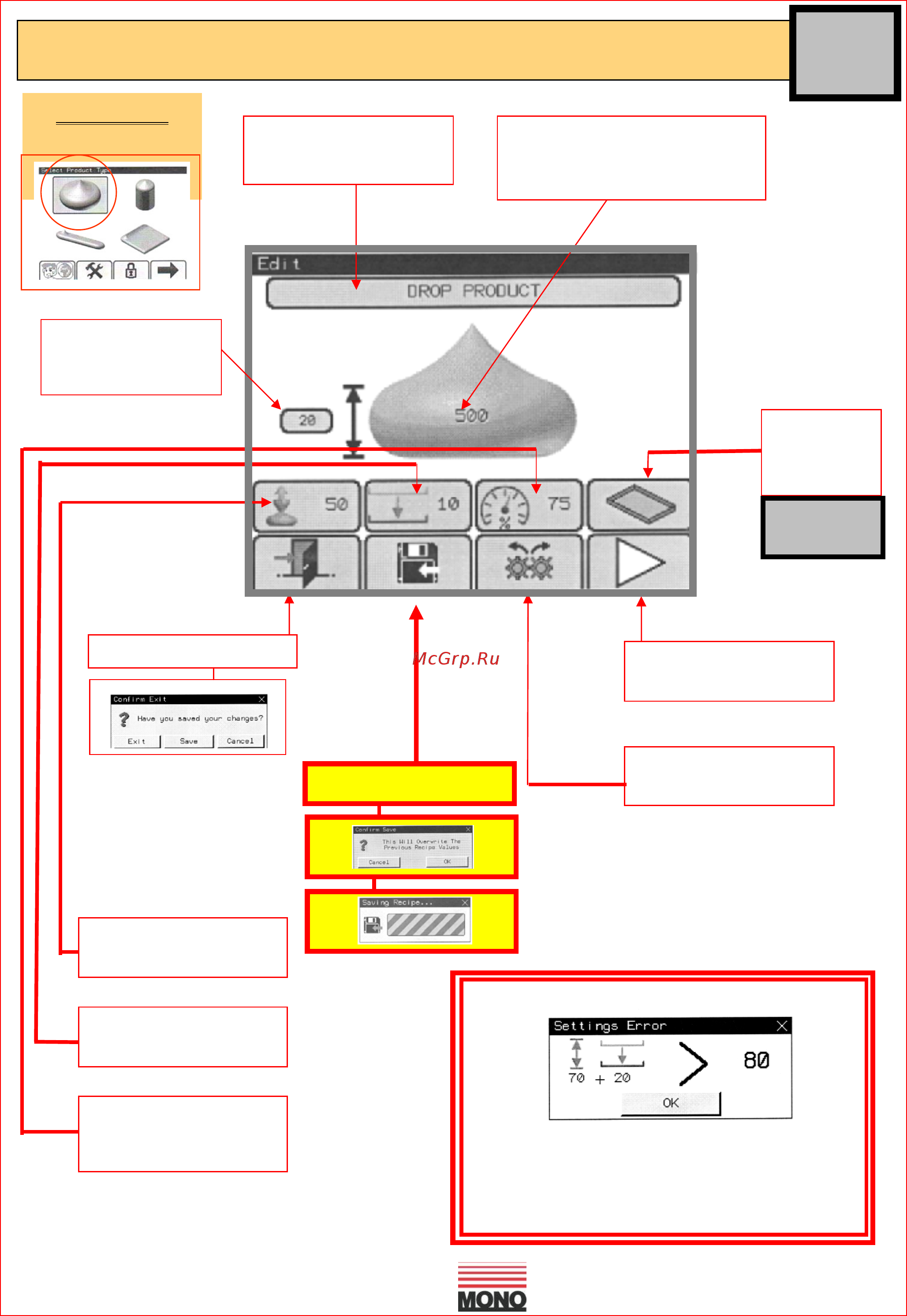

EDIT AND SAVE SCREEN
4
PROGRAM NAME
MUST BE ENTERED TO
ALLOW PROGRAM TO SAVE
PRODUCT QUANTITY
THIS IS A SETTING NUMBER AND
DOES NOT INDICATE A MEASURE OF
ACTUAL VOLUME
SUCK BACK
QUANTITY
TABLE
JOG DISTANCE (mm)
OVERALL
MACHINE SPEED
(% OF MAXIMUM)
SAVE EDITS
EXIT
THIS SCREEN
ENTER
TRAY
SETUP
SCREEN
PRIME
PUMP
START
MANUAL MODE
GO TO
PART
4A
EXAMPLE:
DROP
SETTING ERROR INDICATOR
NOZZLE HEIGHT
ABOVE TRAY
SURFACE
NOZZLE HEIGHT ABOVE TRAY SURFACE
AND THE JOG DISTANCE IS OVER 80mm THIS
ERROR SCREEN WILL SHOW.
RESET TO LOWER FIGURES TO CONTINUE.
