FG080 –EPSILON 07-12 RAC
16
9.0 PREPARING FOR OPERATION
1 Select template and nozzles required and fit as section 9a & 9b following.
Fill hopper with mix and close hopper guard.
2 Connect power cable to the correct electrical supply.
Make sure stop button is in released position (turn clockwise if required).
3 Select an existing program or create a new program through the on-screen menus.
(see section 10 operation)
4 The machine is now ready for operation.

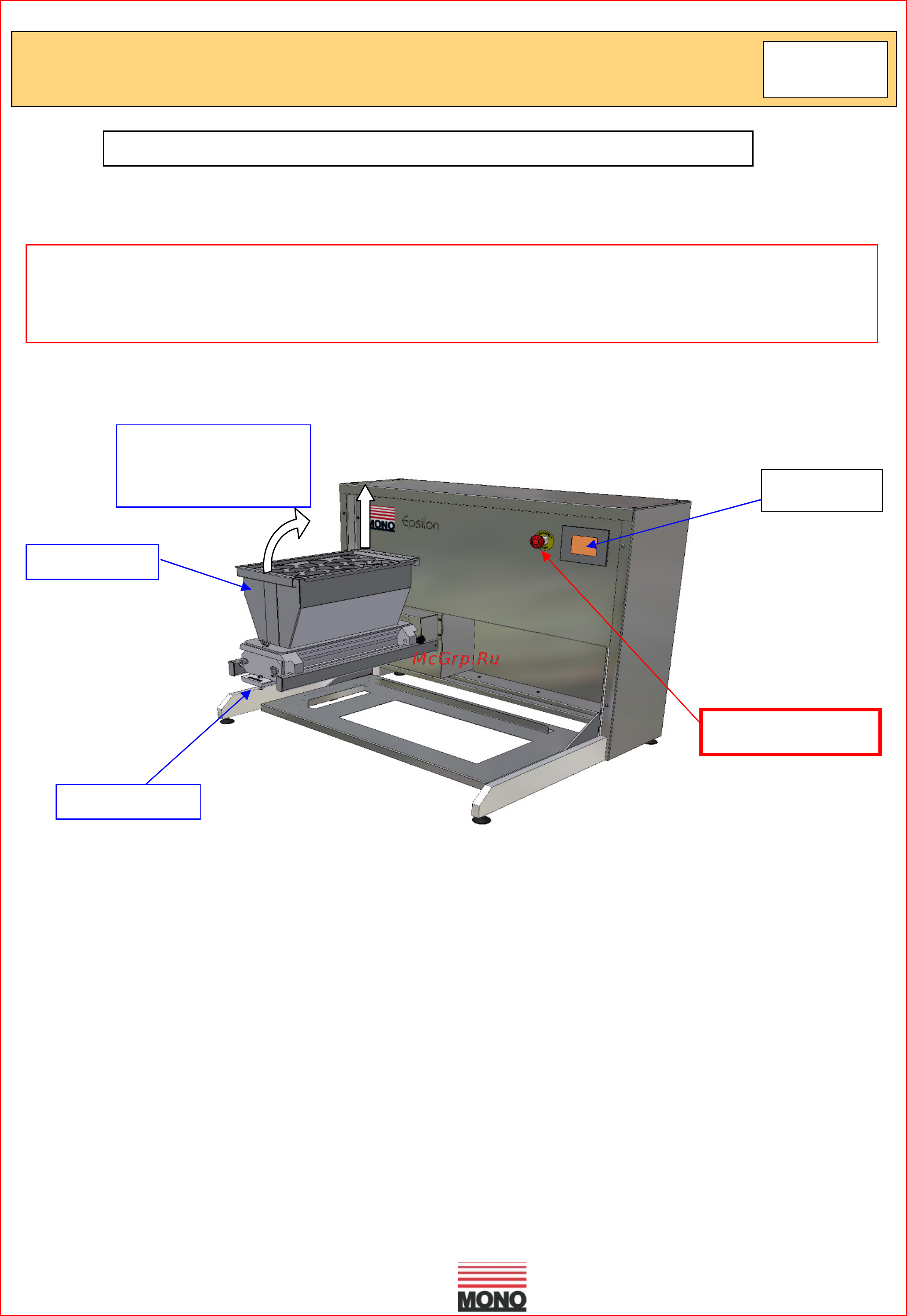

TEMPLATE
HOPPER
REMOVE GUARD TO FILL
HOPPER.
REPLACE CORRECTLY.
(MACHINE WILL NOT OPERATE WITHOUT
THIS GUARD IN POSITION)
SCREEN
STOP BUTTON
It is recommended that when heavy mixes are used, the inside of the hopper should be
coated with vegetable oil and for lighter mixes such as meringue, dampen with water. The oil
or water will help the mix to settle down the hopper walls and prevent air being sucked in.
EPSILON
NOTE: THIS MACHINE IS FOR USE WITH SOFT DOUGH ONLY
