Mono Epsilon 400 [17/53] Table adjustments

FG080 –EPSILON 07-12 RAC

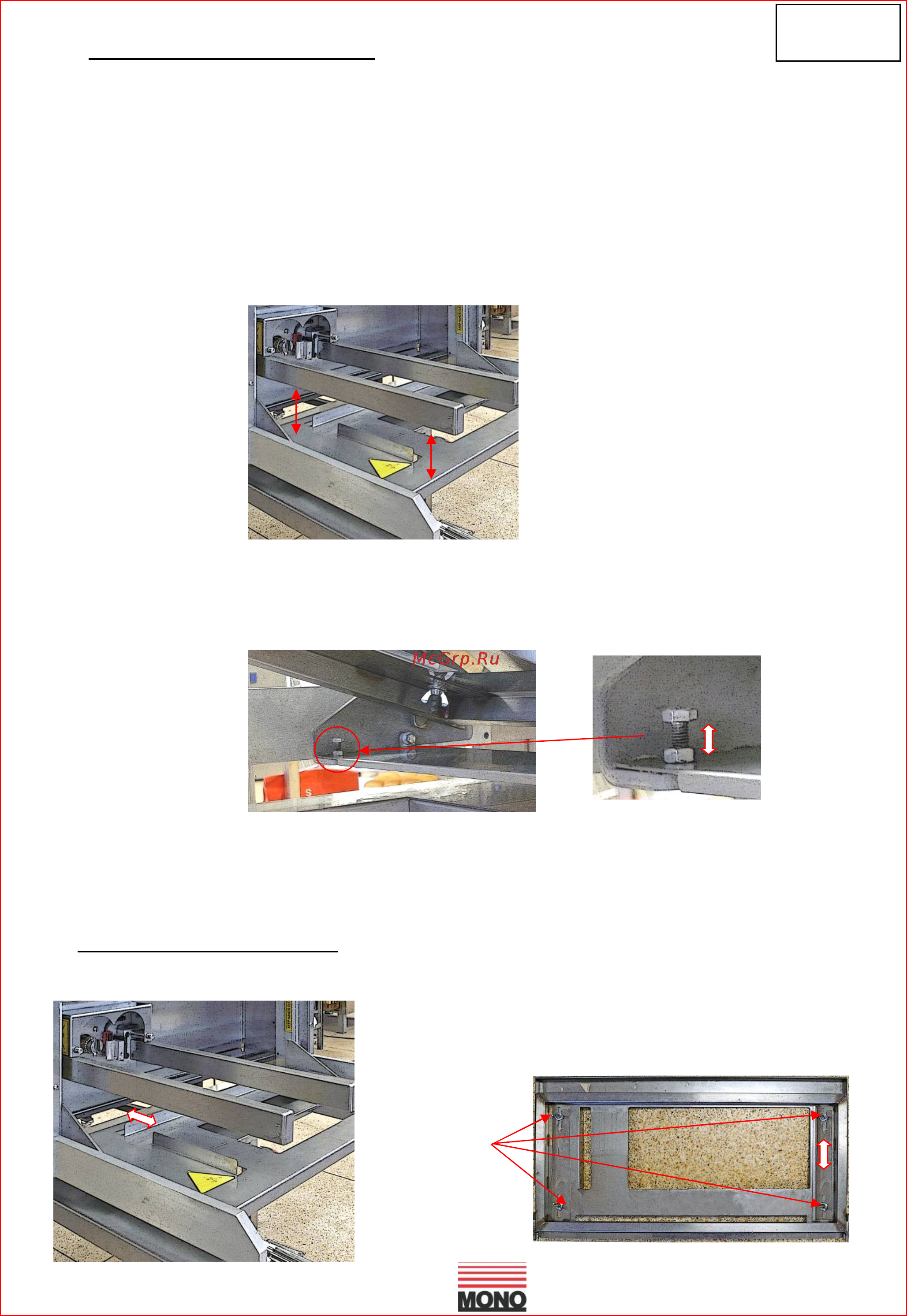

TABLE ADJUSTMENTS

It is important that the table is parallel with the hopper.

(If this is not correct the nozzles will not be the same distance from the trays and the

deposits will differ across the tray).

Measure the distance at “A” and “B” below and check that they are the same.

This should be checked with the hopper bars positioned at both the full left position and

the full right position.

If not the same, an adjustment can be made by raising or lowering the adjusters under

the table. There is one each side to allow the table to be adjusted evenly.

Lift the front edge of the table and, with a suitable spanner, release the locking nut. screw

the adjuster bolt up or down and then lock it in position with the locking nut.

TRAY GUIDE ADJUSTMENT

“A”

“B”

This allows different width trays to be accommodated.

To adjust the position of the back guide, remove the

table and turn it over. Loosen the thumb nuts and slide

the sheet across to the desired position. Tighten the

nuts and replace the table.

NUTS

EPSILON
