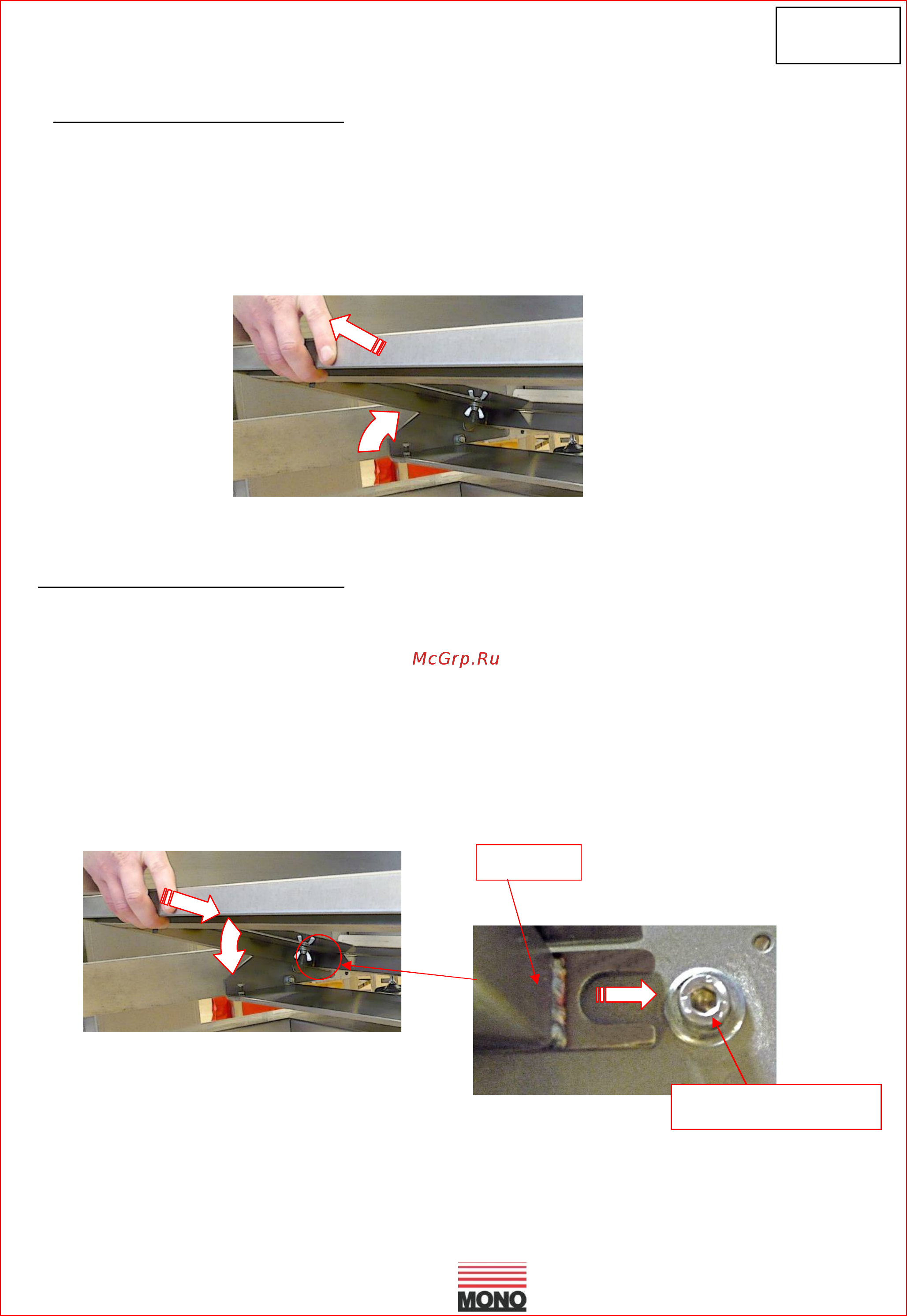

To remove the table for cleaning:

1. Push the table down to its lowest level.

2. Lift the front edge and lift the table towards you.

The table will release from the back pins and can be placed in a washer for cleaning.

To replace the table after cleaning:

1. Hold table with the front edge raised and engage the slots over the pin on both sides.

2. Lower the table front edge.

When in the correct position the table will not slide forward.

TABLE

LOCATING PIN
