Promarker
Operation Manual
09/01/2012 Trotec Produktions- und Vertriebs GmbH_Linzer Strasse 156, A-4600 Wels, Austria, Technical Support 22 / 43
tel_+43 (0)7242 239-7000, fax_+43 (0)7242 239-7380, e-mail: techsupport@troteclaser.com

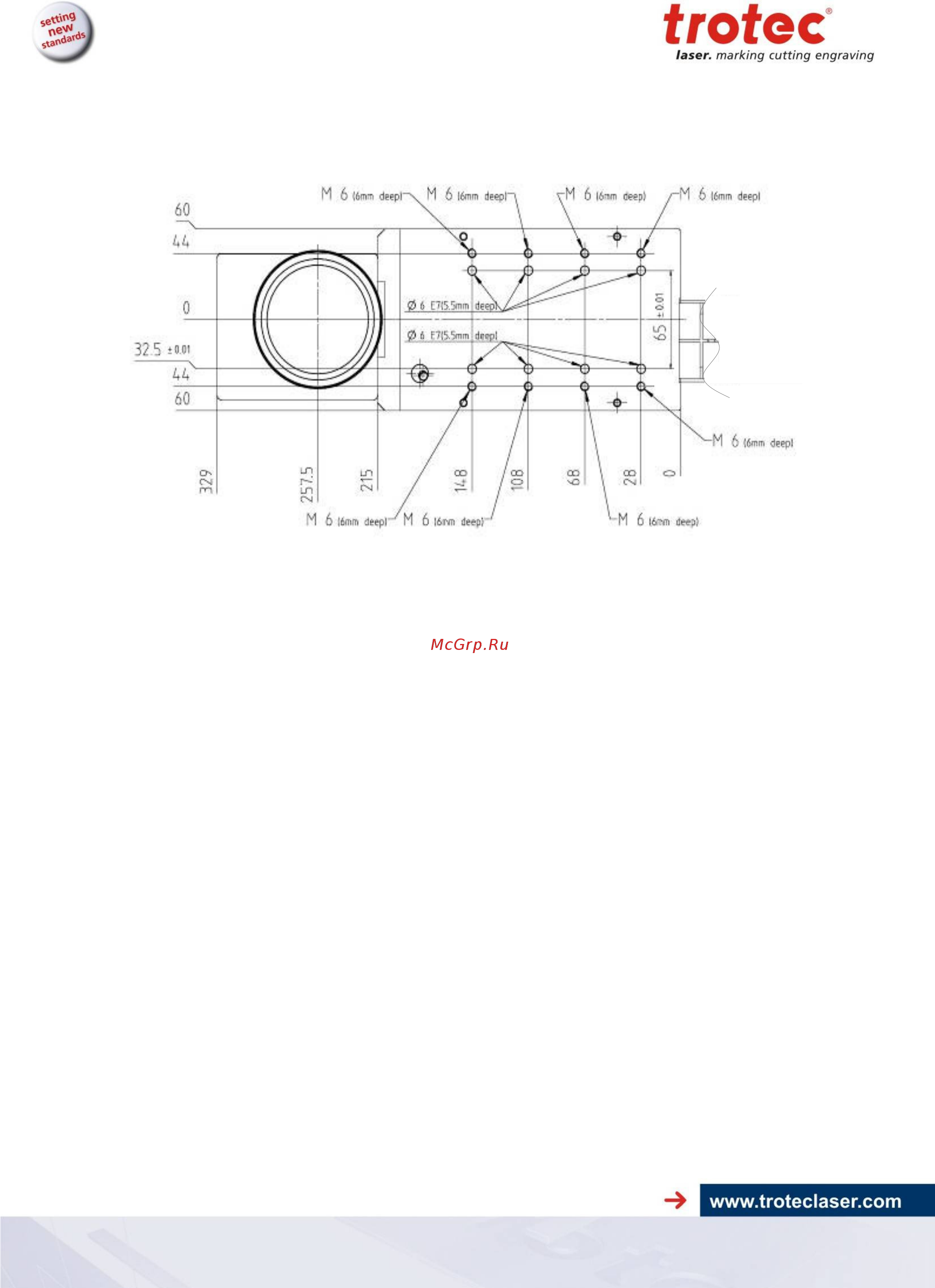

The following diagram illustrates the marking head hole pattern when
used for direct installation without the feet.
Alignment
The focal plane of the Promarker lies parallel to the marking head
base plate. When installing the marking head it is therefore important
to ensure that the marking head base plate is aligned as parallel as
possible to the intended processing plane. Otherwise uneven results
will be produced on the marking field as a result of the changing focal
position.
In order to adjust the focal position, the distance between the object to
be marked and the marking head may be altered.
Clearance holes 6 mm in diameter are located adjacent to the M6
threaded holes in the marking head base place in order to aid the
precise alignment of the marking head.
Motorized Z-Axis
For mounting the marking head on the motorized Z-Axis you have to
remove the two mounting feet and fix it on the axis plate.
