Promarker
Operation Manual
09/01/2012 Trotec Produktions- und Vertriebs GmbH_Linzer Strasse 156, A-4600 Wels, Austria, Technical Support 25 / 43
tel_+43 (0)7242 239-7000, fax_+43 (0)7242 239-7380, e-mail: techsupport@troteclaser.com

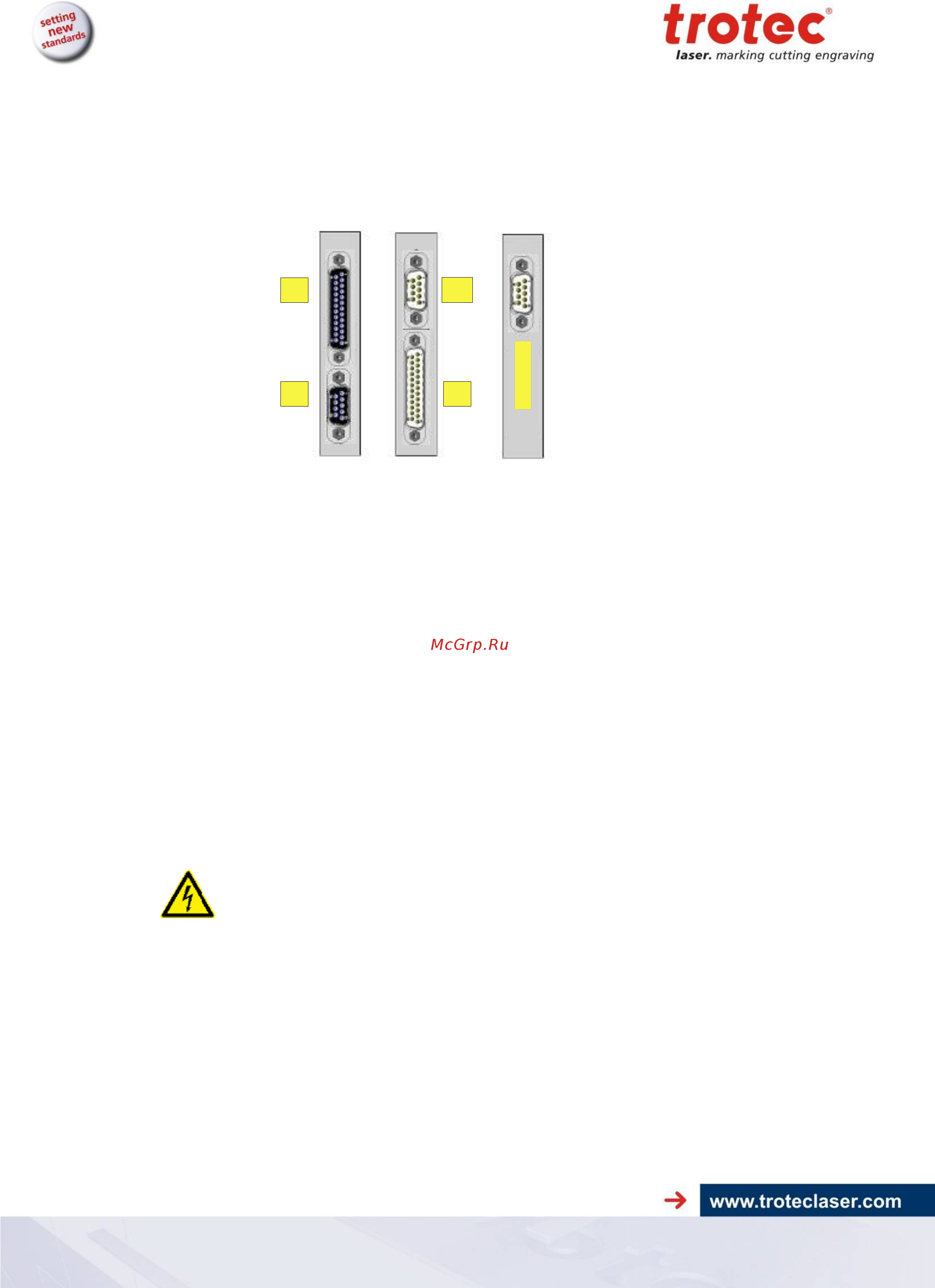

7.3.2 Overview - PC Interface (Reverse Side)
Connectors X93 and X103 are joined directly to one another via a
short cable.
Connector X53 is joined to X51 on the laser rack using the cable
supplied.
Connector X83 is connected to the cable from the laser rack. This
cable leads from the laser rack via the black tube to X82 on the
marking head.
7.3.3 Power Supply
The IEC connector is located on the reverse side of the laser rack for
the connection of the supplied IEC power cord.
Before putting the system into operation, it is essential to check
whether the laser rack is configured to the available supply voltage
and frequency.
The configuration of the laser rack is given on the type plate or
warning sign above the IEC connector.
The laser rack is fitted with different main fuses depending on the
configured supply voltage:
115V AC - 1 X 6.3 A “T” speed/time-delay
230V AC - 2 x 4 A “T” speed/time-delay
The main fuses are located behind the cover, immediately adjacent to
the IEC connector.
X53
X93
X103
X83
Galvo
controller
card
Slot combiner
print
COM FL
Slot cover
plate 9pin
