Promarker
Operation Manual
09/01/2012 Trotec Produktions- und Vertriebs GmbH_Linzer Strasse 156, A-4600 Wels, Austria, Technical Support 21 / 43
tel_+43 (0)7242 239-7000, fax_+43 (0)7242 239-7380, e-mail: techsupport@troteclaser.com
7 Installation
7.1 Installation Location
The installation location must:
• have a non-fluctuating power supply
• be vibration free
• have sufficient air supply for the laser rack and PC
7.2 Mechanical Installation
7.2.1 Installation of the Marking Head
The correct, stable and reproducible alignment of the marking head in
relation to the workpiece to be marked is a prerequisite for faultless
marking results. The marking head should therefore be installed with
appropriate care.
Mounting
The marking head may be mounted either from the top using the
supplied feet or from below using the hole pattern on the base plate.
The feet may be assembled in various positions on the marking head
base plate. The feet may be disassembled if they are not required.
The marking head should be secured tightly. The support bracket
should not be subject to any vibrations during operation. In order to
avoid damaging the lens, keep the protective cap on the lens during
installation.

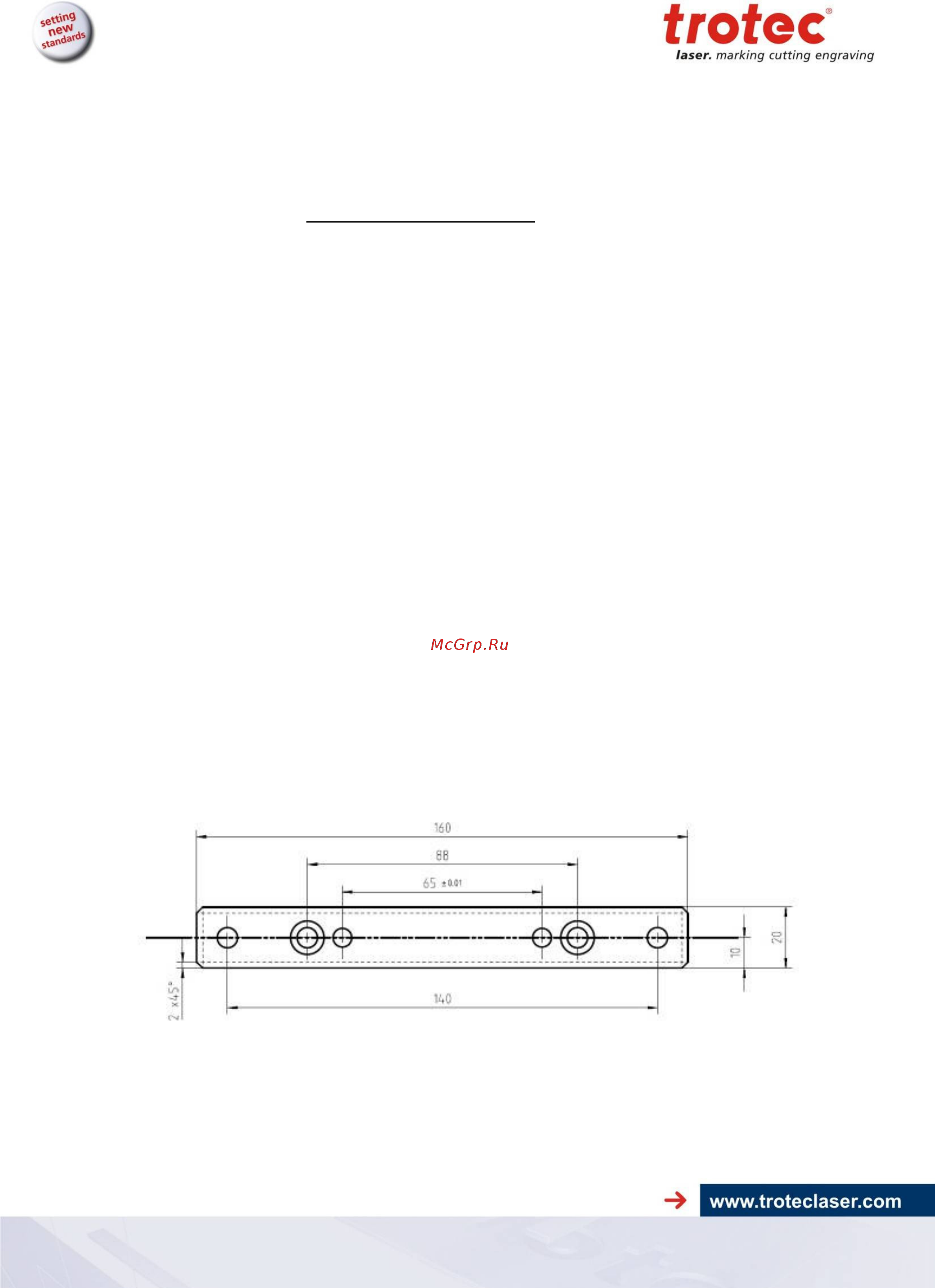

The following diagram illustrates the hole pattern for the feet. The
marking head is secured using the two mounting feet through holes
6.6 mm in diameter (designed for M6 screws).
