Promarker
Operation Manual
09/01/2012 Trotec Produktions- und Vertriebs GmbH_Linzer Strasse 156, A-4600 Wels, Austria, Technical Support 24 / 43
tel_+43 (0)7242 239-7000, fax_+43 (0)7242 239-7380, e-mail: techsupport@troteclaser.com
7.3 Electrical Installation
Following the mechanical installation of the marking head, laser rack
and PC, the components must be connected to one another
electrically.
(The laser rack and marking head are already connected to one
another on delivery.)
The peripherals (power supply, external control and safety signals,
etc.) are then connected via the laser rack and PC interfaces.
All connectors are clearly identified in order to facilitate the electrical
installation. The connector marked X43 belongs to the socket with the
same denotation.
The connector denotations are also coded. The last digit of the
connector denotation identifies the respective hardware components.
Therefore:
X …1 Laser rack
X …2 Marking head
X …3 PC interfaces

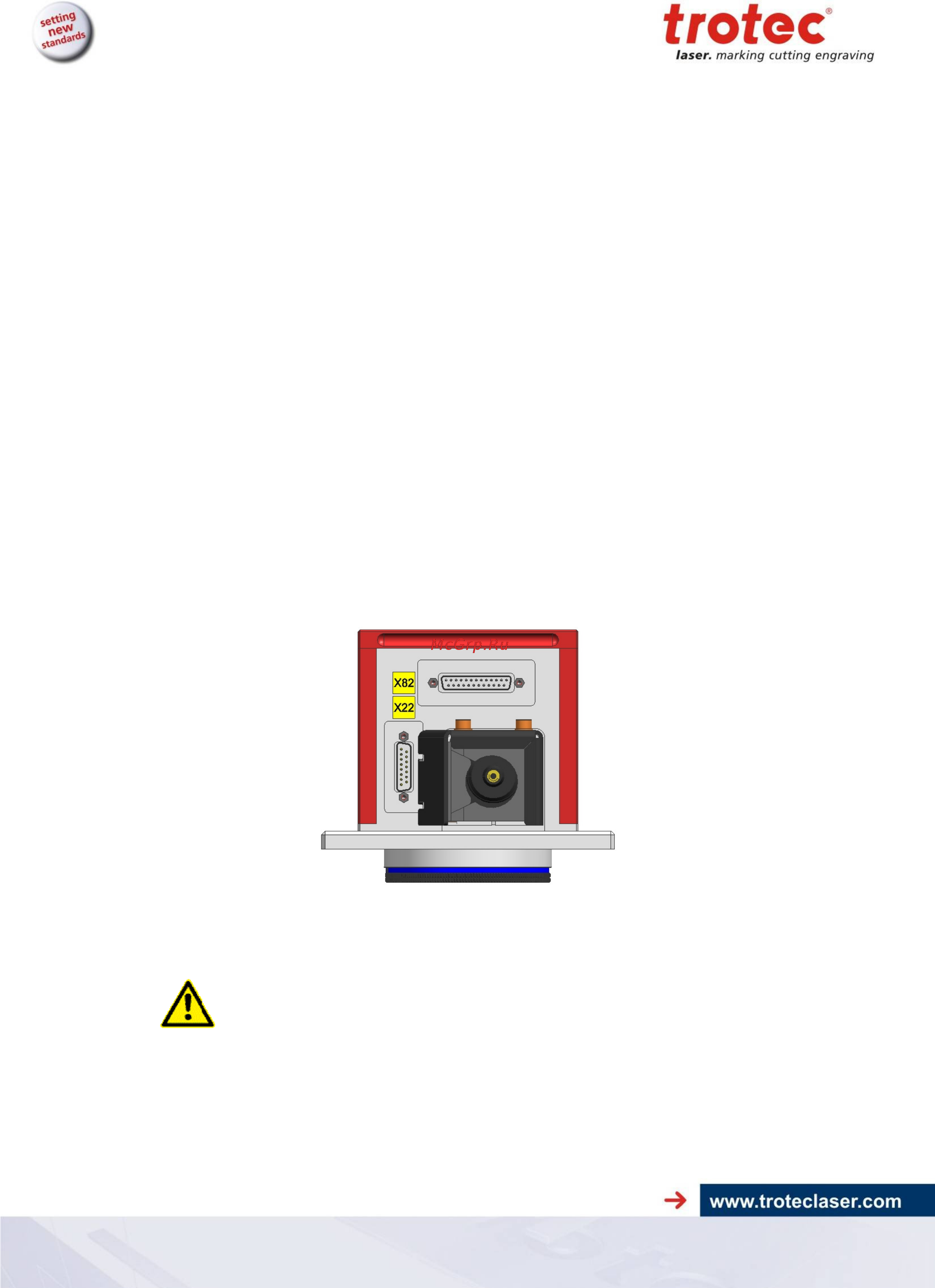

7.3.1 Overview - Marking Head Interface (Reverse Side)
The cables are already connected to the marking head on delivery.
The fibre cable should only be disconnected from the marking head by
trained service personnel.
Before working on the system, remove the power plug!
