Promarker
Operation Manual
09/01/2012 Trotec Produktions- und Vertriebs GmbH_Linzer Strasse 156, A-4600 Wels, Austria, Technical Support 26 / 43
tel_+43 (0)7242 239-7000, fax_+43 (0)7242 239-7380, e-mail: techsupport@troteclaser.com

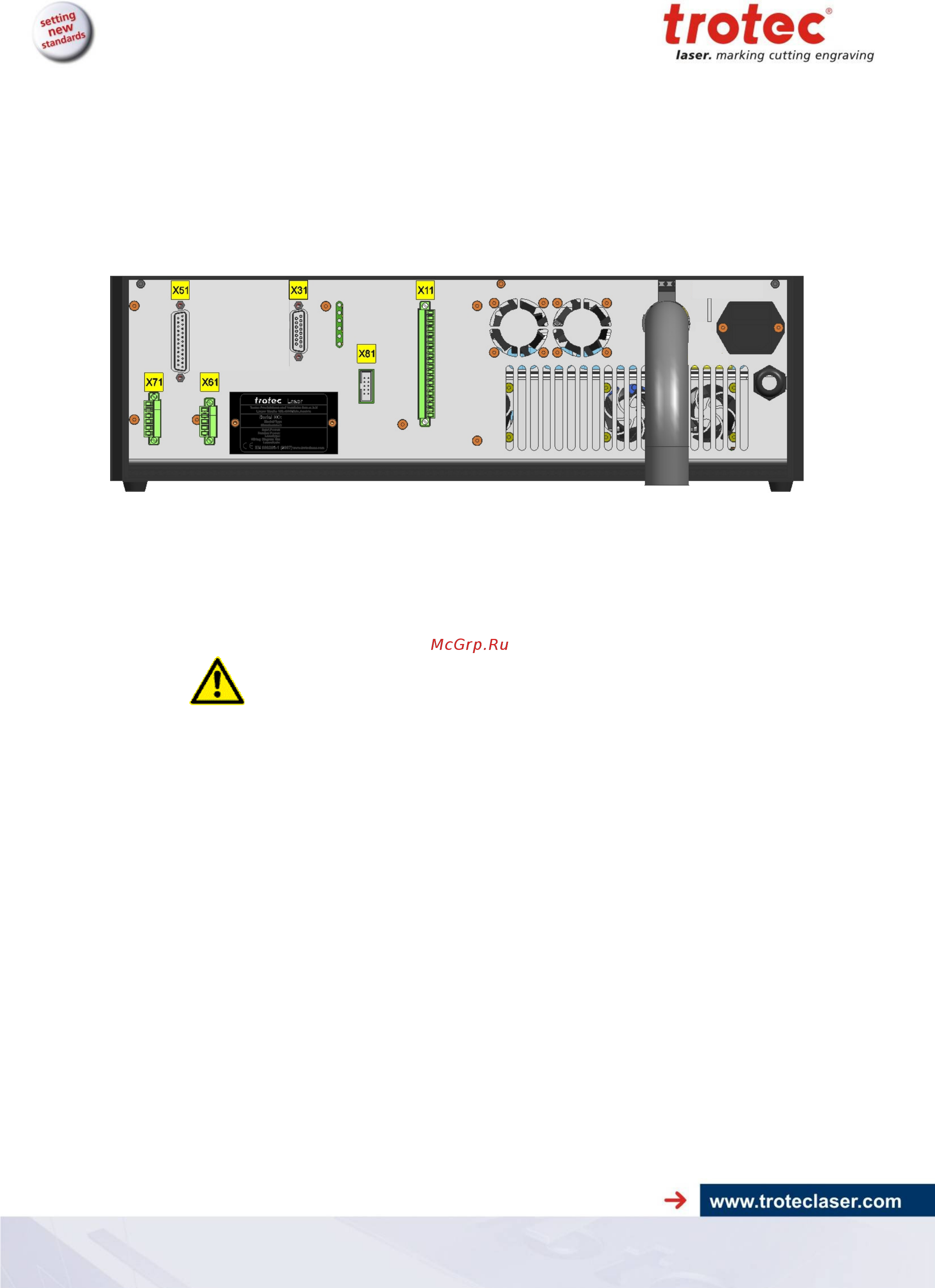

7.3.4 Overview - Laser Rack Interface (Reverse Side)
Before the laser marker can be put into operation, the external safety
circuits and the external start and stop signals must be connected.
When making these connections, the operator must ensure that all
safety circuits comply with the respective valid national standards and
guidelines for the use of laser devices. Otherwise the device may
cause personal injury or material damage.
The following connectors are available on the laser rack:
•
X11 – Emergency Stop / Interlock / ext. Messages
The X11 connector enables the connection of external safety
circuits, additional emergency stop circuits and external warning
lamps.
The digital 24V inputs should only be controlled by isolated
contacts with the 24V pin 13 on X11. The input of signals with any
other reference potential could result in damage to the respective
inputs.
•
X31 – External Panel
The connector X31 may be used to connect an external control
panel such as that located on the front of the laser rack.
If no external panel is connected, the supplied connector must be
used with the bridging devices.
X51
Laser control. This is connected to X53 on the Galvo controller
card.
Only use the original cable supplied.
•
X61 – Extraction System
This connector is used to control, start and stop a Trotec extraction
unit.
Only use the original cable supplied.
