OPTICHILL Chillers
Chillers
14
Installation & Maintenance : 6564868 08/2008

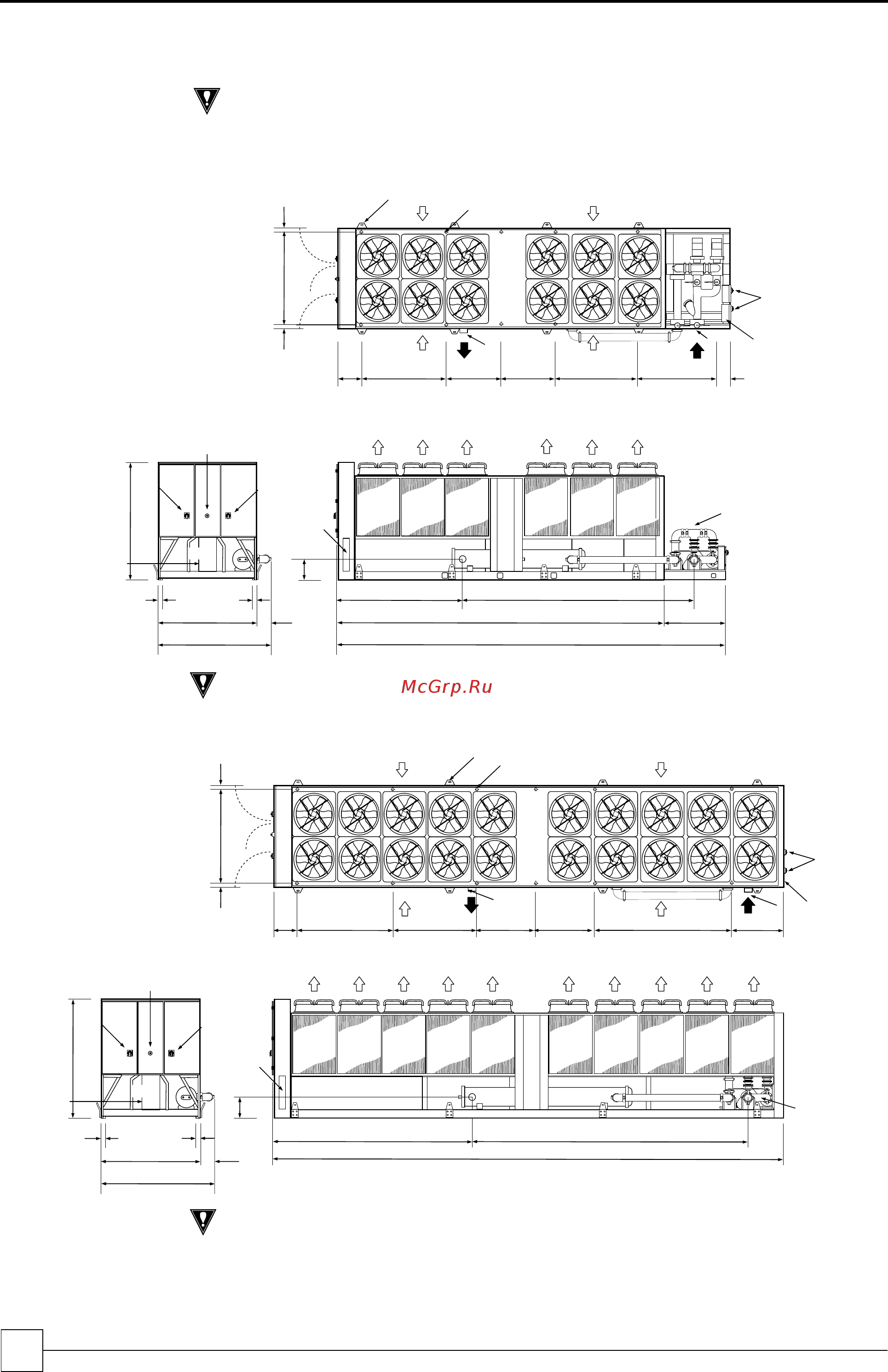

Dimensional Data
IMPORTANT
The following information is for general guidance; refer to the certified drawings
provided for installation.
UNITS FITTED WITH OPTIONAL PUMP PACKAGE
8 - 12 Fan Units (mm)
A
(1)
FE
C
90
D
(1)
(2)
(3)
(3)
(4)
(9)
(8)
(6)
(6)
(5)
(10)
(7)
500 G1
K
H
275
(10)
J
1400
B
90
370
2200
L
C1
(1)
(12)
2100
50
50
(11)
IMPORTANT
Pump package assembly and connecting evaporator pipework supplied loose.
14 - 20 Fan Units (mm)
A
(1)
2000
F
E
C
90
90
D
500 G1
J
G2
K
(1)
(2)
(3)
(3)
(4)
(9)
(8)
(6)
(6)
(5)
(10)
(10)
H
(7)
L
B
(1)
(12)
370
2100
50
50
(11)
IMPORTANT
Connecting evaporator pipework supplied loose.
