Installation Data

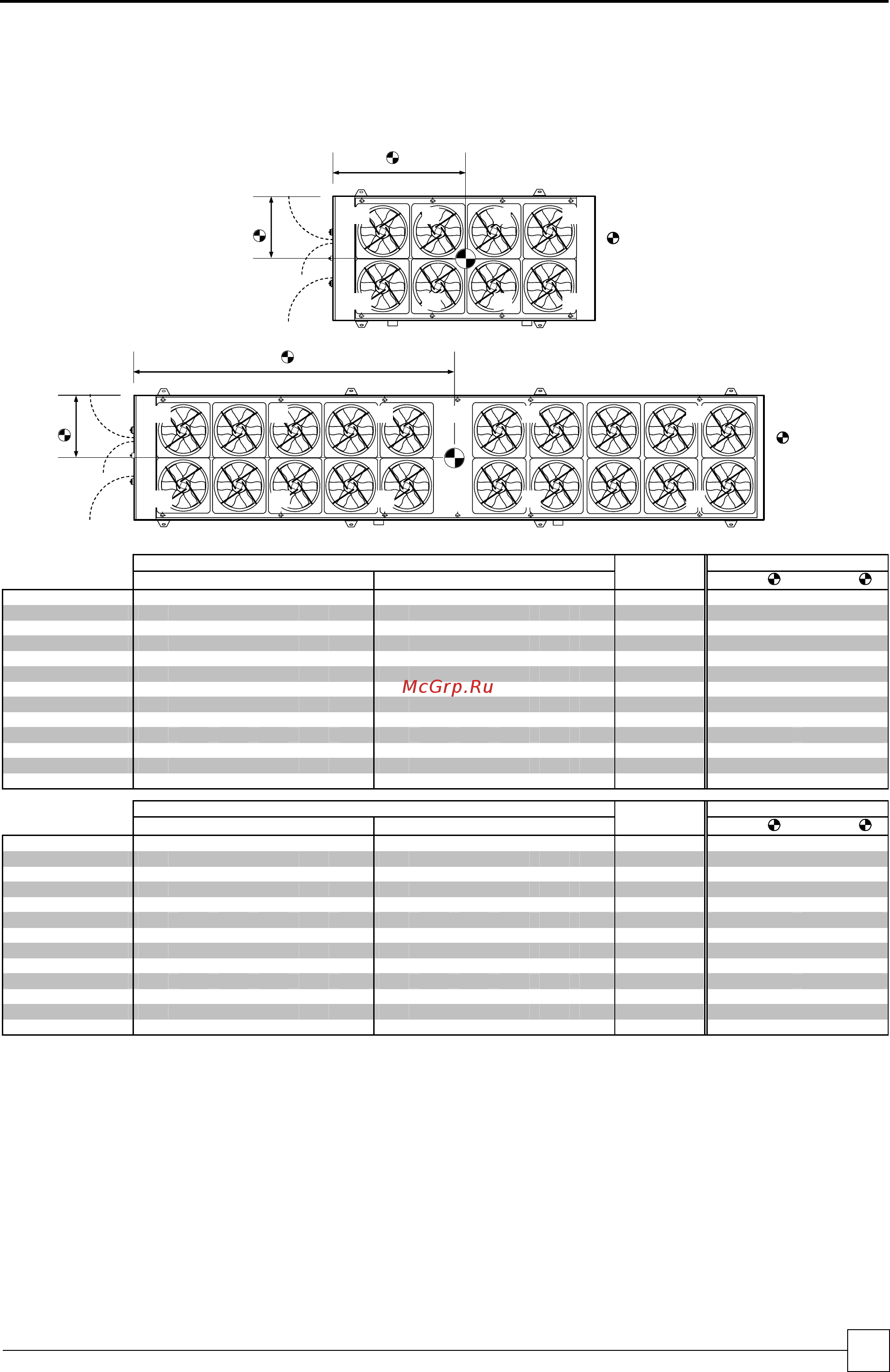

WEIGHTS, POINT LOADINGS & CENTRE OF GRAVITY (C OF G) - NO PUMPS
High Efficiency
1
2
L1
R1
L2
R
2
L3
R3
L4
R4
= (C of G)
1
2
L1 L
2
L3 L4
R1 R
2
R3 R4
L5 L
6
R5 R
6
= C of G
Point Loadings (kg) C of G (mm)
L1 L2 L3 L4 L5 L6 R1 R2 R3 R4 R5 R6
Operating
Weight (kg)
1 2
OPC500HED8 650 680 670 470 (1) (1) 830 860 850 590 (1) (1) 5600 1220 2225
OPC525HED8 660 690 680 470 (1) (1) 830 870 850 590 (1) (1) 5640 1220 2225
OPC550HED8 660 690 680 470 (1) (1) 830 870 860 590 (1) (1) 5650 1220 2230
OPC600HED10 750 880 770 370 (1) (1) 920 1080 950 450 (1) (1) 6170 1205 2495
OPC650HED10 760 900 790 380 (1) (1) 1010 1190 1040 500 (1) (1) 6570 1245 2515
OPC700HED12 760 630 830 760 360 (2) 950 800 1040 950 450 (2) 7530 1220 3130
OPC750HED12 810 680 880 810 380 (2) 1010 840 1100 1010 480 (2) 8000 1215 3230
OPC800HED12 810 680 880 810 390 (2) 1010 850 1100 1010 480 (2) 8020 1215 3225
OPC850HED12 820 690 900 820 390 (2) 1070 890 1170 1070 510 (2) 8330 1235 3250
OPC900HED14 820 890 970 860 370 (2) 1040 1130 1240 1100 480 (2) 8900 1225 3510
OPC950HED14 830 900 980 870 380 (2) 1050 1140 1250 1110 480 (2) 8990 1225 3525
OPC1000HED16 900 910 1000 910 490 (2) 1130 1140 1260 1140 610 (2) 9490 1220 4290
OPC1100HED16 900 910 1000 910 490 (2) 1130 1140 1260 1140 610 (2) 9490 1220 4295
Point Loadings (kg) C of G (mm)
L1 L2 L3 L4 L5 L6 R1 R2 R3 R4 R5 R6
Operating
Weight (kg)
1 2
OPC500HEDQ10 800 940 820 390 (1) (1) 960 1130 990 470 (1) (1) 6500 1200 2520
OPC525HEDQ10 800 940 830 390 (1) (1) 960 1140 1000 470 (1) (1) 6530 1200 2520
OPC550HEDQ10 800 950 830 400 (1) (1) 970 1140 1000 480 (1) (1) 6570 1200 2520
OPC600HEDQ10 800 950 830 400 (1) (1) 970 1140 1000 480 (1) (1) 6570 1195 2520
OPC650HEDQ10 810 950 830 400 (1) (1) 970 1140 1000 480 (1) (1) 6580 1195 2525
OPC700HEDQ14 790 860 940 830 360 (2) 970 1050 1150 1020 450 (2) 8420 1205 3440
OPC750HEDQ14 840 910 1000 880 390 (2) 1020 1110 1210 1080 470 (2) 8910 1200 3510
OPC800HEDQ14 850 930 1010 900 390 (2) 1070 1170 1270 1130 490 (2) 9210 1220 3525
OPC850HEDQ14 850 930 1010 900 390 (2) 1070 1170 1280 1130 490 (2) 9220 1220 3525
OPC900HEDQ16 930 940 1040 940 510 (2) 1160 1170 1290 1170 630 (2) 9780 1215 4295
OPC950HEDQ16 940 950 1050 950 510 (2) 1170 1180 1300 1180 630 (2) 9860 1210 4305
OPC1000HEDQ18 970 1040 1110 1010 540 (2) 1180 1280 1360 1240 660 (2) 10390 1205 4485
OPC1100HEDQ18 970 1050 1110 1010 540 (2) 1190 1280 1360 1240 670 (2) 10420 1205 4485
(1) Only 8 fixing and loading points to this model.
(2) Only 10 fixing and loading points to this model.
(3) Based on standard unit, for units fitted with options, please contact Airedale.
(4) Operating weight includes refrigerant charge and system water volume.
